HS16-3 Series

Catalog

SWITCH ROTARY 2-11POS 12A 125V

Part	Panel Cutout Dimensions [diameter]	Index Stops	Depth Behind Panel [custom]	Mounting Type	Number of Positions [Max]	Number of Positions [Min]	Circuit per Deck	Termination Style	Number of Poles per Deck	Contact Material	Actuator Type	Actuator Type [diameter]	Current Rating (Amps)	Number of Decks	Voltage Rating - AC	Actuator Length [x]	Angle of Throw	Contact Timing

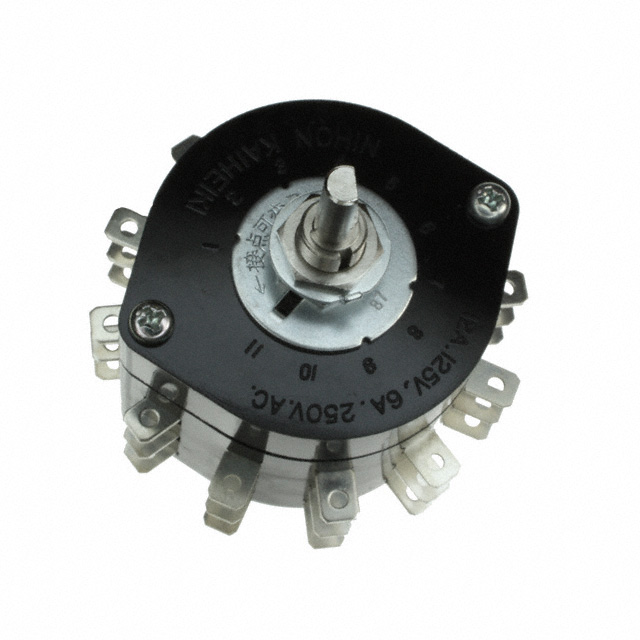

NKK Switches HS16-3SN	10.3 mm	Adjustable	51.5 mm	Panel Mount	11	2	SP11T	Solder Lug	1	Phosphor Bronze	Flatted	6 mm	12 A	3	125 V	15 mm	30 °	Shorting (MBB)
NKK Switches HS16-3/328	10.3 mm	Adjustable	51.5 mm	Panel Mount	11	2	SP11T	Solder Lug	1	Phosphor Bronze	Knurled	6 mm	12 A	3	125 V	15 mm	30 °	Non-Shorting (BBM)

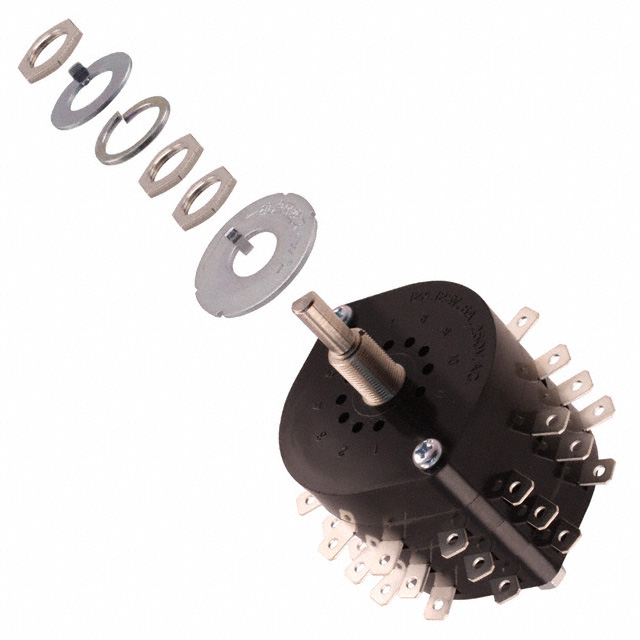

NKK Switches HS16-3N	10.3 mm	Adjustable	51.5 mm	Panel Mount	11	2	SP11T	Solder Lug	1	Phosphor Bronze	Flatted	6 mm	12 A	3	125 V	15 mm	30 °	Non-Shorting (BBM)
NKK Switches HS16-3S	10.3 mm	Adjustable	51.5 mm	Panel Mount	11	2	SP11T	Solder Lug	1	Phosphor Bronze	Knurled	6 mm	12 A	3	125 V	15 mm	30 °	Shorting (MBB)
NKK Switches HS16-3S/U	10.3 mm	Adjustable	51.5 mm	Panel Mount	11	2	SP11T	Solder Lug	1	Phosphor Bronze	Knurled	6 mm	12 A	3	125 V	15 mm	30 °	Shorting (MBB)
