Jsx0 Series Series

JSX08001SAQNL

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

JSX08001SAQNL

Part	Contact Timing	Current Rating (Amps)	Voltage Rating - DC	Circuit	Actuator Length [z]	Actuator Material	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Actuator Type	Contact Finish	Mounting Type	Switch Function	Electrical Life
Littelfuse/Commercial Vehicle Products JSX08001SAQNL	Not Specified	10 mA	5 V	SPDT	1.65 mm	Nylon 4/6 Polyamide (PA46)	Gull Wing	70 °C	-25 °C	Beryllium Copper	Standard	Silver	Surface Mount Right Angle	On-Mom	100000 Cycles

Catalog

JSX08001SAQNL

Key Features

• Low profile

• SPDT momentary action

• Long electrical and mechanical life

Description

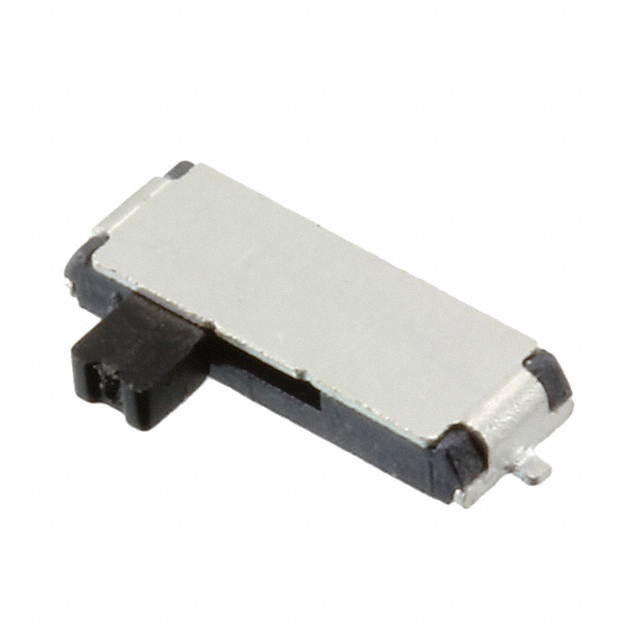

JSX switches from C&K feature a low profile, SPDT momentary action and a long electrical and mechanical life, making them perfect for designers of 0n/0ff touch screens, handheld games and remote controls.
