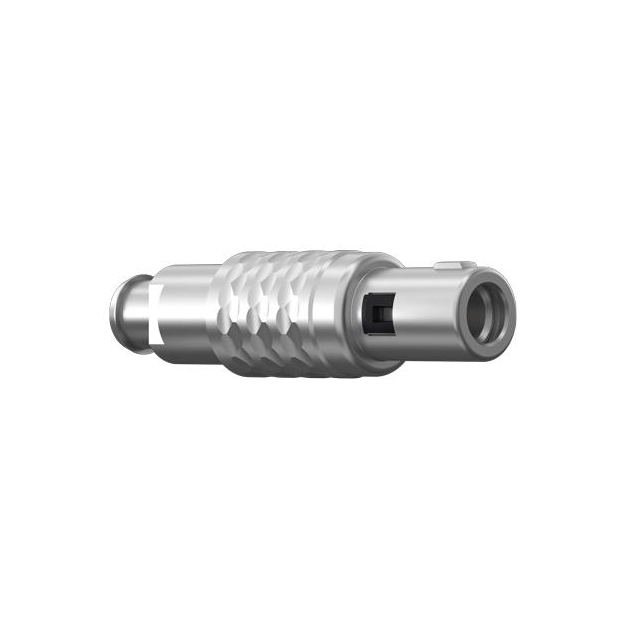

S21MA7-P Series
Manufacturer: ODU
Beta
⌘K
CONN PLUG MALE 8P GOLD SLDR CUP
| Part | Fastening Type | Cable Opening | Cable Opening [Max] | Cable Opening [Min] | Mounting Type | Ingress Protection | Orientation | Number of Positions | Shell Size - Insert | Current Rating (Amps) | Color | Operating Temperature [Max] | Operating Temperature [Min] | Connector Type | Contact Finish - Mating | Backshell Material, Plating | Contact Material | Features | Shell Material | Shielding | Primary Material | Insert Material | Applications | Cable Opening [Max] | Cable Opening [Min] | Cable Opening [Max] | Termination | Voltage Rating | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Push-Pull | 4 mm 5.2 mm | 0.205 in | 0.157 in | Free Hanging (In-Line) | IP50 - Dust Protected | A | 8 | 1 | 3.85 A | Gray | 120 °C | -50 °C | Plug Male Pins | Gold | Polysulfone (PSU) | Brass | Backshell Strain Relief | Polysulfone (PSU) | Unshielded | Plastic | Polyetheretherketone (PEEK) | Industrial Medical Military Testing Equipment & Measurement | |||||||
Push-Pull | 0.256 in | 0.209 in | Free Hanging (In-Line) | IP50 - Dust Protected | A | 7 | 1 | 4.55 A | Gray | 120 °C | -50 °C | Plug Male Pins | Gold | Polysulfone (PSU) | Brass | Backshell Strain Relief | Polysulfone (PSU) | Unshielded | Plastic | Polyetheretherketone (PEEK) | Industrial Medical Military Testing Equipment & Measurement | 6.5 mm | 5.3 mm | ||||||
Push-Pull | 0.154 in | 0.106 in | Free Hanging (In-Line) | IP50 - Dust Protected | A | 7 | 1 | 4.55 A | Gray | 120 °C | -50 °C | Plug Male Pins | Gold | Polysulfone (PSU) | Brass | Backshell Strain Relief | Polysulfone (PSU) | Unshielded | Plastic | Polyetheretherketone (PEEK) | Industrial Medical Military Testing Equipment & Measurement | 2.7 mm | 3.9 mm | ||||||
Push-Pull | 0.154 in | 0.106 in | Free Hanging (In-Line) | IP50 - Dust Protected | A | 10 | 1 | 2.75 A | Gray | 120 °C | -50 °C | Plug Male Pins | Gold | Polysulfone (PSU) | Brass | Backshell Strain Relief | Polysulfone (PSU) | Unshielded | Plastic | Polyetheretherketone (PEEK) | Industrial Medical Military Testing Equipment & Measurement | 2.7 mm | 3.9 mm | ||||||
Push-Pull | 0.154 in | 0.106 in | Free Hanging (In-Line) | IP50 - Dust Protected | A | 14 | 1 | 2.5 A | Gray | 120 °C | -50 °C | Plug Male Pins | Gold | Polysulfone (PSU) | Brass | Backshell Strain Relief | Polysulfone (PSU) | Unshielded | Plastic | Polyetheretherketone (PEEK) | Industrial Medical Military Testing Equipment & Measurement | 2.7 mm | 3.9 mm | ||||||
Push-Pull | 0.154 in | 0.106 in | Free Hanging (In-Line) | IP50 - Dust Protected | A | 8 | 1 | 3.85 A | Gray | 120 °C | -50 °C | Plug Male Pins | Gold | Polysulfone (PSU) | Brass | Backshell Strain Relief | Polysulfone (PSU) | Unshielded | Plastic | Polyetheretherketone (PEEK) | Industrial Medical Military Testing Equipment & Measurement | 2.7 mm | 3.9 mm | ||||||
Push-Pull | 0.154 in | 0.106 in | Free Hanging (In-Line) | IP50 - Dust Protected | A | 8 | 1 | 3.85 A | Gray | 120 °C | -50 °C | Plug Male Pins | Gold | Polysulfone (PSU) | Brass | Backshell Strain Relief | Polysulfone (PSU) | Unshielded | Plastic | Polyetheretherketone (PEEK) | Industrial Medical Military Testing Equipment & Measurement | 2.7 mm | 3.9 mm | ||||||
Push-Pull | 4 mm 5.2 mm | 0.205 in | 0.157 in | Free Hanging (In-Line) | IP50 - Dust Protected | A | 5 | 1 | 10 A | Gray | 120 °C | -50 °C | Plug Male Pins | Gold | Polysulfone (PSU) | Brass | Backshell Strain Relief | Polysulfone (PSU) | Unshielded | Plastic | Polyetheretherketone (PEEK) | Industrial Medical Testing Equipment & Measurement | Crimp | 25 V | UL94 V-0 | ||||
Push-Pull | 0.256 in | 0.209 in | Free Hanging (In-Line) | IP50 - Dust Protected | A | 8 | 1 | Gray | 120 °C | -50 °C | Plug Male Pins | Gold | Polysulfone (PSU) | Brass | Backshell Strain Relief | Polysulfone (PSU) | Unshielded | Plastic | Polyetheretherketone (PEEK) | Industrial Medical Military Testing Equipment & Measurement | 6.5 mm | 5.3 mm | |||||||
Push-Pull | 4 mm 5.2 mm | 0.205 in | 0.157 in | Free Hanging (In-Line) | IP50 - Dust Protected | A | 6 | 1 | 4.55 A | Gray | 120 °C | -50 °C | Plug Male Pins | Gold | Polysulfone (PSU) | Brass | Backshell Strain Relief | Polysulfone (PSU) | Unshielded | Plastic | Polyetheretherketone (PEEK) | Industrial Medical Military Testing Equipment & Measurement |
