045970 Series

Manufacturer: Molex

Catalog

CONN HD ARRAY PLUG 200P SMD GOLD

Part	Height Above Board	Height Above Board	Contact Finish Thickness	Contact Finish Thickness	Mated Stacking Heights	Connector Type	Contact Finish	Features	Number of Rows	Mounting Type	Pitch [x]	Pitch [x]	Number of Positions	Height Above Board [z]	Height Above Board [z]	Mated Stacking Heights [z]
Molex 0459702111	5.61 mm	0.221 "	0.76 Ám	30 Áin	7 mm 8 mm 8.5 mm 9.5 mm 10 mm	High Density Array Male	Gold	Board Guide	10	Surface Mount	0.05 in	1.27 mm
Molex 0459702117	5.61 mm	0.221 "	0.76 Ám	30 Áin	7 mm 8 mm 8.5 mm 9.5 mm 10 mm	High Density Array Male	Gold	Board Guide	10	Surface Mount	0.05 in	1.27 mm
Molex 0459702611	8.6 mm	0.339 in	0.76 Ám	30 Áin	10 mm 11 mm 11.5 mm 12.5 mm 13 mm	High Density Array Male	Gold	Board Guide	10	Surface Mount	0.05 in	1.27 mm

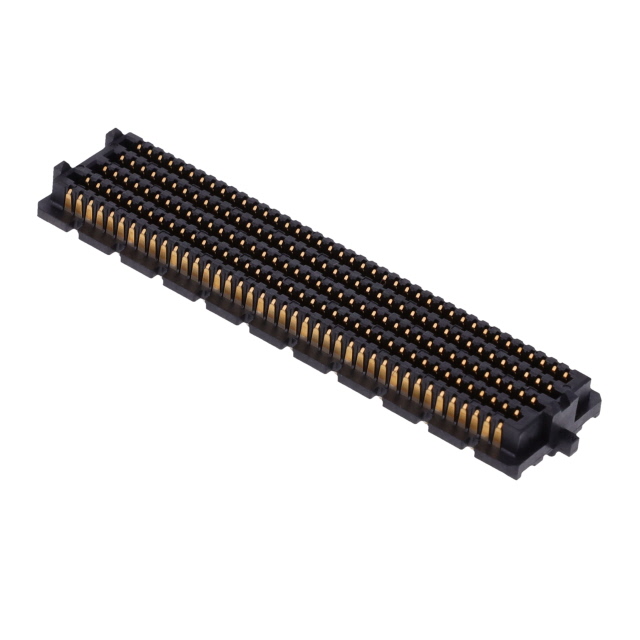

Molex 0459704115	5.61 mm	0.221 "	0.76 Ám	30 Áin	7 mm 8 mm 8.5 mm 9.5 mm 10 mm	High Density Array Male	Gold	Board Guide	10	Surface Mount	0.05 in	1.27 mm	400
Molex 0459704317	7.1 mm	0.28 in	0.76 Ám	30 Áin	8.5 mm 9.5 mm 10 mm 11 mm 11.5 mm	High Density Array Male	Gold	Board Guide	10	Surface Mount	0.05 in	1.27 mm	400
Molex 0459703181	5.61 mm	0.221 "	0.76 Ám	30 Áin	7 mm 8 mm 8.5 mm 9.5 mm 10 mm	High Density Array Male	Gold	Board Guide	8	Surface Mount	0.05 in	1.27 mm	240
Molex 0459704915			0.76 Ám	30 Áin	14 mm 15 mm 15.5 mm 16.5 mm 17 mm	High Density Array Male	Gold	Board Guide	10	Surface Mount	0.05 in	1.27 mm	400	12.62 mm	0.497 in

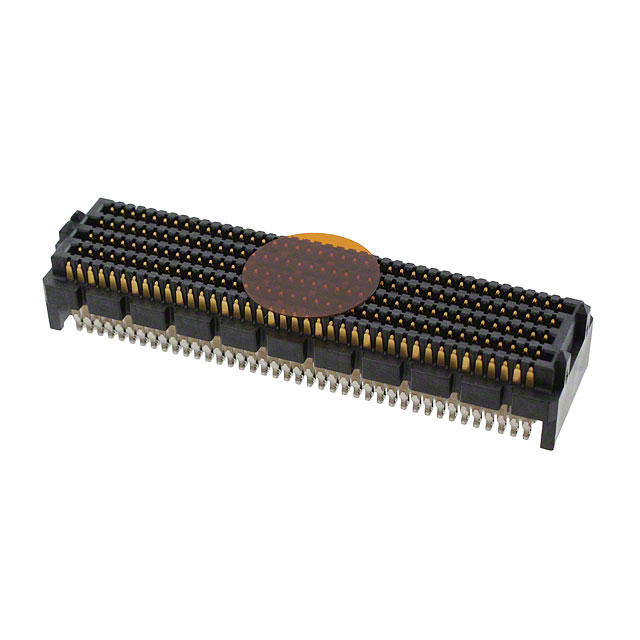

Molex 0459704715			0.76 Ám	30 Áin	12 mm 13 mm 13.5 mm 14.5 mm 15 mm	High Density Array Male	Gold	Board Guide	10	Surface Mount	0.05 in	1.27 mm	400	10.6 mm	0.417 in
Molex 0459703215	6.6 mm	0.26 "	0.76 Ám	30 Áin		High Density Array Male	Gold	Board Guide	10	Surface Mount	0.05 in	1.27 mm	400			8 mm 9 mm 9.5 mm 10.5 mm 11 mm
Molex 0459703915
