RJ4EW Series
Manufacturer: Nidec Components Corporation
Beta
⌘K

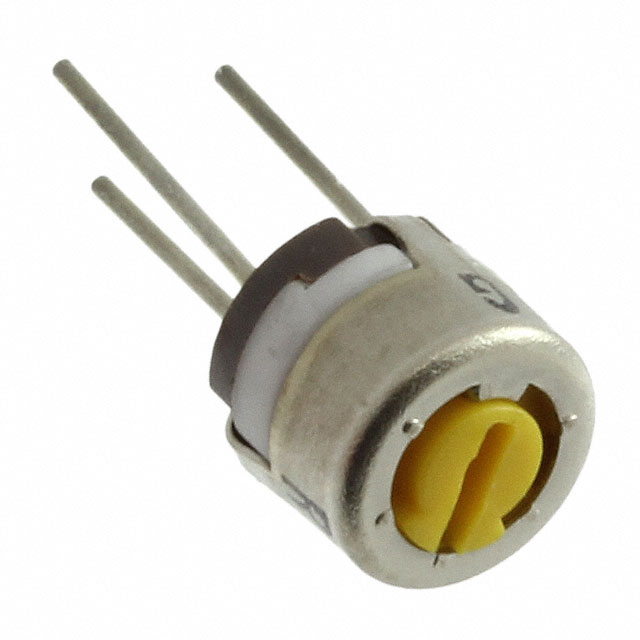

TRIMMER 5K OHM 0.5W PC PIN TOP
| Part | Number of Turns | Resistance | Mounting Type | Size / Dimension [diameter] | Size / Dimension [diameter] | Adjustment Type | Temperature Coefficient | Resistive Material | Power (Watts) | Power (Watts) | Termination Style | Tolerance | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Nidec Components Corporation | 1 | 5 kOhms | Through Hole | 4.9 mm | 0.193 in | Top Adjustment | 100 ppm/°C | Cermet | 0.5 W | 0.5 W | PC Pins | 10 % | ||||
Nidec Components Corporation | 1 | 2 MOhms | Through Hole | 4.9 mm | 0.193 in | Top Adjustment | 100 ppm/°C | Cermet | 0.5 W | 0.5 W | PC Pins | 10 % | ||||

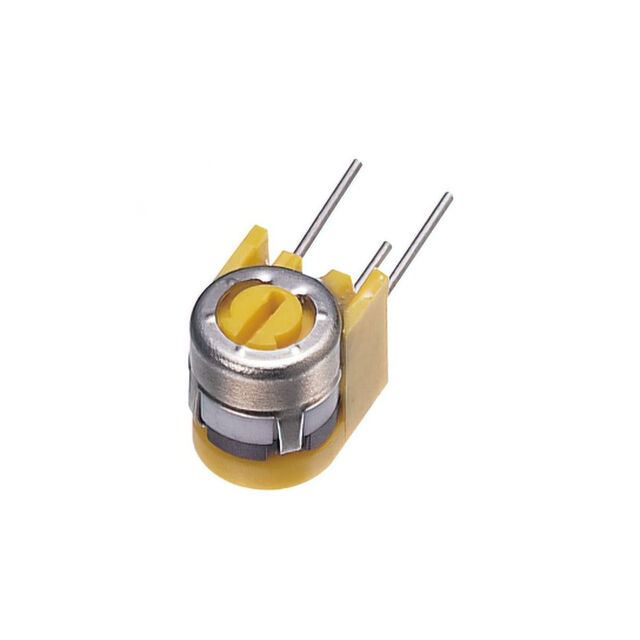

Nidec Components Corporation | 1 | 100 kOhms | Through Hole | Side Adjustment | 100 ppm/°C | Cermet | 0.5 W | 0.5 W | PC Pins | 10 % | 0.22 " | 0.197 in | 5.6 mm | 5 mm | ||
 Nidec Components Corporation | 1 | 1 MOhms | Through Hole | Side Adjustment | 100 ppm/°C | Cermet | 0.5 W | 0.5 W | PC Pins | 10 % | 0.22 " | 0.197 in | 5.6 mm | 5 mm | ||
Nidec Components Corporation | 1 | 500 Ohms | Through Hole | 4.9 mm | 0.193 in | Top Adjustment | 100 ppm/°C | Cermet | 0.5 W | 0.5 W | PC Pins | 10 % | ||||
Nidec Components Corporation | 1 | Through Hole | Side Adjustment | 100 ppm/°C | Cermet | 0.5 W | 0.5 W | PC Pins | 10 % | 0.22 " | 0.197 in | 5.6 mm | 5 mm | |||
Nidec Components Corporation | 1 | 2 kOhms | Through Hole | Side Adjustment | 100 ppm/°C | Cermet | 0.5 W | 0.5 W | PC Pins | 10 % | 0.22 " | 0.197 in | 5.6 mm | 5 mm | ||
Nidec Components Corporation | 1 | 50 kOhms | Through Hole | 4.9 mm | 0.193 in | Top Adjustment | 100 ppm/°C | Cermet | 0.5 W | 0.5 W | PC Pins | 10 % | ||||
Nidec Components Corporation | 1 | 1 MOhms | Through Hole | 4.9 mm | 0.193 in | Top Adjustment | 100 ppm/°C | Cermet | 0.5 W | 0.5 W | PC Pins | 10 % | ||||
Nidec Components Corporation | 1 | 1000 Ohms | Through Hole | Side Adjustment | 100 ppm/°C | Cermet | 0.5 W | 0.5 W | PC Pins | 10 % | 0.22 " | 0.197 in | 5.6 mm | 5 mm |
