093635 Series
Manufacturer: Molex
Beta
⌘K

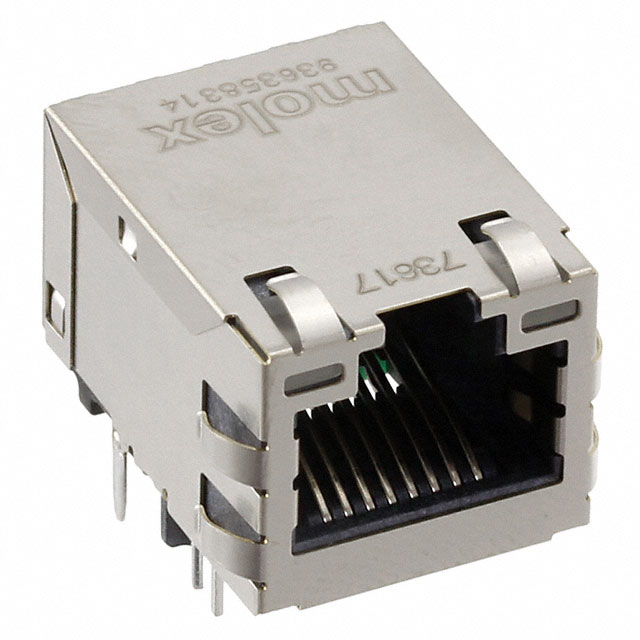

CONN JACK 1PORT 100 BASE-TX PCB
| Part | Shielding | Housing Material | LED Color | Number of Ports | Contact Material | Orientation | Number of Rows | Applications | Height Above Board [z] | Height Above Board [z] | Number of Cores per Jack | Shield Material | Operating Temperature [Max] | Operating Temperature [Min] | Termination | Features | Tab Direction | Mounting Type | Contact Finish | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | Shielded EMI Finger | Liquid Crystal Polymer (LCP) | Yellow - Green | 1 | Phosphor Bronze | 90 ° | 1 | 10/100 Base-TX AutoMDIX | 14.1 mm | 0.555 in | 6 | Brass | 85 °C | -40 °C | Solder | Board Guide | Up | Through Hole | Palladium-Nickel | RJ45 |
