ME100 Series

Catalog

CONN EDGE DUAL FMALE 2POS GOLD

Part	Material - Insulation	Number of Positions	Card Thickness	Card Thickness	Operating Temperature [Max]	Operating Temperature [Min]	Read Out	Termination	Card Type	Color	Contact Material	Contact Finish	Mounting Type	Gender	Number of Positions/Bay/Row	Number of Rows [custom]	Features	Contact Finish Thickness	Contact Finish Thickness	Flange Feature [x]	Flange Feature	Flange Feature [x]	Pitch	Pitch	Contact Type	Number of Positions [custom]

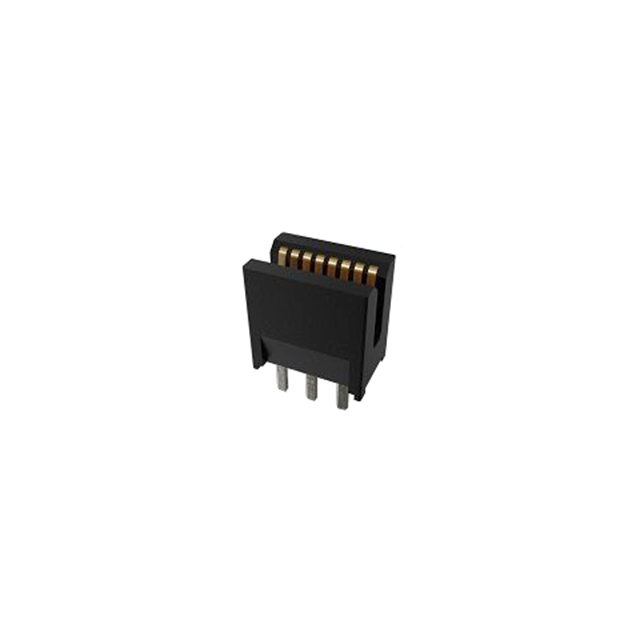

Amphenol ICC (FCI) ME10000101P1011	Thermoplastic	2	1.57 mm	0.062 in	85 °C	-40 C	Dual	Solder	Non Specified - Dual Edge	Black	Copper Alloy	Gold	Through Hole	Female	1	2	Open Card Slot	30 Áin	0.76 Ám

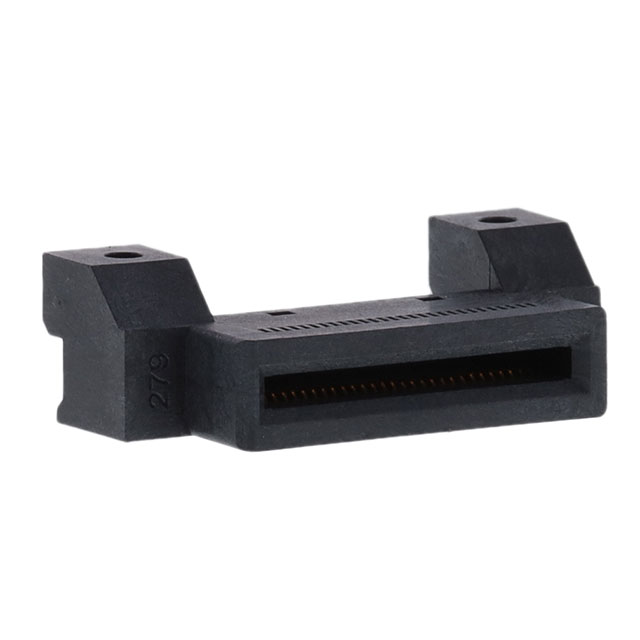

Amphenol ICC (FCI) ME10056334B1A01	Thermoplastic	56	1.57 mm	0.062 in	85 °C	-40 C	Dual	Solder	Non Specified - Dual Edge	Black	Copper Alloy	Gold	Board Edge Straddle Mount	Female	28	2		30 Áin	0.76 Ám	0.087 "	Straddle Mount Opening Unthreaded	2.2 mm	0.6 mm	0.024 "

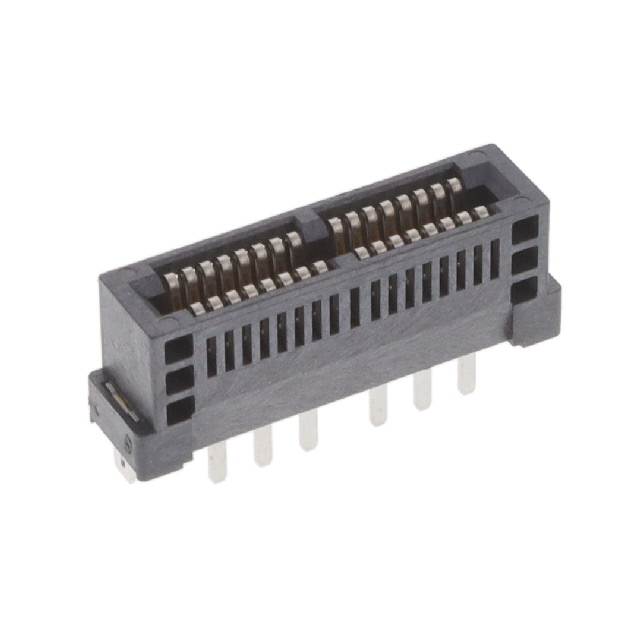

Amphenol ICC (FCI) ME10000401P0011	Thermoplastic	4	1.57 mm	0.062 in	85 °C	-40 C	Dual	Solder	Non Specified - Dual Edge	Black	Copper Alloy	Gold	Through Hole	Female	2	2	Open Card Slot	30 Áin	0.76 Ám

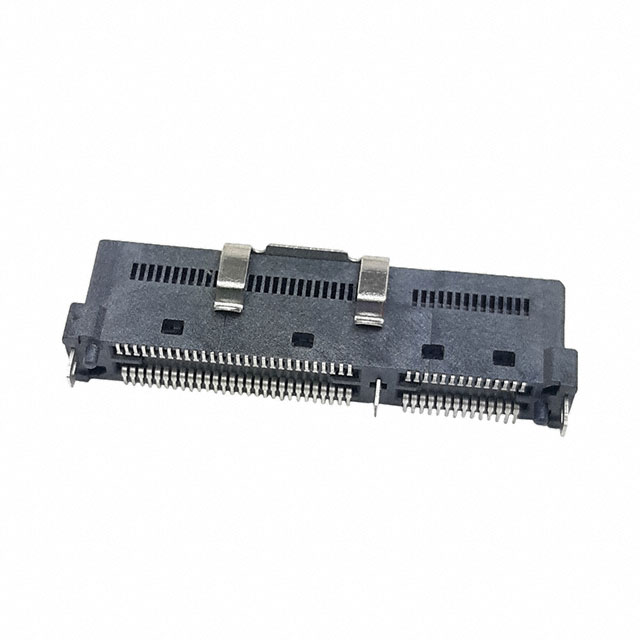

Amphenol ICC (FCI) ME1008410101011	Thermoplastic		1.57 mm	0.062 in	105 ░C	-55 C	Dual	Solder	Non Specified - Dual Edge	Black	Copper Alloy	Gold	Surface Mount	Female	14 28	2	Board Guide Board Lock	30 Áin	0.76 Ám				0.6 mm	0.024 "	Cantilever	84

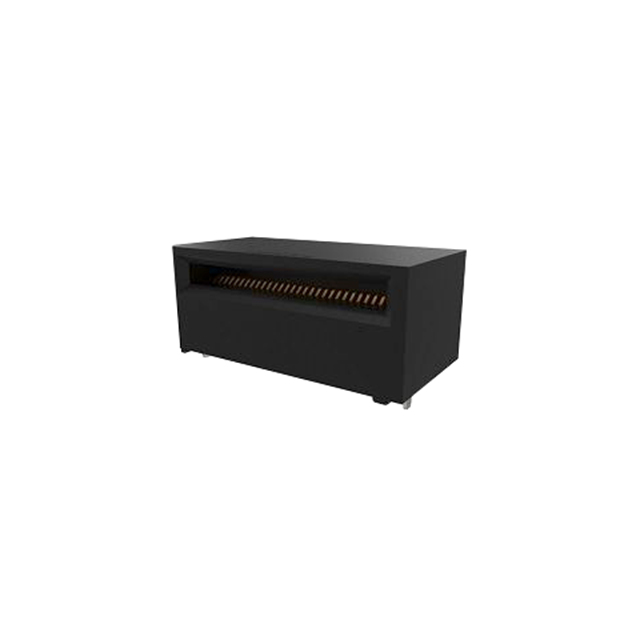

Amphenol ICC (FCI) ME1005610211081	Thermoplastic	56	1.57 mm	0.062 in	85 °C	-40 C	Dual	Solder	Non Specified - Dual Edge	Black	Copper Alloy	Gold Gold GXT™	Right Angle Surface Mount	Female	28	2	Board Guide	15 µin 30 Áin	0.38 µm 0.76 Ám				0.6 mm	0.024 "
