OSTV720 Series

Catalog

TERM BLOCK HDR 20POS 5.08MM

Part	Housing Material	Contact Tail Length	Contact Tail Length	Contact Material	Insulation Height	Insulation Height	Material Flammability Rating	Header Orientation	Termination Style	Positions Per Level	Color	Number of Positions	Current - UL	Number of Levels	Mounting Type	Voltage - UL	Operating Temperature [Min]	Operating Temperature [Max]	Features	Type	Pitch	Pitch	Insulation Height [z]	Contact Tail Length [x]	Contact Tail Length [x]	Insulation Height [custom]	Insulation Height [custom]
On Shore Technology Inc. OSTV7205251	Thermoplastic	0.138 in	3.5 mm	Phosphor Bronze	8.61 mm	0.339 "	UL94 V-0	90° Right Angle	Solder	20	Green	20	20 A	1	Through Hole	300 V	-30 ░C	105 ░C	Mating Flange Retention Latches	Header Female Sockets	5.08 mm	0.2 in
On Shore Technology Inc. OSTV7203150	Thermoplastic			Phosphor Bronze	14.5 mm		UL94 V-0	Vertical	Solder	20	Green	20	8 A	1	Through Hole	300 V	-30 ░C	105 ░C		Header Female Sockets	3.81 mm	0.15 in	0.571 in	3.4 mm	0.134 in
On Shore Technology Inc. OSTV7205151	Thermoplastic	0.138 in	3.5 mm	Phosphor Bronze	8.61 mm	0.339 "	UL94 V-0	90° Right Angle	Solder	20	Green	20	20 A	1	Through Hole	300 V	-30 ░C	105 ░C	Retention Latches	Header Female Sockets	5.08 mm	0.2 in
On Shore Technology Inc. OSTV7203101	Thermoplastic			Phosphor Bronze			UL94 V-0	90° Right Angle	Solder	20	Black	20	4 A	1	Through Hole	300 V	-30 ░C	105 ░C		Header Female Sockets	3.81 mm	0.15 in				6.6 mm	0.26 in
On Shore Technology Inc. OSTV7205150	Thermoplastic	0.138 in	3.5 mm	Phosphor Bronze	19 mm	0.748 in	UL94 V-0	Vertical	Solder	20	Green	20	20 A	1	Through Hole	300 V	-30 ░C	105 ░C	Retention Latches	Header Female Sockets	5.08 mm	0.2 in

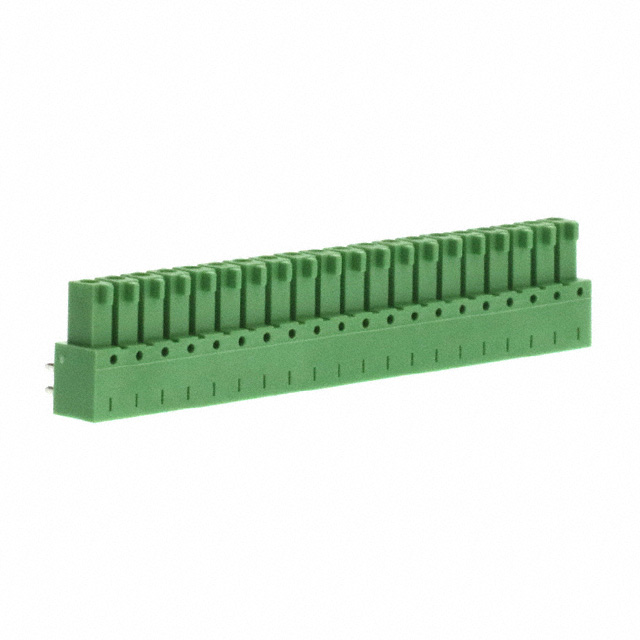

On Shore Technology Inc. OSTV7203151	Thermoplastic			Phosphor Bronze			UL94 V-0	90° Right Angle	Solder	20	Green	20	4 A	1	Through Hole	300 V	-30 ░C	105 ░C		Header Female Sockets	3.81 mm	0.15 in		3.4 mm	0.134 in	6.6 mm	0.26 in
