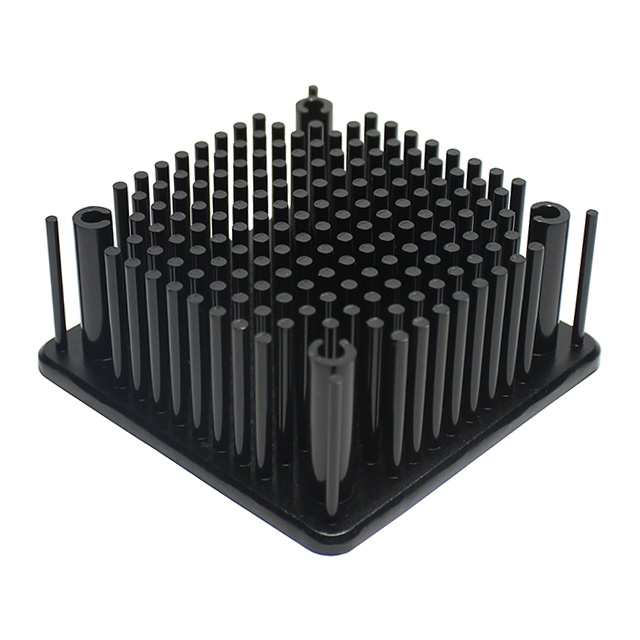

APR55 Series

Manufacturer: CTS Thermal Management Products

Catalog

HEATSINK FORGED BLK ANO TOP MNT

Part	Shelf Life	Fin Height [custom]	Fin Height [custom]	Width	Width	Shape	Type	Length [x]	Length [x]	Attachment Method	Thermal Resistance @ Natural	Material	Thermal Resistance @ Forced Air Flow	Package Cooled	Material Finish	Fin Height [z]	Fin Height [z]	Fin Height [custom]	Fin Height [custom]	Fin Height	Fin Height
CTS Thermal Management Products APR55-55-12CB/A01	24 Months	0.457 in	11.6 mm	2.15 in	54.6 mm	Pin Fins Square	Top Mount	54.6 mm	2.15 "	Thermal Tape Adhesive (Included)	7.6 °C/W	Aluminum Alloy	2.68 °C/W	ASIC BGA CPU LGA	Black Anodized
CTS Thermal Management Products APR55-55-28CB/A01	24 Months			2.15 in	54.6 mm	Pin Fins Square	Top Mount	54.6 mm	2.15 "	Thermal Tape Adhesive (Included)	5.72 °C/W	Aluminum Alloy	1.62 °C/W	ASIC BGA CPU LGA	Black Anodized	27.6 mm	1.087 in
CTS Thermal Management Products APR55-55-23CB/A01	24 Months			2.15 in	54.6 mm	Pin Fins Square	Top Mount	54.6 mm	2.15 "	Thermal Tape Adhesive (Included)	6.24 °C/W	Aluminum Alloy	1.84 °C/W	ASIC BGA CPU LGA	Black Anodized			22.61 mm	0.89 in
CTS Thermal Management Products APR55-55-33CB/A01	24 Months			2.15 in	54.6 mm	Pin Fins Square	Top Mount	54.6 mm	2.15 "	Thermal Tape Adhesive (Included)	5.16 °C/W	Aluminum Alloy		ASIC BGA CPU LGA	Black Anodized					1.283 in	32.6 mm
CTS Thermal Management Products APR55-55-21CB/A01	24 Months			2.15 in	54.6 mm	Pin Fins Square	Top Mount	54.6 mm	2.15 "	Thermal Tape Adhesive (Included)	6.49 °C/W	Aluminum Alloy	2.05 °C/W	ASIC BGA CPU LGA	Black Anodized					0.811 in	20.6 mm
CTS Thermal Management Products APR55-55-18CB/A01	24 Months			2.15 in	54.6 mm	Pin Fins Square	Top Mount	54.6 mm	2.15 "	Thermal Tape Adhesive (Included)	6.75 °C/W	Aluminum Alloy		ASIC BGA CPU LGA	Black Anodized					0.693 in	17.6 mm
CTS Thermal Management Products APR55-55-15CB/A01	24 Months	0.575 in		2.15 in	54.6 mm	Pin Fins Square	Top Mount	54.6 mm	2.15 "	Thermal Tape Adhesive (Included)	7.15 °C/W	Aluminum Alloy	2.43 °C/W	ASIC BGA CPU LGA	Black Anodized						14.6 mm
