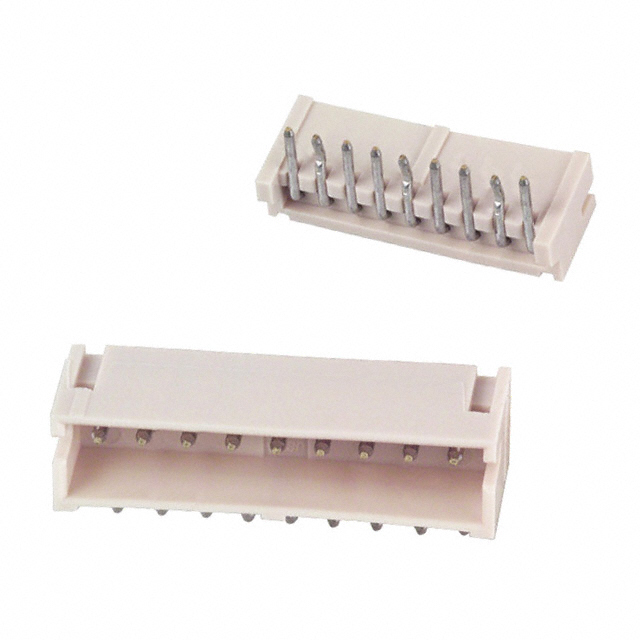

S9B-ZR Series
Manufacturer: JST Sales America Inc.
Beta
⌘K
CONN HEADER SMD R/A 9POS 1.5MM
| Part | Features | Connector Type | Contact Material | Contact Finish - Post | Contact Shape | Insulation Height | Insulation Height | Number of Positions Loaded | Insulation Color | Voltage Rating | Number of Positions | Shrouding | Contact Type | Number of Rows | Material Flammability Rating | Termination | Insulation Material | Fastening Type | Mounting Type | Contact Length - Mating | Contact Length - Mating | Operating Temperature [Max] | Operating Temperature [Min] | Style | Contact Length - Post [x] | Contact Length - Post | Contact Length - Post [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | Board Guide | Header | Brass | Tin | Circular | 3.7 mm | 0.146 in | All | Natural | 50 V | 9 | Shrouded - 4 Wall | Male Pin | 1 | UL94 V-0 | Solder | Glass Filled Nylon 4/6 Polyamide (PA46) | Detent Lock | Right Angle Surface Mount | 2.4 mm | 0.094 in | 85 °C | -25 °C | Board to Cable/Wire | |||

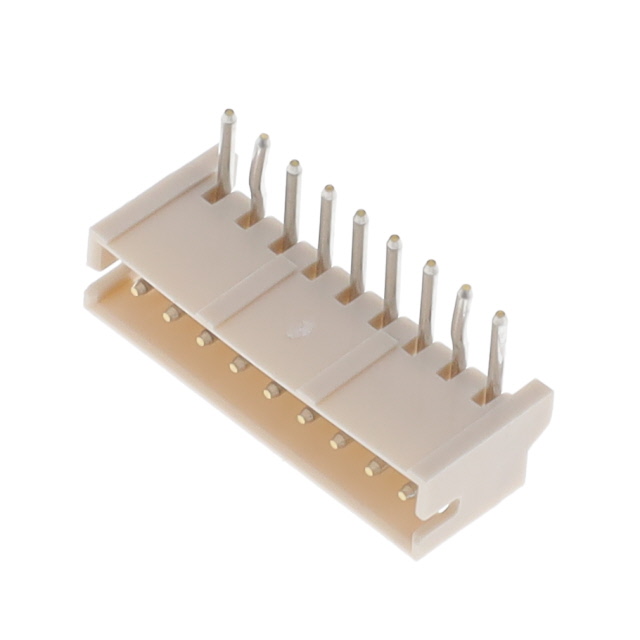

 JST Sales America Inc. | Header | Brass | Tin | Circular | 3.7 mm | 0.146 in | All | Natural | 50 V | 9 | Shrouded - 4 Wall | Male Pin | 1 | UL94 V-0 | Solder | Glass Filled Nylon 6/6 Polyamide (PA66) | Detent Lock | Right Angle Through Hole | 85 °C | -25 °C | Board to Cable/Wire | 0.134 " | 3.4 mm | ||||
 JST Sales America Inc. | Header | Brass | Tin | Circular | 3.7 mm | 0.146 in | All | Natural | 50 V | 9 | Shrouded - 4 Wall | Male Pin | 1 | UL94 V-0 | Solder | Glass Filled Nylon 6/6 Polyamide (PA66) | Detent Lock | Right Angle Through Hole | 2.4 mm | 0.094 in | 85 °C | -25 °C | Board to Cable/Wire | 0.106 in | 2.69 mm |
