C14621R032 Series

Manufacturer: Amphenol Tuchel Industrial

Catalog

CONN HOOD TOP ENTRY SZA32 M32

Part	Size	Connector Type	Style	Operating Temperature [Min]	Operating Temperature [Max]	Thread Size	Ingress Protection	Housing Material	Lock Location	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Features
Amphenol Tuchel Industrial C14621R0326024	A32	Hood	Top Entry	-40 C	100 °C	M32	IP65 - Dust Tight Water Resistant	Aluminum Alloy Die Cast	Locking Clip (2) on Hood

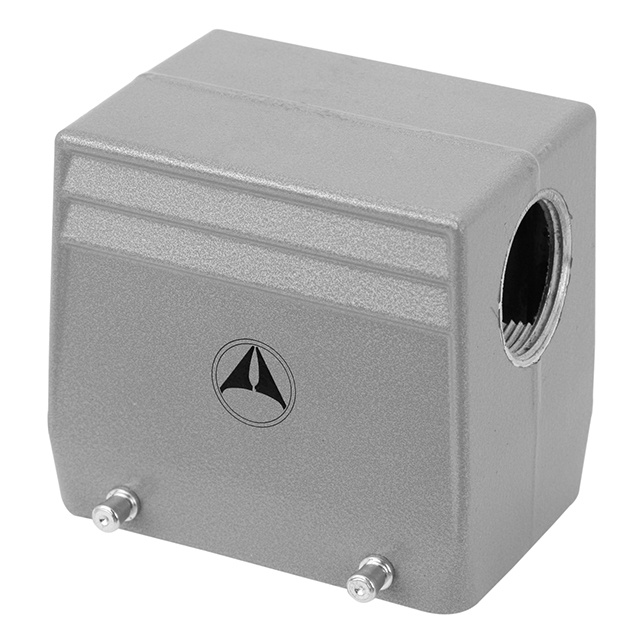

Amphenol Tuchel Industrial C14621R0325004	A32	Hood	Side Entry	-40 C	100 °C	M32	IP65 - Dust Tight Water Resistant	Aluminum Alloy Die Cast	Locking Clip (2) on Base Bottom	56 mm	3.228 in	75 mm	82 mm	2.205 in	2.953 "
Amphenol Tuchel Industrial C14621R0325524	A32	Hood	Side Entry	-40 C	100 °C	M25	IP65 - Dust Tight Water Resistant	Aluminum Alloy Die Cast	Locking Clip (2) on Hood
Amphenol Tuchel Industrial C14621R0328034	A32	Hood - Coupling	Bottom Entry Top or Bottom Entry	-40 C	100 °C		IP65 - Dust Tight Water Resistant	Aluminum Alloy Die Cast	Locking Clip (2) on Hood Top							Cable to Cable

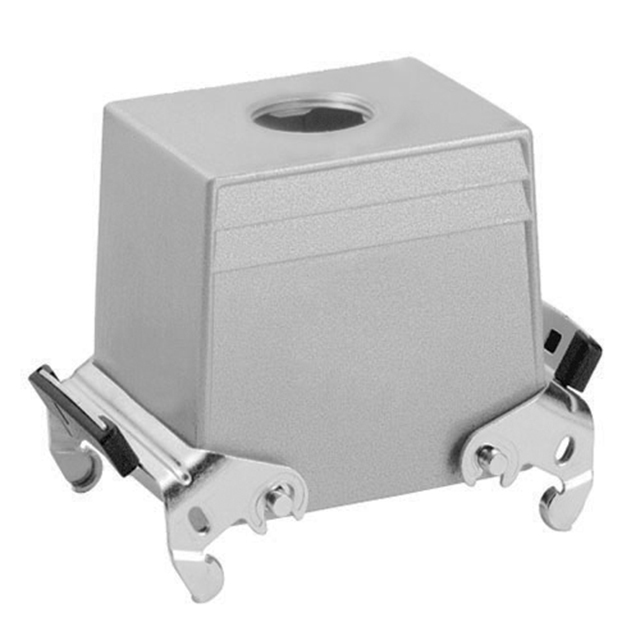

Amphenol Tuchel Industrial C14621R0326504	A32	Hood	Top Entry	-40 C	100 °C	M25	IP65 - Dust Tight Water Resistant	Aluminum Alloy Die Cast	Locking Clip (2) on Base Bottom	56 mm	3.228 in	75 mm	82 mm	2.205 in	2.953 "

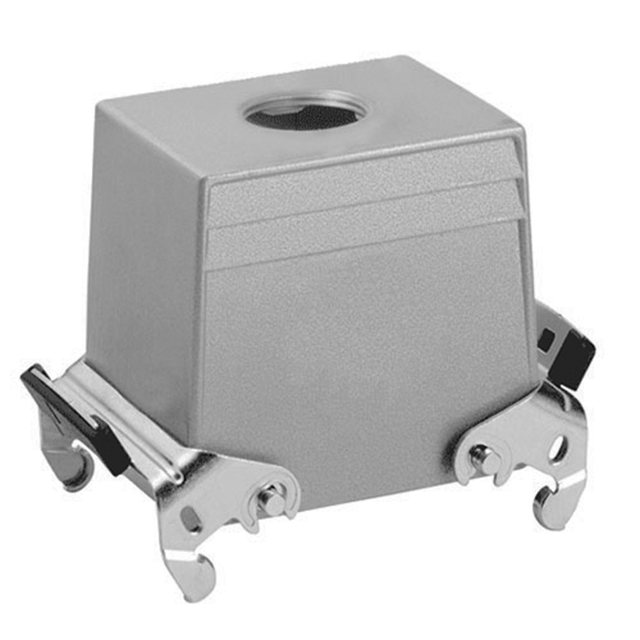

Amphenol Tuchel Industrial C14621R0328524	A32	Hood - Coupling	Bottom Entry Top or Bottom Entry	-40 C	100 °C	M25	IP65 - Dust Tight Water Resistant	Aluminum Alloy Die Cast	Locking Clip (2) on Hood Top							Cable to Cable
Amphenol Tuchel Industrial C14621R0328024	A32	Hood - Coupling	Bottom Entry Top or Bottom Entry	-40 C	100 °C	M32	IP65 - Dust Tight Water Resistant	Aluminum Alloy Die Cast	Locking Clip (2) on Hood Top							Cable to Cable

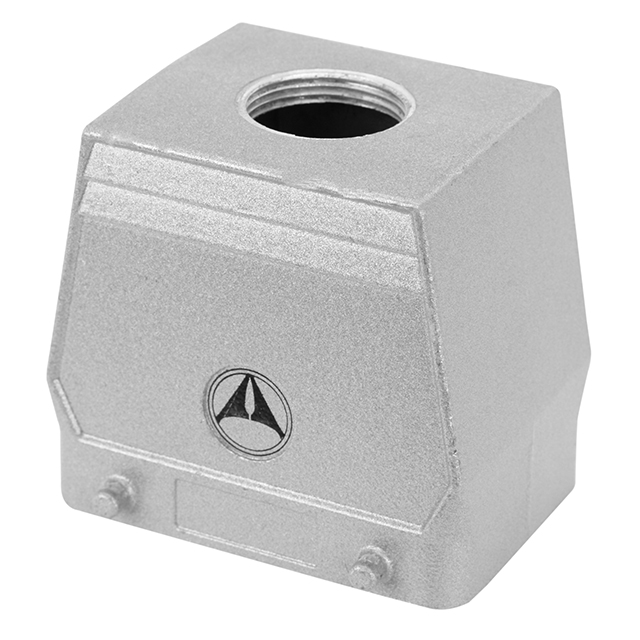

Amphenol Tuchel Industrial C14621R0326004	A32	Hood	Top Entry	-40 C	100 °C	M32	IP65 - Dust Tight Water Resistant	Aluminum Alloy Die Cast	Locking Clip (2) on Base Bottom	56 mm	3.228 in	75 mm	82 mm	2.205 in	2.953 "
