SI82521 Series

Catalog

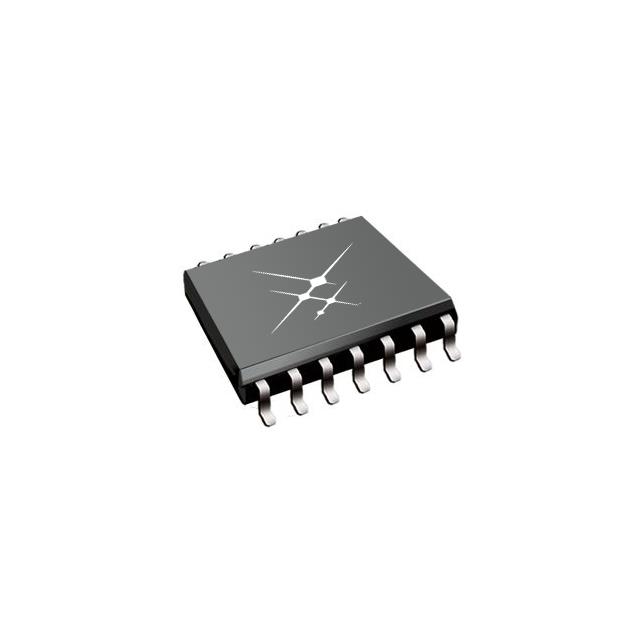

DGTL ISO 5KV 1CH GATE DVR 14SOIC

Part	Mounting Type	Current - Output High, Low [custom]	Current - Output High, Low [custom]	Package / Case	Package / Case [x]	Package / Case [custom]	Rise / Fall Time (Typ)	Rise / Fall Time (Typ) [Max]	Propagation Delay tpLH / tpHL (Max) [Max] [custom]	Propagation Delay tpLH / tpHL (Max) [Max] [custom]	Technology	Number of Channels [custom]	Voltage - Output Supply [Max]	Voltage - Output Supply [Min]	Common Mode Transient Immunity (Min) [Min]	Current - Peak Output	Pulse Width Distortion (Max) [Max]	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]
Skyworks Solutions Inc. SI82521CD-IS3	Surface Mount	4 A	4 A	14-SOIC	0.295 in	7.5 mm	12 ns	12 ns	30 ns	30 ns	Capacitive Coupling	1	30 V	5.5 V	125 V/ns	4 A	5.6 ns	CQC CSA UL VDE	125 °C	-40 C
Skyworks Solutions Inc. SI82521AD-IS3	Surface Mount	4 A	4 A	14-SOIC	0.295 in	7.5 mm	12 ns	12 ns	30 ns	30 ns	Capacitive Coupling	1	30 V	5.5 V	125 V/ns	4 A	5.6 ns	CQC CSA UL VDE	125 °C	-40 C
Skyworks Solutions Inc. SI82521CD-IS3R
Skyworks Solutions Inc. Si82521BD-IS3R
Skyworks Solutions Inc. SI82521BD-IS3	Surface Mount	4 A	4 A	14-SOIC	0.295 in	7.5 mm	12 ns	12 ns	30 ns	30 ns	Capacitive Coupling	1	30 V	5.5 V	125 V/ns	4 A	5.6 ns	CQC CSA UL VDE	125 °C	-40 C
Skyworks Solutions Inc. SI82521AD-IS3R
