F2211/2 Series

Catalog

HEATSHRINK 1/2" X 0.5' GREEN

Part	Shelf Life Start	Shelf Life	Features	Type	Color	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Length	Length	Length	Shrinkage Ratio [Min]	Shrinkage Ratio [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Shrink Temperature	Material	Recovered Wall Thickness	Recovered Wall Thickness	Length [x]	Length [x]
ALPHA WIRE F2211/2 GR066	Date of Manufacture	144 Months	Flame Resistant Fluid Resistant	Tubing Flexible	Green	6.35 mm	0.25 in	152.4 mm	0.5 '	6 "	1	2	-55 C	135 °C	12.7 mm	0.5 "	90 °C	Polyolefin (PO) Irradiated	0.025 in	0.64 mm
ALPHA WIRE F2211/2 BK105	Date of Manufacture	144 Months	Flame Resistant Fluid Resistant UV Resistant	Tubing Flexible	Black	6.35 mm	0.25 in				1	2	-55 C	135 °C	12.7 mm	0.5 "	90 °C	Polyolefin (PO) Irradiated	0.025 in	0.64 mm	4 ft	1.22 m

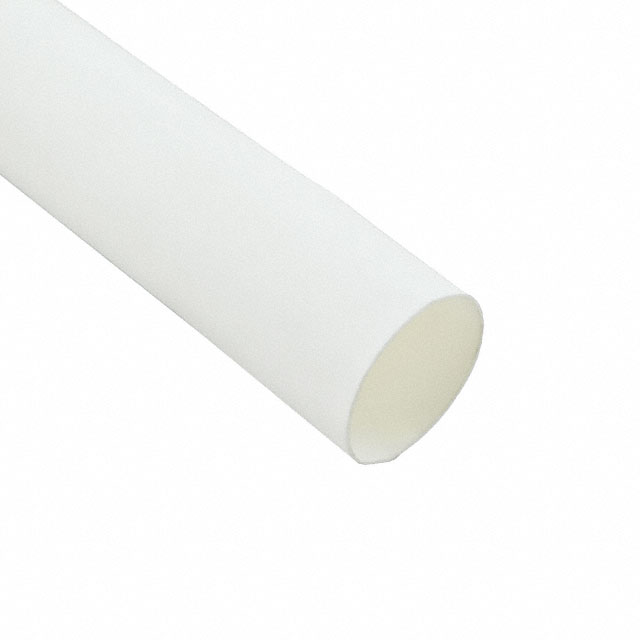

ALPHA WIRE F2211/2 WH066	Date of Manufacture	144 Months	Flame Resistant Fluid Resistant	Tubing Flexible	White	6.35 mm	0.25 in	152.4 mm	0.5 '	6 "	1	2	-55 C	135 °C	12.7 mm	0.5 "	90 °C	Polyolefin (PO) Irradiated	0.025 in	0.64 mm
ALPHA WIRE F2211/2 YL066	Date of Manufacture	144 Months	Flame Resistant Fluid Resistant	Tubing Flexible	Yellow	6.35 mm	0.25 in	152.4 mm	0.5 '	6 "	1	2	-55 C	135 °C	12.7 mm	0.5 "	90 °C	Polyolefin (PO) Irradiated	0.025 in	0.64 mm

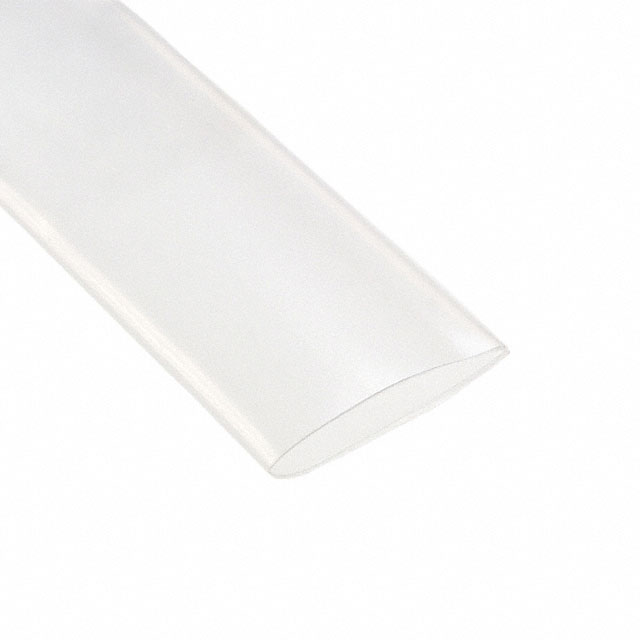

ALPHA WIRE F2211/2 CL025	Date of Manufacture	144 Months	Fluid Resistant	Tubing Flexible	Clear	6.35 mm	0.25 in	9.8 m	32 ft		1	2	-55 C	135 °C	12.7 mm	0.5 "	90 °C	Polyolefin (PO) Irradiated	0.025 in	0.64 mm
ALPHA WIRE F2211/2 WH025	Date of Manufacture	144 Months	Flame Resistant Fluid Resistant	Tubing Flexible	White	6.35 mm	0.25 in	9.8 m	32 ft		1	2	-55 C	135 °C	12.7 mm	0.5 "	90 °C	Polyolefin (PO) Irradiated	0.025 in	0.64 mm
ALPHA WIRE F2211/2 YL105	Date of Manufacture	144 Months	Flame Resistant Fluid Resistant	Tubing Flexible	Yellow	6.35 mm	0.25 in				1	2	-55 C	135 °C	12.7 mm	0.5 "	90 °C	Polyolefin (PO) Irradiated	0.025 in	0.64 mm	4 ft	1.22 m
ALPHA WIRE F2211/2 RD025	Date of Manufacture	144 Months	Flame Resistant Fluid Resistant	Tubing Flexible	Red	6.35 mm	0.25 in	9.8 m	32 ft		1	2	-55 C	135 °C	12.7 mm	0.5 "	90 °C	Polyolefin (PO) Irradiated	0.025 in	0.64 mm
ALPHA WIRE F2211/2 RD105	Date of Manufacture	144 Months	Flame Resistant Fluid Resistant	Tubing Flexible	Red	6.35 mm	0.25 in				1	2	-55 C	135 °C	12.7 mm	0.5 "	90 °C	Polyolefin (PO) Irradiated	0.025 in	0.64 mm	4 ft	1.22 m
ALPHA WIRE F2211/2 GR025	Date of Manufacture	144 Months	Flame Resistant Fluid Resistant	Tubing Flexible	Green	6.35 mm	0.25 in	9.8 m	32 ft		1	2	-55 C	135 °C	12.7 mm	0.5 "	90 °C	Polyolefin (PO) Irradiated	0.025 in	0.64 mm
