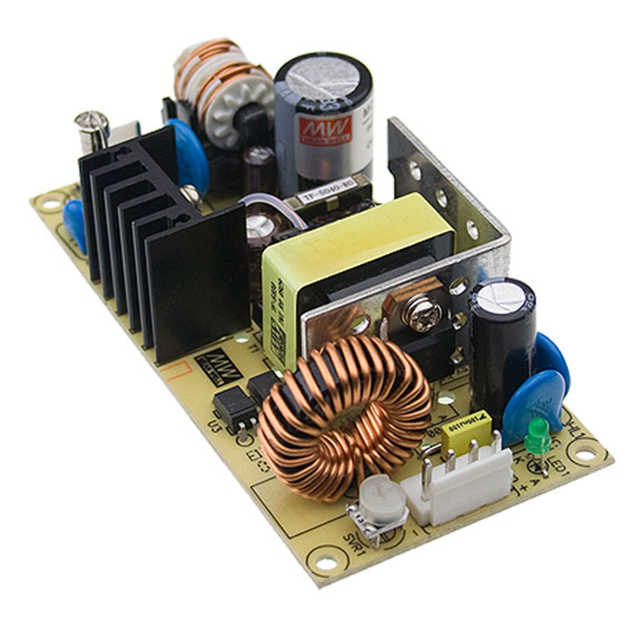

PSD-30 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
DC/DC CONVERTER 24V 30W
| Part | Power (Watts) | Approval Agency | Current - Output (Max) [Max] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Voltage - Output 1 | Type | Applications | Voltage - Input (Max) [Max] | Voltage - Input (Min) [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Number of Outputs | Voltage - Isolation | Mounting Type | Efficiency | Current - Output (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | 30 Watts | CE | 1.25 A | 101.6 mm | 50.8 mm | 1.18 in | 4 " | 30 mm | 2 in | 24 V | Open Frame | ITE (Commercial) | 18 V | 9 V | 60 °C | -20 °C | 1 | 1.5 kV | Chassis Mount | 78 % | |
MEAN WELL USA Inc. | 25 W | CE | 101.6 mm | 50.8 mm | 1.18 in | 4 " | 30 mm | 2 in | 5 V | Open Frame | ITE (Commercial) | 72 V | 36 V | 60 °C | -20 °C | 1 | 1.5 kV | Chassis Mount | 80 % | 5 A |
