1337446 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

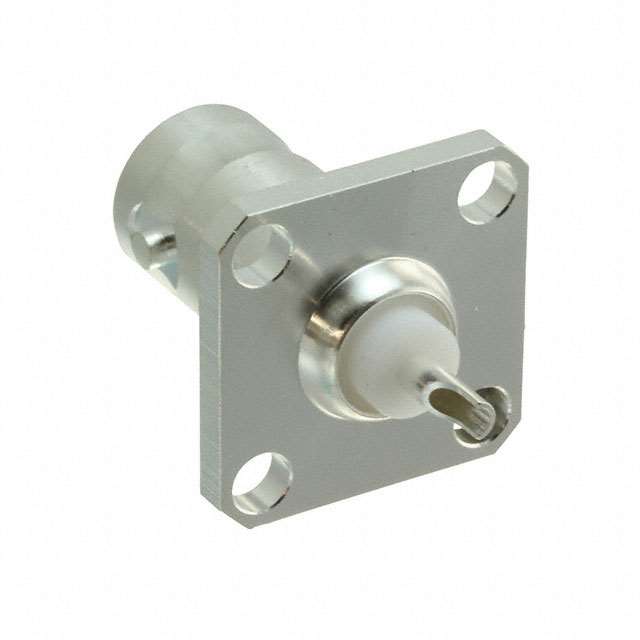

CONN BNC JACK STR 50 OHM SOLDER
| Part | Body Finish | Mating Cycles | Center Contact Plating | Voltage Rating | Body Material | Operating Temperature [Max] | Operating Temperature [Min] | Dielectric Material | Mounting Feature | Impedance | Contact Termination | Number of Ports | Frequency - Max [Max] | Shield Termination | Connector Type | Housing Color | Features | Center Contact Material | Mounting Type | Fastening Type | Connector Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Silver | 500 | Silver | 500 V | Brass | 85 °C | -40 C | Polytetrafluoroethylene (PTFE) | Flange | 50 Ohms | Solder Cup | 1 | 2 GHz | Solder | Female Socket Jack | Silver | Extended Insulation | Phosphor Bronze | Panel Mount | Bayonet Lock | BNC |
