207532 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

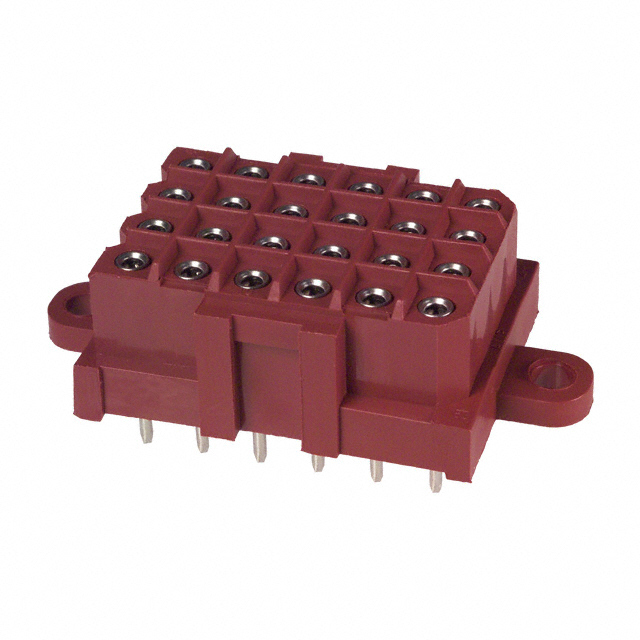

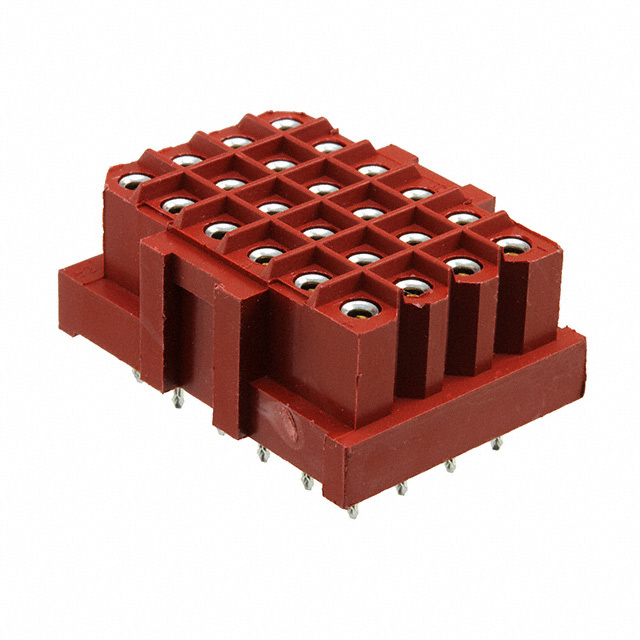

CONN HDR 24POS 0.197 TIN PCB
| Part | Insulation Material | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Number of Positions Loaded | Row Spacing - Mating | Row Spacing - Mating | Number of Positions | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Material Flammability Rating | Termination | Pitch - Mating | Pitch - Mating | Contact Finish - Post | Contact Shape | Insulation Height | Insulation Height | Contact Material | Contact Length - Post [x] | Contact Length - Post [x] | Current Rating (Amps) | Mounting Type | Contact Type | Fastening Type | Insulation Color | Connector Type | Style | Voltage Rating | Contact Finish - Mating | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Nylon Polyamide (PA) | 130 °C | -55 °C | 150 Áin | 3.81 Ám | All | 5 mm | 0.197 in | 24 | 150 Áin | 3.81 Ám | UL94 V-0 | Solder | 5 mm | 0.197 " | Tin | Circular | 0.565 in | 14.35 mm | Phosphor Bronze | 0.181 in | 4.6 mm | 7.5 A | Through Hole | Female Socket | Latch Holder | Black Red | Header | Board to Cable/Wire | 600 V | ||
TE Connectivity Raychem Cable Protection | Nylon Polyamide (PA) | 130 °C | -55 °C | 150 Áin | 3.81 Ám | All | 5 mm | 0.197 in | 24 | 150 Áin | 3.81 Ám | UL94 V-0 | Solder | 5 mm | 0.197 " | Tin-Lead | Circular | 0.565 in | 14.35 mm | Phosphor Bronze | 0.181 in | 4.6 mm | 7.5 A | Through Hole | Female Socket | Latch Holder | Black Red | Header | Board to Cable/Wire | 600 V | Tin-Lead | |
 TE Connectivity Raychem Cable Protection | Nylon Polyamide (PA) | 130 °C | -55 °C | 30 Áin | 0.76 Ám | All | 5 mm | 0.197 in | 24 | 150 Áin | 3.81 Ám | UL94 V-0 | Solder | 5 mm | 0.197 " | Tin-Lead | Circular | 0.565 in | 14.35 mm | Phosphor Bronze | 0.181 in | 4.6 mm | 7.5 A | Through Hole | Female Socket | Latch Holder | Black Red | Header | Board to Cable/Wire | 600 V | Gold | |
TE Connectivity Raychem Cable Protection | Nylon Polyamide (PA) | 130 °C | -55 °C | 150 Áin | 3.81 Ám | All | 5 mm | 0.197 in | 24 | 150 Áin | 3.81 Ám | UL94 V-0 | Solder | 5 mm | 0.197 " | Tin | Circular | 0.565 in | 14.35 mm | Phosphor Bronze | 0.181 in | 4.6 mm | 7.5 A | Through Hole | Female Socket | Latch Holder | Black Red | Header | Board to Cable/Wire | 600 V | Mounting Flange |
