46-05 Series

Catalog

SWITCH PUSH DPDT 0.25A 115V

Part	Electrical Life	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - AC	Mounting Type	Switch Function	Actuator Marking	Actuator Type	Circuit	Color - Actuator/Cap	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Type	Termination Style

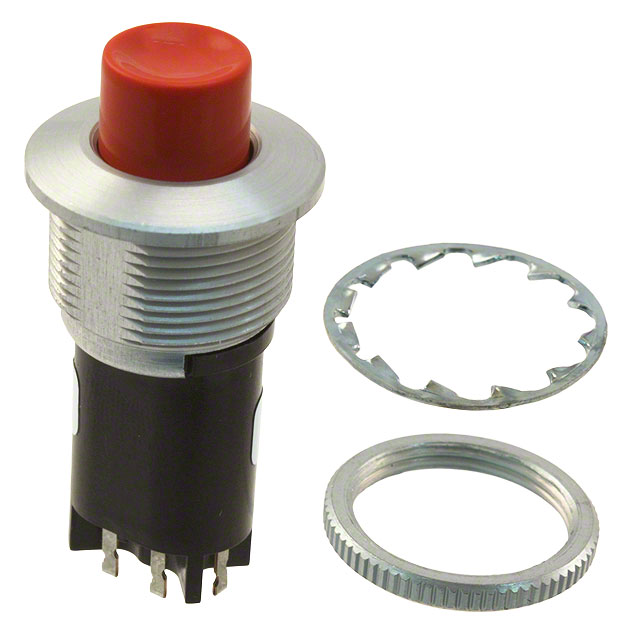

Grayhill Inc. 46-05-08-502-03	250000 Cycles	250 mA	85 °C	-40 C	115 V	Panel Mount Front	On-Mom	No Marking	Button Round	DPDT	Red	16.28 mm	14.35 mm	Standard	Solder Lug
Grayhill Inc. 46-05-05-502-07	250000 Cycles	250 mA	85 °C	-40 C	115 V	Panel Mount Front	On-Mom	No Marking	Button Round	SPDT	Black	13.1 mm	11.17 mm	Standard	Solder Lug
Grayhill Inc. 46-05-05-502-01	250000 Cycles	250 mA	85 °C	-40 C	115 V	Panel Mount Front	On-Mom	No Marking	Button Round	SPDT	White	13.1 mm	11.17 mm	Standard	Solder Lug
