PJRAS1 Series
Manufacturer: Switchcraft Inc.
Beta
⌘K
CONN RCA JACK MONO 3.2MM R/A
| Part | Number of Positions/Contacts | Mounting Type | Contact Material - Plating | Industry Recognized Mating Diameter [diameter] | Body Color | Body Material | Connector Type | Termination | Gender | Contact Material | Features | Housing Material | Shielding | Current Rating (Amps) | Signal Lines | Operating Temperature [Min] | Operating Temperature [Max] | Internal Switch(s) | Insulation Color | Number of Positions/Contacts | Contact Material - Plating [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

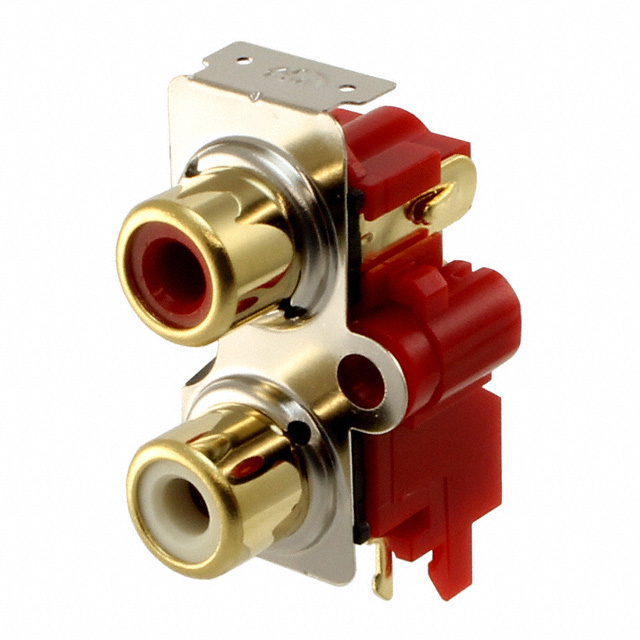

Switchcraft Inc. | 2 Sets of 2 Conductors 3 Contacts | Through Hole Right Angle | Tin | 3.2 mm 9 mm | Black Silver | Copper Alloy | Phono (RCA) Jack | Solder | Female | Copper Alloy | Grounding Tab | Acrylonitrile Butadiene Styrene (ABS) | Shielded | 2 A | Mono | -25 °C | 85 °C | Red White | |||

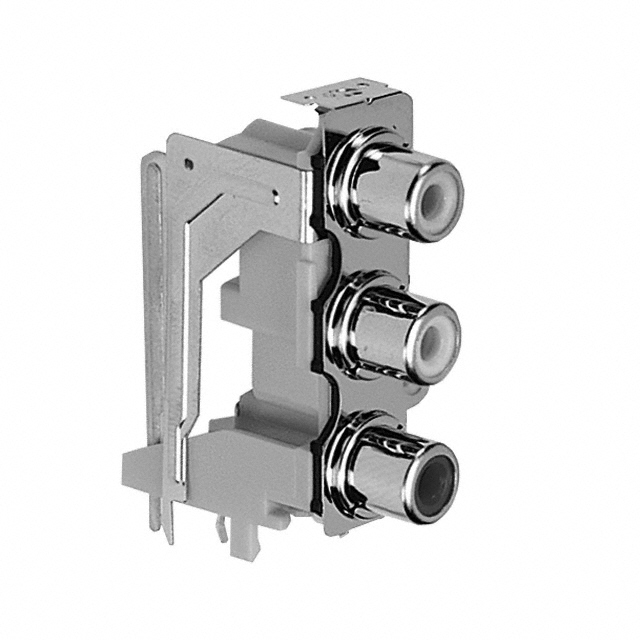

 Switchcraft Inc. | 3 Sets of 2 Conductors | Through Hole Right Angle | Tin | 3.2 mm 9 mm | Red Silver | Copper Alloy | Phono (RCA) Jack | Solder | Female | Copper Alloy | Grounding Tab | Acrylonitrile Butadiene Styrene (ABS) | Shielded | 2 A | Mono | -25 °C | 85 °C | Red White Yellow | 5 | ||
 Switchcraft Inc. | 2 Sets of 2 Conductors 3 Contacts | Through Hole Right Angle | 3.2 mm 9 mm | Black Gold | Copper Alloy | Phono (RCA) Jack | Solder | Female | Copper Alloy | Grounding Tab | Acrylonitrile Butadiene Styrene (ABS) | Shielded | 2 A | Mono | -25 °C | 85 °C | Red White | Gold | |||
 Switchcraft Inc. | Through Hole Right Angle | 3.2 mm 9 mm | Gold Yellow | Copper Alloy | Phono (RCA) Jack | Solder | Female | Copper Alloy | Grounding Tab | Acrylonitrile Butadiene Styrene (ABS) | Shielded | 2 A | Mono | -25 °C | 85 °C | Yellow | 2 Conductors 3 Conductors | Gold | |||

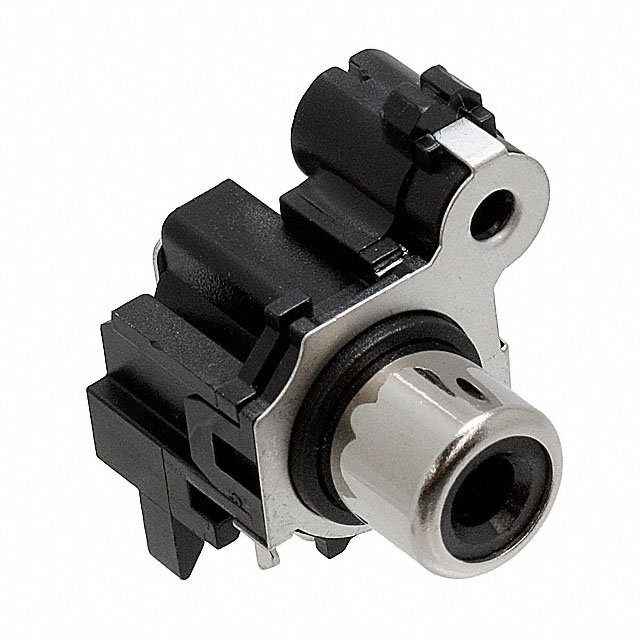

 Switchcraft Inc. | Through Hole Right Angle | Tin | 3.2 mm 9 mm | Black Silver | Copper | Phono (RCA) Jack | Solder | Female | Copper Alloy | Grounding Tab | Acrylonitrile Butadiene Styrene (ABS) | Shielded | 2 A | Mono | -25 °C | 85 °C | Black | 2 Conductors 3 Conductors |
