ME40A1203 Series

Manufacturer: SL POWER / Advanced Energy

Catalog

AC/DC WALL MOUNT ADAPTER 12V 41W

Part	Weight	Weight	Applications	Form	Input Connector	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output (Max) [Max]	Region Utilized	Input Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	No Load Power Consumption	Voltage - Output	Cord Length	Cord Length	Voltage - Input [Max]	Voltage - Input [Min]	Polarization	Approval Agency	Efficiency	Power (Watts)	Output Connector [diameter]	Output Connector [x]	Output Connector	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]
SL POWER / Advanced Energy ME40A1203C01	0.551 lb	249.93 g	Medical	Wall Mount	NEMA 1-15P	-20 ░C	50 °C	3.4 A	North America	Cord (Sold Separately)	3.78 in	2.17 "	96 mm	1.32 in	33.6 mm	55 mm	100 mW	12 V	57 in	1.45 m	264 VAC	90 VAC	Positive Center	CB CE DEMKO UL	Level VI	41 W	2.5 mm 5.5 mm	9.5 mm	Barrel Plug
SL POWER / Advanced Energy ME40A1203Q01	0.551 lb	249.93 g	Medical	Desktop (Class II)	IEC 320-C18	-20 ░C	50 °C	3.4 A	International	Cord (Sold Separately)			3.76 in		1.22 in	2.13 in	100 mW	12 V	57 in	1.45 m	264 VAC	90 VAC	Positive Center	CB CE DEMKO UL	Level VI	41 W	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	95.5 mm	54 mm	31 mm

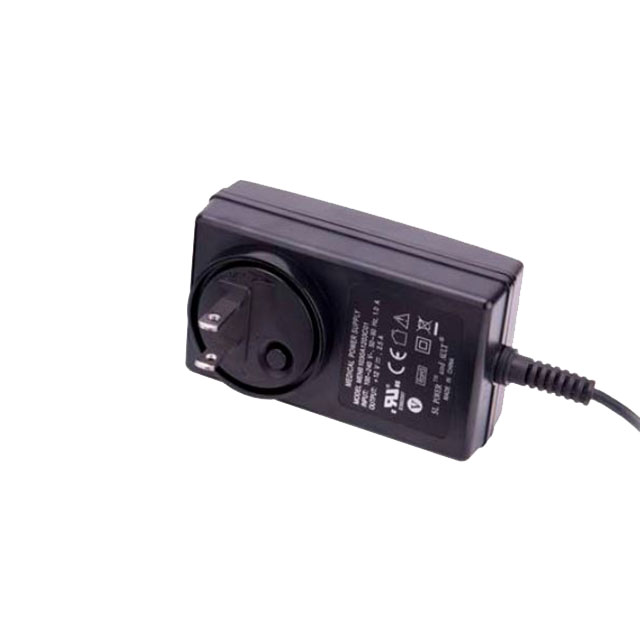

SL POWER / Advanced Energy ME40A1203B01	0.551 lb	249.93 g	Medical	Wall Mount	NEMA 1-15P Multi-Blade	-20 ░C	50 °C	3.4 A	North America	Fixed Blade Multi-Blade	3.78 in	2.17 "	96 mm	1.32 in	33.6 mm	55 mm	100 mW	12 V	57 in	1.45 m	264 VAC	90 VAC	Positive Center	CB CE DEMKO UL	Level VI	41 W	2.5 mm 5.5 mm	9.5 mm	Barrel Plug
SL POWER / Advanced Energy ME40A1203F01			Medical	Desktop (Class I)	IEC 320-C14	-20 ░C	50 °C	3.4 A	International	Cord (Sold Separately)			3.76 in		1.22 in	2.13 in	100 mW	12 V	57 in	1.45 m	264 VAC	90 VAC	Positive Center	CB CE DEMKO UL	Level VI	41 W	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	95.5 mm	54 mm	31 mm
