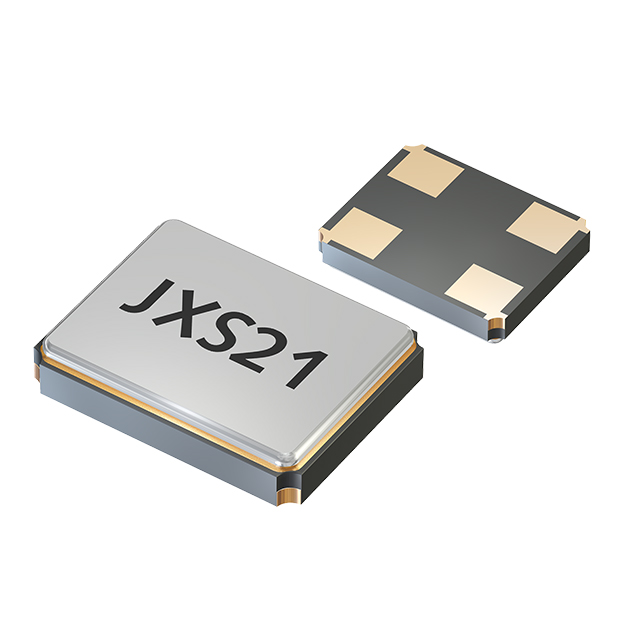

JXS21 Series

Catalog

CRYSTAL 20.0000MHZ 9PF SMD

...

Part	Mounting Type	Type	Operating Mode	Frequency Tolerance	Operating Temperature [Min]	Operating Temperature [Max]	Frequency Stability	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Load Capacitance	ESR (Equivalent Series Resistance)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Package / Case	Frequency
Jauch Quartz Q 20,0-JXS21-9-10/10-FU-WA-LF	Surface Mount	MHz Crystal	Fundamental	10 ppm	-20 ░C	70 °C	10 ppm	1.6 mm	0.079 in	0.063 "	2 mm	9 pF	100 Ohms	0.55 mm	0.022 in	4-SMD No Lead	20 MHz
Jauch Quartz Q 26,0-JXS21-8-10/15-T1-FU-WA-LF	Surface Mount	MHz Crystal	Fundamental	10 ppm	-40 C	85 °C	15 ppm	1.6 mm	0.079 in	0.063 "	2 mm	8 pF	60 Ohms	0.55 mm	0.022 in	4-SMD No Lead	26 MHz
Jauch Quartz Q 48,0-JXS21-12-10/15-T1-FU-WA-LF	Surface Mount	MHz Crystal	Fundamental	10 ppm	-40 C	85 °C	15 ppm	1.6 mm	0.079 in	0.063 "	2 mm	12 pF	50 Ohms	0.55 mm	0.022 in	4-SMD No Lead	48 MHz
Jauch Quartz Q 52,0-JXS21-12-10/15-T1-FU-WA-LF	Surface Mount	MHz Crystal	Fundamental	10 ppm	-40 C	85 °C	15 ppm	1.6 mm	0.079 in	0.063 "	2 mm	12 pF	50 Ohms	0.55 mm	0.022 in	4-SMD No Lead	52 MHz
Jauch Quartz Q 40,0-JXS21-10-10/10-FU-WA-LF	Surface Mount	MHz Crystal	Fundamental	10 ppm	-20 ░C	70 °C	10 ppm	1.6 mm	0.079 in	0.063 "	2 mm	10 pF	50 Ohms	0.55 mm	0.022 in	4-SMD No Lead	40 MHz
Jauch Quartz Q 26,0-JXS21-9-10/15-T1-FU-WA-LF	Surface Mount	MHz Crystal	Fundamental	10 ppm	-40 C	85 °C	15 ppm	1.6 mm	0.079 in	0.063 "	2 mm	9 pF	60 Ohms	0.55 mm	0.022 in	4-SMD No Lead	26 MHz
Jauch Quartz Q 16,0-JXS21-8-10/10-WA-LF	Surface Mount	MHz Crystal	Fundamental	10 ppm	-20 ░C	70 °C	10 ppm	1.6 mm	0.079 in	0.063 "	2 mm	8 pF		0.55 mm	0.022 in	4-SMD No Lead	16 MHz
Jauch Quartz Q 52,0-JXS21-10-10/10-FU-WA-LF	Surface Mount	MHz Crystal	Fundamental	10 ppm	-20 ░C	70 °C	10 ppm	1.6 mm	0.079 in	0.063 "	2 mm	10 pF	50 Ohms	0.55 mm	0.022 in	4-SMD No Lead	52 MHz
Jauch Quartz Q 20,0-JXS21-10-10/10-FU-WA-LF	Surface Mount	MHz Crystal	Fundamental	10 ppm	-20 ░C	70 °C	10 ppm	1.6 mm	0.079 in	0.063 "	2 mm	10 pF	100 Ohms	0.55 mm	0.022 in	4-SMD No Lead	20 MHz
Jauch Quartz Q 25,0-JXS21-10-10/10-FU-WA-LF	Surface Mount	MHz Crystal	Fundamental	10 ppm	-20 ░C	70 °C	10 ppm	1.6 mm	0.079 in	0.063 "	2 mm	10 pF	60 Ohms	0.55 mm	0.022 in	4-SMD No Lead	25 MHz
