66010 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

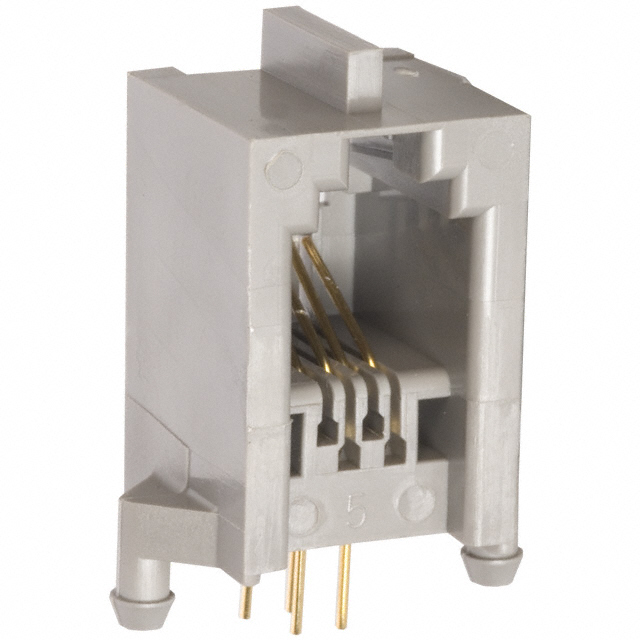

CONN MOD JACK R/A 4P4C
| Part | Shielding | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Ratings | Number of Positions/Contacts | Number of Ports | Termination | Housing Material | Contact Finish | LED Color | Contact Material | Number of Rows | Orientation | Connector Type | Tab Direction | Features | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (FCI) | Unshielded | 0.76 Ám | 30 Áin | Through Hole | Cat3 | 4p4c | 1 | Solder | Polyamide (PA) Nylon | Gold | Does Not Contain LED | Phosphor Bronze | 1 | 90 ° | Jack | Up | |||
Amphenol ICC (FCI) | Unshielded | 0.76 Ám | 30 Áin | Through Hole | Cat3 | 4p4c | 1 | Solder | Polyamide (PA) Nylon | Gold | Does Not Contain LED | Phosphor Bronze | 1 | 90 ° | Jack | Up | Board Lock Panel Stops | 50 °C | -55 °C |
Amphenol ICC (FCI) | Unshielded | 0.127 µm | 5 µin | Through Hole | Cat3 | 4p4c | 1 | Solder | Polyamide (PA) Nylon | Gold | Does Not Contain LED | Phosphor Bronze | 1 | 90 ° | Jack | Up |
