H11L1 Series

Manufacturer: Everlight Electronics Co Ltd

Catalog

OPTOISO 5KV OPEN COLLECTOR 6SMD

Part	Output Type	Input Type	Package / Case	Supplier Device Package	Data Rate	Inputs - Side 1/Side 2 [custom]	Propagation Delay tpLH / tpHL (Max) [custom]	Propagation Delay tpLH / tpHL (Max) [custom]	Current - DC Forward (If) (Max) [Max]	Voltage - Forward (Vf) (Typ)	Current - Output / Channel	Number of Channels [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Rise / Fall Time (Typ)	Rise / Fall Time (Typ)	Mounting Type	Package / Case	Package / Case
Everlight Electronics Co Ltd H11L1S(TB)	Open Collector	DC	6-SMD Gull Wing	6-SMD	1 MHz	1	4 µs	4 µs	60 mA	1.15 V	50 mA	1	100 °C	-55 C	100 ns	100 ns	Surface Mount
Everlight Electronics Co Ltd H11L1S1(TA)	Open Collector	DC	6-SMD Gull Wing	6-SMD	1 MHz	1	4 µs	4 µs	60 mA	1.15 V	50 mA	1	100 °C	-55 C	100 ns	100 ns	Surface Mount

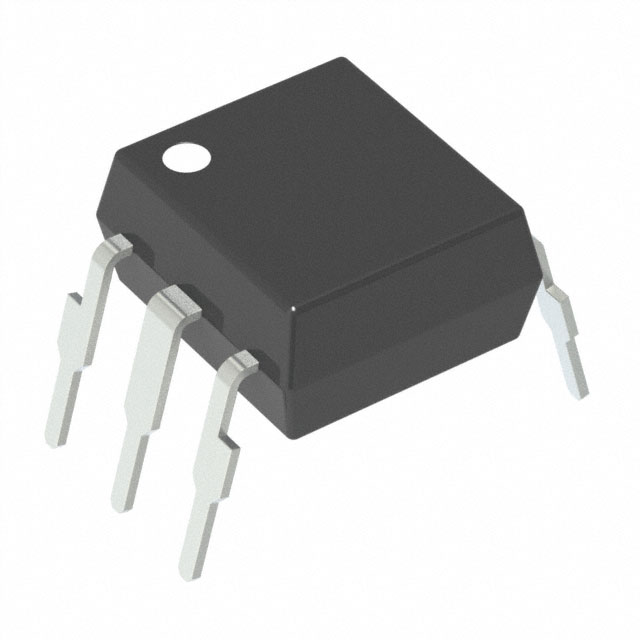

Everlight Electronics Co Ltd H11L1M	Open Collector	DC	6-DIP	6-DIP	1 MHz	1	4 µs	4 µs	60 mA	1.15 V	50 mA	1	100 °C	-55 C	100 ns	100 ns	Through Hole	10.16 mm	0.4 in

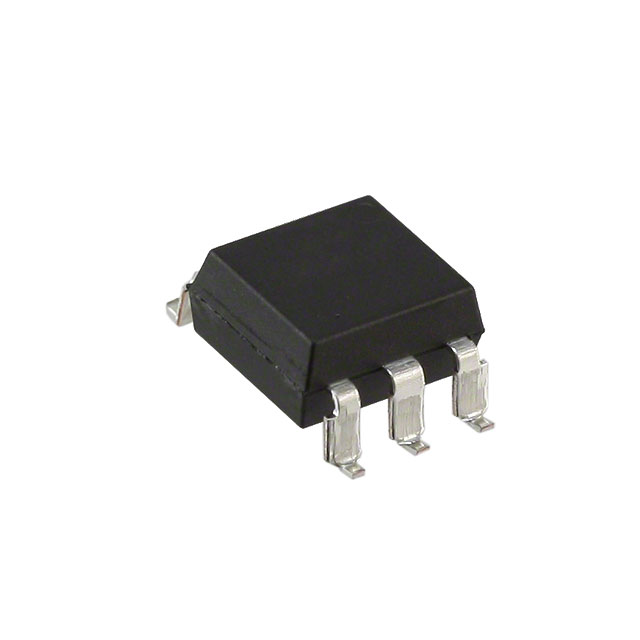

Everlight Electronics Co Ltd H11L1S(TA)	Open Collector	DC	6-SMD Gull Wing	6-SMD	1 MHz	1	4 µs	4 µs	60 mA	1.15 V	50 mA	1	100 °C	-55 C	100 ns	100 ns	Surface Mount
Everlight Electronics Co Ltd H11L1S1(TA)-V	Open Collector	DC	6-SMD Gull Wing	6-SMD	1 MHz	1	4 µs	4 µs	60 mA	1.15 V	50 mA	1	100 °C	-55 C	100 ns	100 ns	Surface Mount
Everlight Electronics Co Ltd H11L1S1(TB)	Open Collector	DC	6-SMD Gull Wing	6-SMD	1 MHz	1	4 µs	4 µs	60 mA	1.15 V	50 mA	1	100 °C	-55 C	100 ns	100 ns	Surface Mount
Everlight Electronics Co Ltd H11L1S(TA)-V	Open Collector	DC	6-SMD Gull Wing	6-SMD	1 MHz	1	4 µs	4 µs	60 mA	1.15 V	50 mA	1	100 °C	-55 C	100 ns	100 ns	Surface Mount
Everlight Electronics Co Ltd H11L1-V	Open Collector	DC	6-DIP (0.300" 7.62mm)	6-DIP	1 MHz	1	4 µs	4 µs	60 mA	1.15 V	50 mA	1	100 °C	-55 C	100 ns	100 ns	Through Hole
