044472 Series

Mini-Fit HCS Header, 4.20mm Pitch, Dual Row, Vertical, with Snap-in Plastic Peg PCB Lock, 24 Circuits, PA Polyamide Nylon 6/6 94V-0, without Drain Holes

Manufacturer: Molex

Catalog

Mini-Fit HCS Header, 4.20mm Pitch, Dual Row, Vertical, with Snap-in Plastic Peg PCB Lock, 24 Circuits, PA Polyamide Nylon 6/6 94V-0, without Drain Holes

Part	Insulation Color	Material Flammability Rating	Connector Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Shrouding	Contact Finish - Post	Row Spacing - Mating	Row Spacing - Mating	Insulation Material	Number of Positions	Style	Contact Shape	Applications	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Rows	Fastening Type	Contact Length - Post	Contact Length - Post	Termination	Insulation Height	Insulation Height	Number of Positions Loaded	Mounting Type	Pitch - Mating	Pitch - Mating	Contact Type	Number of Positions
Molex 444721257
Molex 0444721453	Natural	UL94 V-0	Header	2.54 µm	100 µin	Copper Alloy	Shrouded - 4 Wall	Tin	4.2 mm	0.165 in	Polyamide (PA66) Nylon 6/6	14	Board to Cable/Wire	Square	Automotive General Purpose Industrial Medical Telecommunications	2.54 çm	100 çin	2	Locking Ramp	3.5 mm	0.138 in	Solder	12.8 mm	0.504 in	All	Through Hole	4.2 mm	0.165 in	Male Pin
Molex 0444720651	Natural	UL94 V-0	Header	2.54 µm	100 µin	Copper Alloy	Shrouded - 4 Wall	Tin	4.2 mm	0.165 in	Polyamide (PA66) Nylon 6/6	6	Board to Cable/Wire	Square	Automotive General Purpose Industrial Medical Telecommunications	2.54 çm	100 çin	2	Locking Ramp	3.5 mm	0.138 in	Solder	12.8 mm	0.504 in	All	Through Hole	4.2 mm	0.165 in	Male Pin
Molex 0444720854	Natural	UL94 V-2	Header	2.54 µm	100 µin	Copper Alloy	Shrouded - 4 Wall	Tin	4.2 mm	0.165 in	Polyamide (PA66) Nylon 6/6	8	Board to Cable/Wire	Square	Automotive General Purpose Industrial Medical Telecommunications	2.54 çm	100 çin	2	Locking Ramp	3.5 mm	0.138 in	Solder	12.8 mm	0.504 in	All	Through Hole	4.2 mm	0.165 in	Male Pin
Molex 0444720312	Natural	UL94 V-0	Header	2.54 µm	100 µin	Copper Alloy	Shrouded - 4 Wall	Tin			Polyamide (PA66) Nylon 6/6		Board to Cable/Wire	Square	Automotive General Purpose Industrial Medical Telecommunications	2.54 çm	100 çin	1	Locking Ramp	3.5 mm	0.138 in	Solder	12.44 mm	0.49 in	All	Through Hole	4.2 mm	0.165 in	Male Pin

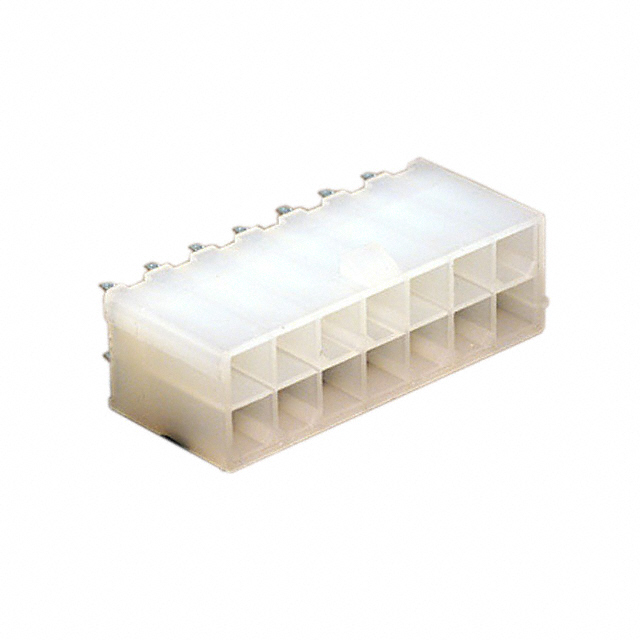

Molex 0444721454	Natural	UL94 V-2	Header	2.54 µm	100 µin	Copper Alloy	Shrouded - 4 Wall	Tin	4.2 mm	0.165 in	Polyamide (PA66) Nylon 6/6	14	Board to Cable/Wire	Square	Automotive General Purpose Industrial Medical Telecommunications	2.54 çm	100 çin	2	Locking Ramp	3.5 mm	0.138 in	Solder	12.8 mm	0.504 in	All	Through Hole	4.2 mm	0.165 in	Male Pin
Molex 0444720655	Natural	UL94 V-0	Header	2.54 µm	100 µin	Copper Alloy	Shrouded - 4 Wall	Tin	4.2 mm	0.165 in	Polyamide (PA66) Nylon 6/6	6	Board to Cable/Wire	Square	Automotive General Purpose Industrial Medical Telecommunications	2.54 çm	100 çin	2	Locking Ramp	3.5 mm	0.138 in	Solder	12.8 mm	0.504 in	All	Through Hole	4.2 mm	0.165 in	Male Pin
Molex 0444721855	Natural	UL94 V-0	Header	2.54 µm	100 µin	Copper Alloy	Shrouded - 4 Wall	Tin	4.2 mm	0.165 in	Polyamide (PA66) Nylon 6/6	18	Board to Cable/Wire	Square	Automotive General Purpose Industrial Medical Telecommunications	2.54 çm	100 çin	2	Locking Ramp	3.5 mm	0.138 in	Solder	12.8 mm	0.504 in	All	Through Hole	4.2 mm	0.165 in	Male Pin
Molex 0444721257	Natural	UL94 V-0	Header	2.54 µm	100 µin	Copper Alloy	Shrouded - 4 Wall	Tin	4.2 mm	0.165 in	Polyamide (PA66) Nylon 6/6	12	Board to Cable/Wire	Square	Automotive General Purpose Industrial Medical Telecommunications	2.54 çm	100 çin	2	Locking Ramp	3.5 mm	0.138 in	Solder	12.8 mm	0.504 in	All	Through Hole	4.2 mm	0.165 in	Male Pin
Molex 0444721653	Natural	UL94 V-0	Header	2.54 µm	100 µin	Copper Alloy	Shrouded - 4 Wall	Tin	4.2 mm	0.165 in	Polyamide (PA66) Nylon 6/6		Board to Cable/Wire	Square	Automotive General Purpose Industrial Medical Telecommunications	2.54 çm	100 çin	2	Locking Ramp	3.5 mm	0.138 in	Solder	12.8 mm	0.504 in	All	Through Hole	4.2 mm	0.165 in	Male Pin	16
