8164 Series
Manufacturer: Belden Inc.
Beta
⌘K

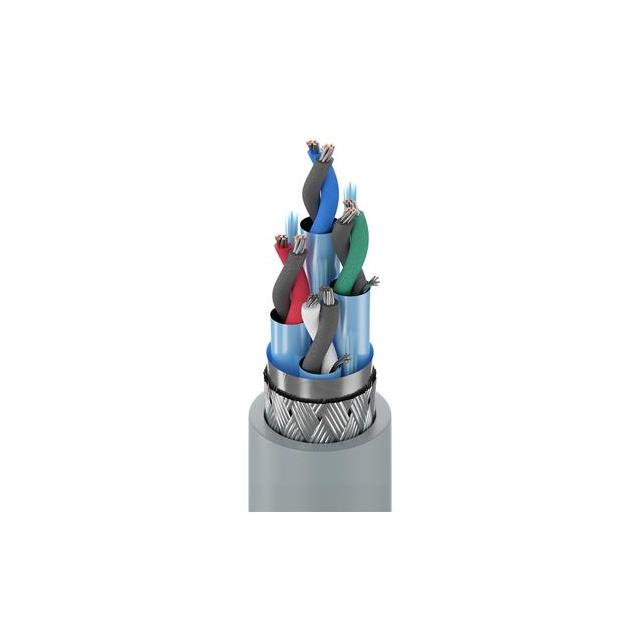

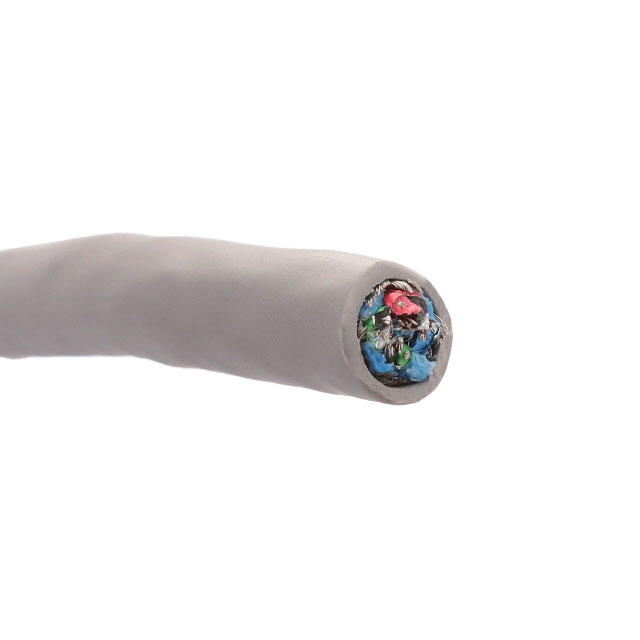

MULTI-PAIR 8COND 24AWG
| Part | Shield Material | Shield Coverage | Wire Gauge | Usage | Voltage | Length | Length | Ratings | Shield Type | Cable Type | Jacket (Insulation) Material | Conductor Material | Features | Operating Temperature [Max] | Operating Temperature [Min] | Jacket Color | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Insulation | Number of Conductors | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum Copper Tinned | 65 % 100 % | 24 AWG | Computer | 300 VDC | 304.8 m | 1000 ft | UL Style 2493 | Braid Foil | Multi-Pair | Poly-Vinyl Chloride (PVC) | Copper Tinned | Drain Wire | 60 °C | -40 C | Chrome | 7 | 32 AWG | 9.86 mm | 0.388 " | Foam Polyethylene (FPE) | 8 | 1.219 mm | 0.048 in | ||
Belden Inc. | Aluminum Copper Tinned | 65 % 100 % | 24 AWG | Computer | 300 VDC | 152.4 m | 500 ft | UL Style 2493 | Braid Foil | Multi-Pair | Poly-Vinyl Chloride (PVC) | Copper Tinned | Drain Wire | 60 °C | -40 C | Chrome | 7 | 32 AWG | 9.86 mm | 0.388 " | Foam Polyethylene (FPE) | 8 | 1.219 mm | 0.048 in | ||
 Belden Inc. | Aluminum Copper Tinned | 65 % 100 % | 24 AWG | Computer | UL Style 2493 | Braid Foil | Multi-Pair | Poly-Vinyl Chloride (PVC) | Copper Tinned | Drain Wire | 60 °C | -40 C | Chrome | 7 | 32 AWG | 9.86 mm | 0.388 " | Foam Polyethylene (FPE) | 8 | 1.219 mm | 0.048 in | 100 ft | 30.5 m |
