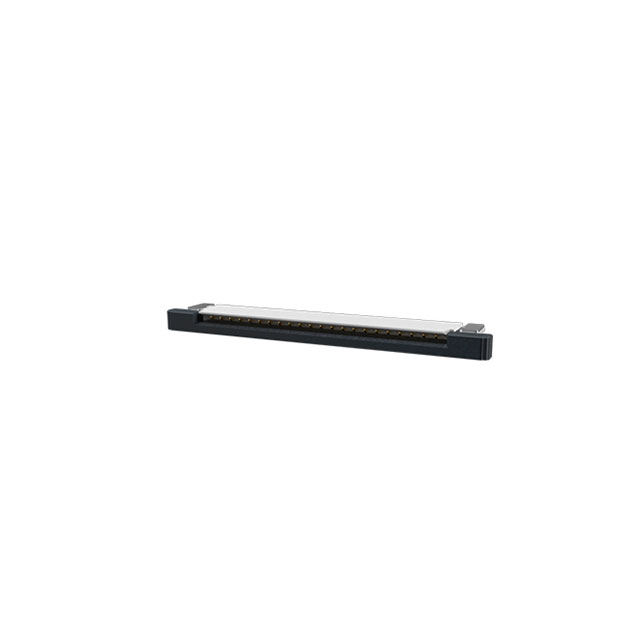

F52Q-1A7H1 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K
CONN FFC FPC TOP 9POS 1MM R/A
| Part | Material Flammability Rating | Current Rating (Amps) | Cable End Type | Operating Temperature [Min] | Operating Temperature [Max] | Housing Material | Pitch [x] | Pitch [x] | Flat Flex Type | Contact Finish Thickness | Contact Finish Thickness | Features | Connector/Contact Type | Housing Color | Mating Cycles | Contact Material | Height Above Board | Height Above Board | Actuator Material | Contact Finish | FFC, FCB Thickness | Number of Positions | Mounting Type | Termination | Voltage Rating | Locking Feature | Actuator Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (FCI) | UL94 V-0 | 0.5 A | Tapered | -40 °C | 105 ░C | Glass Filled Halogen Free Liquid Crystal Polymer (LCP) | 0.039 in | 1 mm | FFC FPC | 1.97 Áin | 0.05 Ám | Solder Retention Zero Insertion Force (ZIF) | Contacts Top | Natural | 30 | Phosphor Bronze | 0.079 in | 2 mm | Polyamide (PA9T) Nylon 9T Glass Filled Halogen Free | Gold | 0.3 mm | 9 | Surface Mount Right Angle | Solder | 50 V | Slide Lock | Black |
Amphenol ICC (FCI) | UL94 V-0 | 0.5 A | Tapered | -40 °C | 105 ░C | Glass Filled Halogen Free Liquid Crystal Polymer (LCP) | 0.039 in | 1 mm | FFC FPC | 1.97 Áin | 0.05 Ám | Solder Retention Zero Insertion Force (ZIF) | Contacts Top | Natural | 30 | Phosphor Bronze | 0.079 in | 2 mm | Polyamide (PA9T) Nylon 9T Glass Filled Halogen Free | Gold | 0.3 mm | 4 | Surface Mount Right Angle | Solder | 50 V | Slide Lock | Black |
Amphenol ICC (FCI) | UL94 V-0 | 0.5 A | Tapered | -40 °C | 105 ░C | Glass Filled Halogen Free Liquid Crystal Polymer (LCP) | 0.039 in | 1 mm | FFC FPC | 1.97 Áin | 0.05 Ám | Solder Retention Zero Insertion Force (ZIF) | Contacts Top | Natural | 30 | Phosphor Bronze | 0.079 in | 2 mm | Polyamide (PA9T) Nylon 9T Glass Filled Halogen Free | Gold | 0.3 mm | 18 | Surface Mount Right Angle | Solder | 50 V | Slide Lock | Black |
