1215-3 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K
CONN PC PIN SQUARE 0.025 GOLD
| Part | Contact Material | Mounting Type | Length - Overall [x] | Length - Overall [x] | Contact Finish | Insulation | Flange Diameter [diameter] | Flange Diameter [diameter] | Terminal Type | Contact Finish Thickness | Contact Finish Thickness | Terminal Style | Length - Above Flange [x] | Length - Above Flange [x] | Pin Size - Above Flange | Pin Size - Above Flange | Termination | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

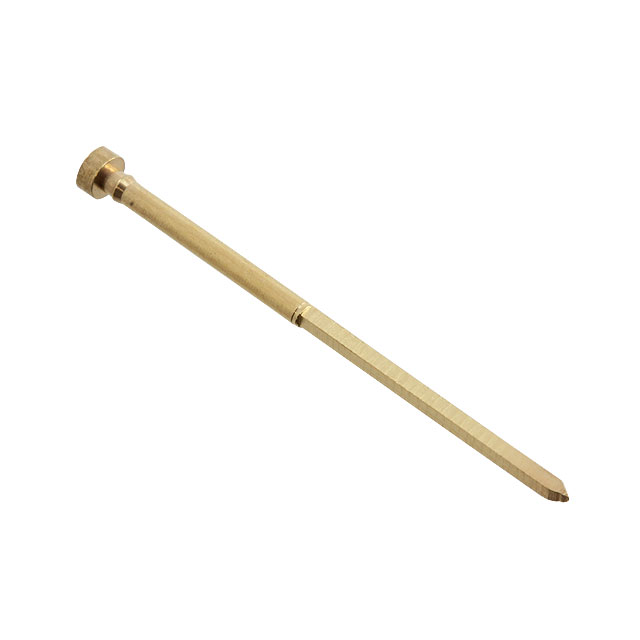

 Mill-Max Manufacturing Corp. | Brass Alloy | Through Hole | 22.86 mm | 0.9 " | Gold | Non-Insulated | 0.072 " | 1.83 mm | PC Pin | 0.25 Ám | 10 Áin | Single End | 0.87 in | 22.1 mm | 0.025 in | 0.64 mm | Press-Fit Wire Wrap | 0.043 in | 1.09 mm |

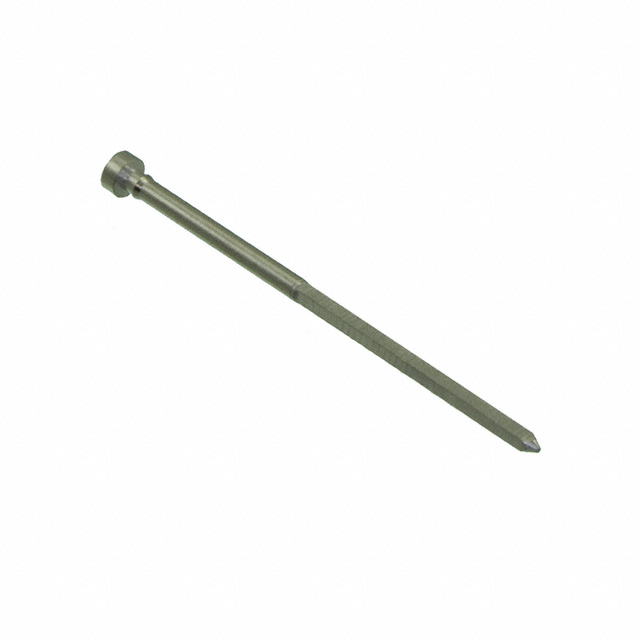

 Mill-Max Manufacturing Corp. | Brass Alloy | Through Hole | 22.86 mm | 0.9 " | Tin | Non-Insulated | 0.072 " | 1.83 mm | PC Pin | 5.08 Ám | 200 Áin | Single End | 0.87 in | 22.1 mm | 0.025 in | 0.64 mm | Press-Fit Wire Wrap | 0.043 in | 1.09 mm |
 Mill-Max Manufacturing Corp. | Brass Alloy | Through Hole | 22.86 mm | 0.9 " | Gold | Non-Insulated | 0.072 " | 1.83 mm | PC Pin | 0.51 µm | 20 µin | Single End | 0.87 in | 22.1 mm | 0.025 in | 0.64 mm | Press-Fit Wire Wrap | 0.043 in | 1.09 mm |
Mill-Max Manufacturing Corp. | Brass Alloy | Through Hole | 22.86 mm | 0.9 " | Tin-Lead | Non-Insulated | 0.072 " | 1.83 mm | PC Pin | 5.08 Ám | 200 Áin | Single End | 0.87 in | 22.1 mm | 0.025 in | 0.64 mm | Press-Fit Wire Wrap | 0.043 in | 1.09 mm |
