02K123 Series
Manufacturer: Rosenberger
Beta
⌘K
PRECISION 2.92 ADAPTER
| Part | Mating Cycles | Dielectric Material | Insertion Loss | Operating Temperature [Max] | Operating Temperature [Min] | Body Material | Center Contact Material | Center Contact Plating | Mounting Type | Convert From (Adapter End) | Convert From (Adapter End) | Convert From (Adapter End) | Impedance | Convert To (Adapter End) | Adapter Series | Conversion Type | Frequency - Max [Max] | Adapter Type | Style | Center Gender | Convert To (Adapter End) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

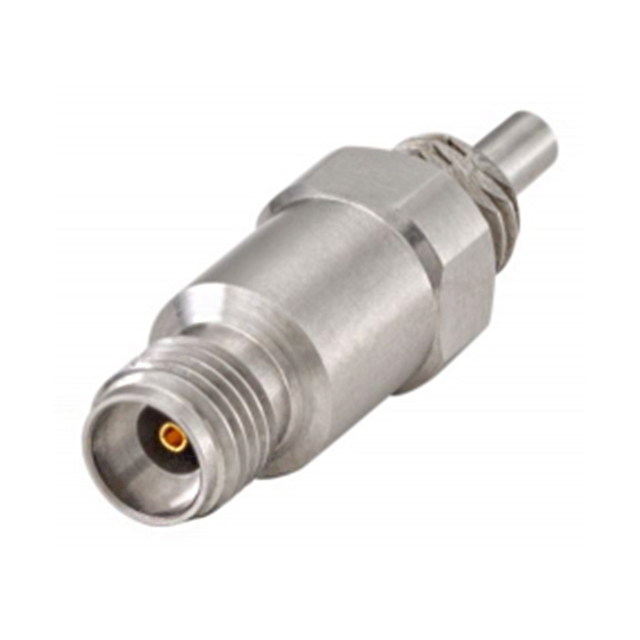

 Rosenberger | 500 | Polystyrene (PS) Polytetrafluoroethylene (PTFE) | 0.25 dB | 85 °C | -40 C | Stainless Steel | Beryllium Copper | Gold | Free Hanging (In-Line) | OS-2.9 | Jack Female Socket | 2.92 mm | 50 Ohms | 2.92mm (OS-2.9) Plug Male Pin | RPC-2.92 to RPC-2.92 | Same Series | 40 GHz | Plug to Jack | Straight | ||

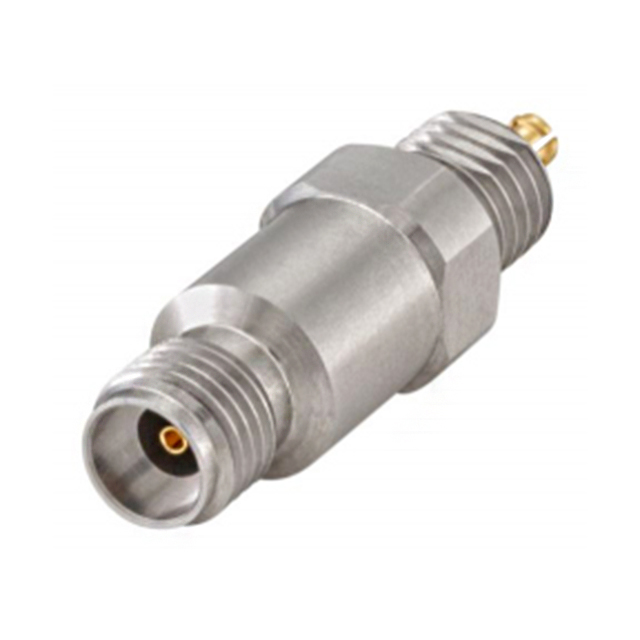

 Rosenberger | 500 | Polystyrene (PS) Polytetrafluoroethylene (PTFE) | 0.25 dB | 85 °C | -40 C | Stainless Steel | Beryllium Copper | Gold | Free Hanging (In-Line) | OS-2.9 | Jack Female Socket | 2.92 mm | 50 Ohms | Jack Female Socket | RPC-2.92 to RPC-2.92 | Same Series | 40 GHz | Jack to Jack | Straight | Female to Female | 2.92 mm |
