KK Plus 250 Header, 2.50mm Pitch, Vertical, Fully Shrouded, Tin (Sn) Plating, 5 Circuits, with Peg, Glow-Wire Capable
KK Plus 250 Header, 2.50mm Pitch, Vertical, Fully Shrouded, Tin (Sn) Plating, 5 Circuits, with Peg, Glow-Wire Capable
KK Plus 250 Header, 2.50mm Pitch, Vertical, Fully Shrouded, Tin (Sn) Plating, 5 Circuits, with Peg, Glow-Wire Capable
| Part | Number of Rows | Mounting Type | Insulation Color | Features | Number of Positions | Fastening Type | Current Rating (Amps) | Insulation Height | Insulation Height | Contact Length - Post | Contact Length - Post | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Insulation Material | Contact Type | Termination | Connector Type | Pitch - Mating | Pitch - Mating | Style | Contact Shape | Material Flammability Rating | Number of Positions Loaded | Contact Finish - Post | Shrouding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

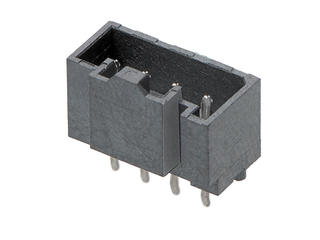

 Molex | 1 | Through Hole | Black | Board Guide | 4 | Latch Holder | Varies by Wire Gauge | 0.264 in | 6.7 mm | 0.136 in | 3.46 mm | 250 VAC | -40 C | 105 ░C | Brass Alloy | Liquid Crystal Polymer (LCP) | Male Pin | Solder | Header | 2.5 mm | 0.098 in | Board to Cable/Wire | Square | UL94 V-0 | All | Tin | Shrouded - 4 Wall |
 Molex | 1 | Through Hole | Black | Board Guide | Latch Holder | Varies by Wire Gauge | 0.264 in | 6.7 mm | 0.136 in | 3.46 mm | 250 VAC | -40 C | 105 ░C | Brass Alloy | Liquid Crystal Polymer (LCP) | Male Pin | Solder | Header | 2.5 mm | 0.098 in | Board to Cable/Wire | Square | UL94 V-0 | All | Tin | Shrouded - 4 Wall | |
 Molex | 1 | Through Hole | Black | Board Guide | 5 | Latch Holder | Varies by Wire Gauge | 0.264 in | 6.7 mm | 0.136 in | 3.46 mm | 250 VAC | -40 C | 105 ░C | Brass Alloy | Liquid Crystal Polymer (LCP) | Male Pin | Solder | Header | 2.5 mm | 0.098 in | Board to Cable/Wire | Square | UL94 V-0 | All | Tin | Shrouded - 4 Wall |
 Molex | 1 | Through Hole | Black | Board Guide | 2 | Latch Holder | Varies by Wire Gauge | 0.264 in | 6.7 mm | 0.136 in | 3.46 mm | 250 VAC | -40 C | 105 ░C | Brass Alloy | Liquid Crystal Polymer (LCP) | Male Pin | Solder | Header | 2.5 mm | 0.098 in | Board to Cable/Wire | Square | UL94 V-0 | All | Tin | Shrouded - 4 Wall |
