A1DXB Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

IDC CABLE- AKR20B/AE20G/X

Part	Features	Shielding	Pitch - Cable	Pitch - Cable	Cable Termination	Connector Type	Number of Positions	Number of Rows [custom]	Length	Length	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Pitch - Connector	Pitch - Connector	Color	Number of Positions [custom]

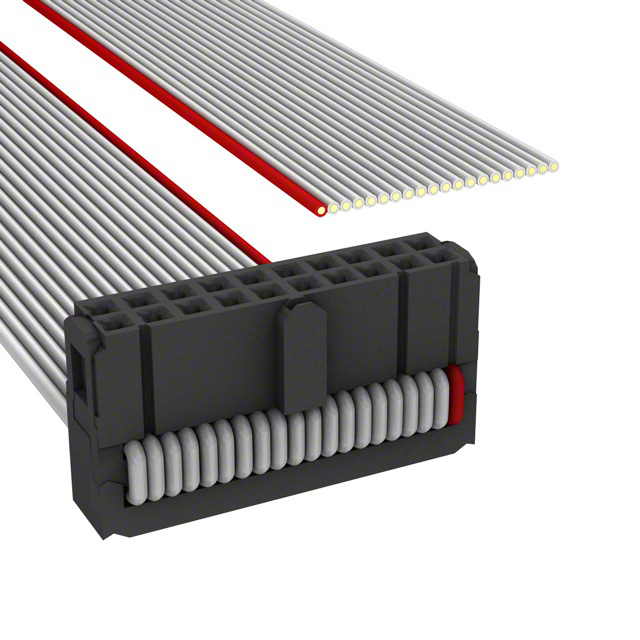

TE Connectivity AMP Connectors A1DXB-2036G	Polarizing Key Strain Relief	Unshielded	0.05 in	1.27 mm	IDC	Socket to Cable	20	2	91.44 cm	3 ft	Gold	30 Áin	0.76 Ám	0.1 in	2.54 mm
TE Connectivity AMP Connectors A1DXB-1036G	Polarizing Key Strain Relief	Unshielded	0.05 in	1.27 mm	IDC	Socket to Cable	10	2	91.44 cm	3 ft	Gold	30 Áin	0.76 Ám	0.1 in	2.54 mm
TE Connectivity AMP Connectors A1DXB-1036M	Polarizing Key Strain Relief	Unshielded	0.05 in	1.27 mm	IDC	Socket to Cable	10	2	91.44 cm	3 ft	Gold	30 Áin	0.76 Ám	0.1 in	2.54 mm	Multiple Ribbon
TE Connectivity AMP Connectors A1DXB-3036G	Polarizing Key Strain Relief	Unshielded	0.05 in	1.27 mm	IDC	Socket to Cable	30	2	91.44 cm	3 ft	Gold	30 Áin	0.76 Ám	0.1 in	2.54 mm
TE Connectivity AMP Connectors A1DXB-4436G	Polarizing Key Strain Relief	Unshielded	0.05 in	1.27 mm	IDC	Socket to Cable	44	2	91.44 cm	3 ft	Gold	30 Áin	0.76 Ám	0.1 in	2.54 mm

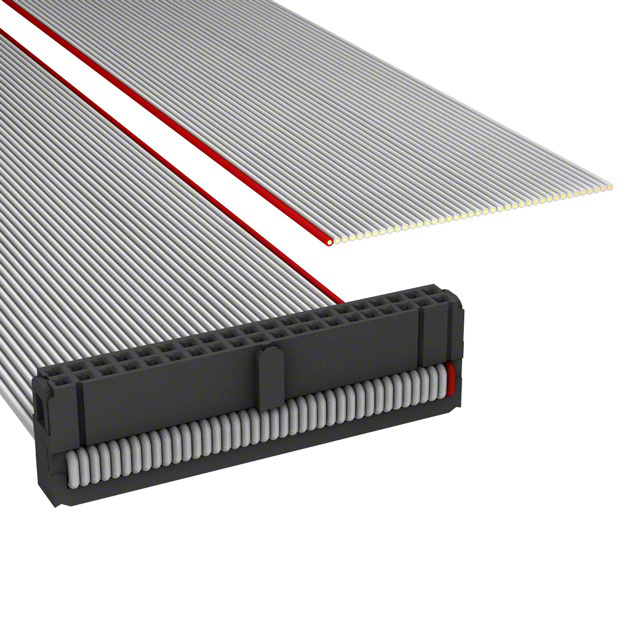

TE Connectivity AMP Connectors A1DXB-4036G	Polarizing Key Strain Relief	Unshielded	0.05 in	1.27 mm	IDC	Socket to Cable	40	2	91.44 cm	3 ft	Gold	30 Áin	0.76 Ám	0.1 in	2.54 mm
TE Connectivity AMP Connectors A1DXB-1436G	Polarizing Key Strain Relief	Unshielded	0.05 in	1.27 mm	IDC	Socket to Cable	14	2	91.44 cm	3 ft	Gold	30 Áin	0.76 Ám	0.1 in	2.54 mm
TE Connectivity AMP Connectors A1DXB-1636M	Polarizing Key Strain Relief	Unshielded	0.05 in	1.27 mm	IDC	Socket to Cable	16	2	91.44 cm	3 ft	Gold	30 Áin	0.76 Ám	0.1 in	2.54 mm	Multiple Ribbon
TE Connectivity AMP Connectors A1DXB-3436G	Polarizing Key Strain Relief	Unshielded	0.05 in	1.27 mm	IDC	Socket to Cable		2	91.44 cm	3 ft	Gold	30 Áin	0.76 Ám	0.1 in	2.54 mm		34

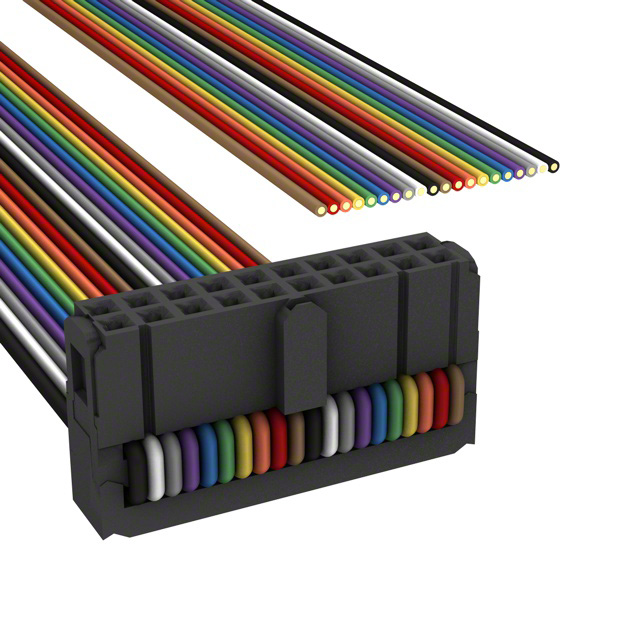

TE Connectivity AMP Connectors A1DXB-2036M	Polarizing Key Strain Relief	Unshielded	0.05 in	1.27 mm	IDC	Socket to Cable	20	2	91.44 cm	3 ft	Gold	30 Áin	0.76 Ám	0.1 in	2.54 mm	Multiple Ribbon
