075784 Series

Manufacturer: Molex

Catalog

CONN MINI SAS RCPT 36POS SLD SMD

Part	Connector Type	Number of Positions	Features	Mounting Type	Termination	Contact Finish Thickness	Contact Finish Thickness	Connector Style	Contact Finish
Molex 0757840111	Mini SAS	36	Board Guide	Surface Mount	Solder	15 µin	0.38 µm	Receptacle	Gold
Molex 0757840110	Mini SAS	36	Board Guide	Surface Mount	Solder	15 µin	0.38 µm	Receptacle	Gold
Molex 0757840327	Mini SAS	68	Board Guide	Surface Mount	Solder	30 Áin	0.76 Ám	Receptacle	Gold
Molex 0757840501

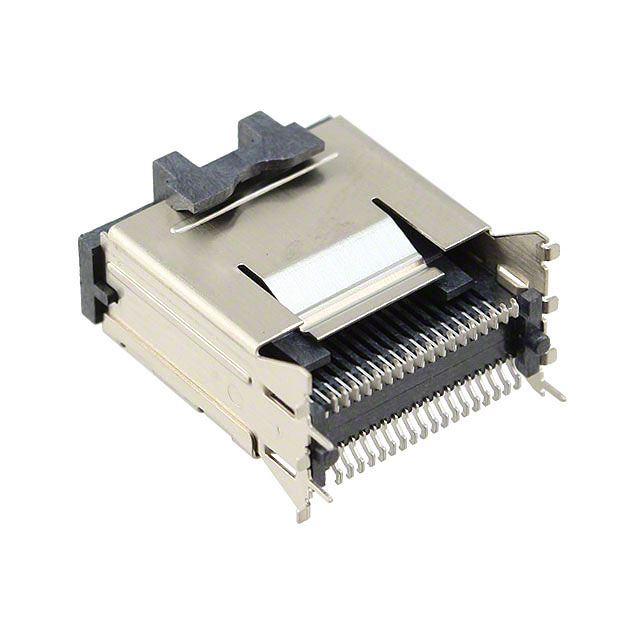

Molex 0757840126	Mini SAS	36	Board Guide	Surface Mount	Solder	15 µin	0.38 µm	Receptacle	Gold
Molex 0757840138	Mini SAS	36	Board Guide	Surface Mount	Solder	15 µin	0.38 µm	Receptacle	Gold
Molex 0757840120	Mini SAS	36	Board Guide	Surface Mount	Solder	30 Áin	0.76 Ám	Receptacle	Gold
Molex 0757840326	Mini SAS	68	Board Guide	Surface Mount	Solder	15 µin	0.38 µm	Receptacle	Gold
Molex 0757840140	Mini SAS	36	Board Guide	Surface Mount	Solder	15 µin	0.38 µm	Receptacle	Gold
Molex 0757840159	Mini SAS	36	Board Guide	Surface Mount	Solder	30 Áin	0.76 Ám	Receptacle	Gold
