8J1012 Series
Manufacturer: Nidec Components Corporation
Beta
⌘K

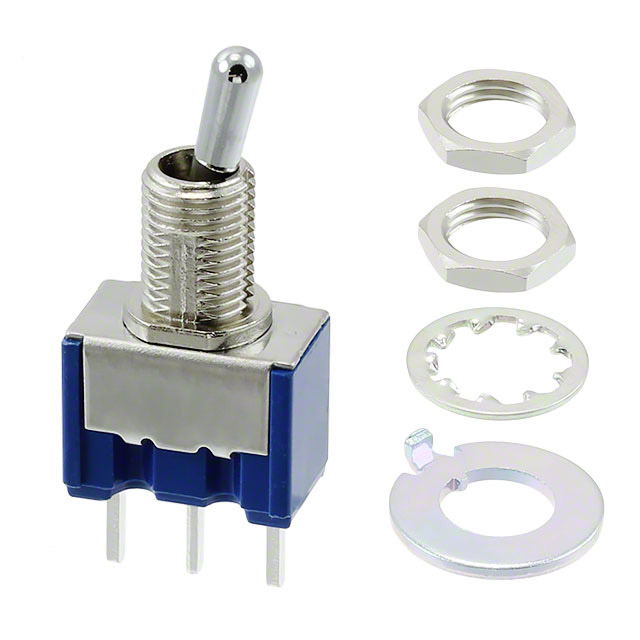

SWITCH TOGGLE SPDT 6A 125V
| Part | Electrical Life | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating - DC | Current Rating (Amps) | Switch Function | Panel Cutout Dimensions [diameter] | Mounting Type | Actuator Length [x] | Actuator Type | Bushing Thread | Voltage Rating - AC | Circuit | Illumination | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Nidec Components Corporation | 50000 Cycles | 85 °C | -30 ░C | 30 V | 4 A 6 A | On-On | 6.5 mm | Through Hole | 6.8 mm | Standard Round | 1/4-40 | 125 V | SPDT | Non-Illuminated | PC Pin |
