1734592 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

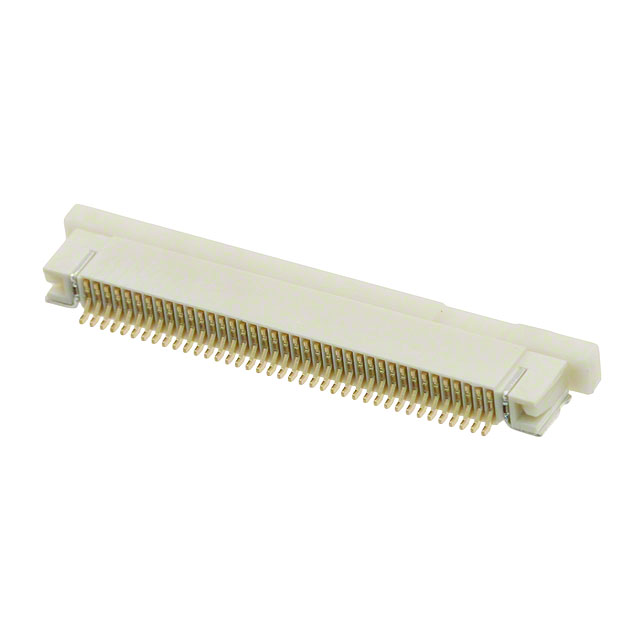

CONN FPC BOTTOM 46POS 0.5MM R/A

Part	Number of Positions	Material Flammability Rating	Connector/Contact Type	Contact Finish	Housing Material	Mounting Type	Termination	Height Above Board [z]	Height Above Board [z]	Housing Color	Operating Temperature [Max]	Operating Temperature [Min]	Flat Flex Type	Current Rating (Amps)	Cable End Type	FFC, FCB Thickness	Actuator Material	Locking Feature	Pitch [x]	Pitch [x]	Features	Actuator Color	Voltage Rating	Contact Material	Contact Finish Thickness	Number of Positions

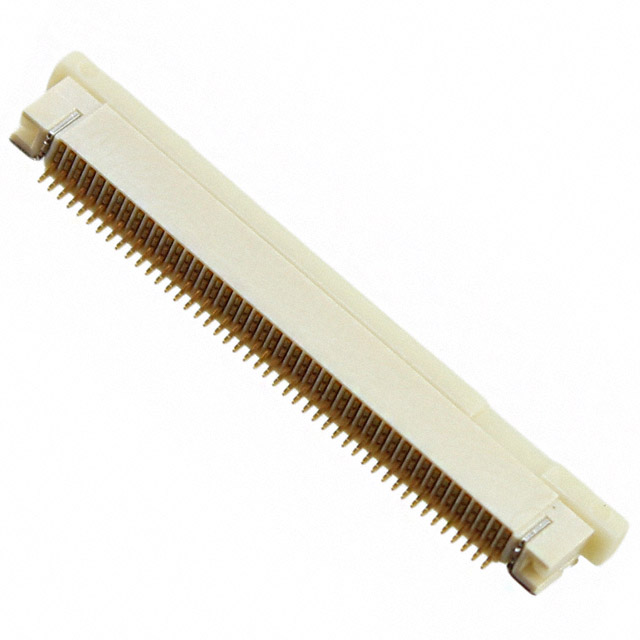

TE Connectivity Raychem Cable Protection 4-1734592-6	46	UL94 V-0	Contacts Bottom	Gold	Liquid Crystal Polymer (LCP)	Surface Mount Right Angle	Solder	0.081 in	2.05 mm	Natural	85 °C	-40 °C	FPC	0.5 A	Tapered	0.3 mm	Thermoplastic	Slide Lock	0.5 mm	0.02 in	Solder Retention Zero Insertion Force (ZIF)	Ivory	250 VDC	Phosphor Bronze	Flash

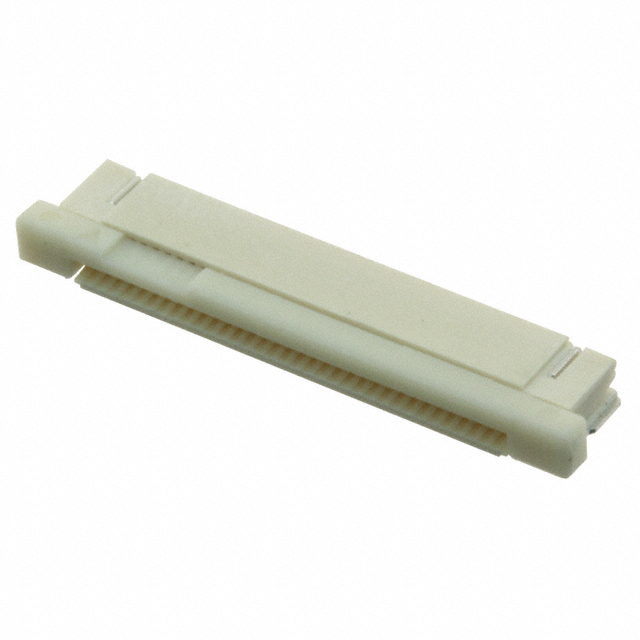

TE Connectivity Raychem Cable Protection 3-1734592-4	34	UL94 V-0	Contacts Bottom	Gold	Liquid Crystal Polymer (LCP)	Surface Mount Right Angle	Solder	0.081 in	2.05 mm	Natural	85 °C	-40 °C	FPC	0.5 A	Tapered	0.3 mm	Thermoplastic	Slide Lock	0.5 mm	0.02 in	Solder Retention Zero Insertion Force (ZIF)	Ivory	250 VDC	Phosphor Bronze	Flash

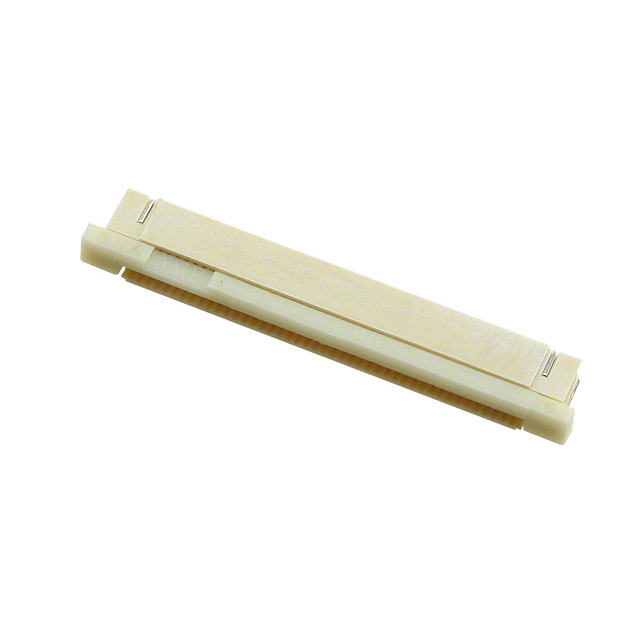

TE Connectivity Raychem Cable Protection 4-1734592-4	44	UL94 V-0	Contacts Bottom	Gold	Liquid Crystal Polymer (LCP)	Surface Mount Right Angle	Solder	0.081 in	2.05 mm	Natural	85 °C	-40 °C	FPC	0.5 A	Tapered	0.3 mm	Thermoplastic	Slide Lock	0.5 mm	0.02 in	Solder Retention Zero Insertion Force (ZIF)	Ivory	250 VDC	Phosphor Bronze	Flash

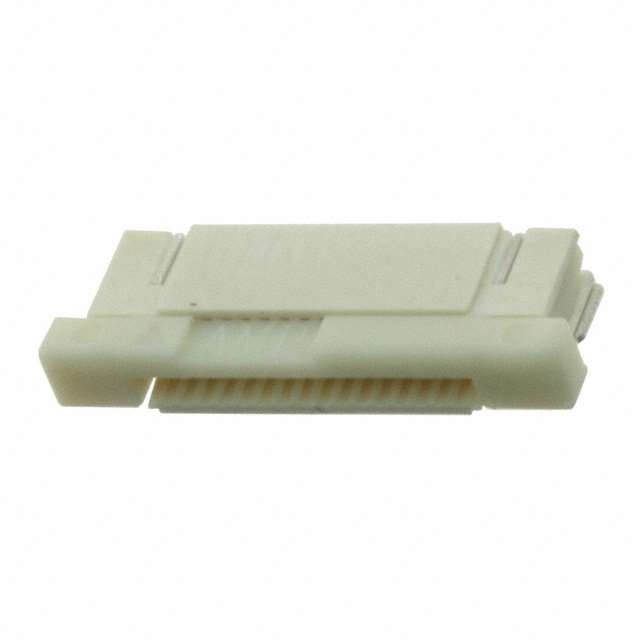

TE Connectivity Raychem Cable Protection 1-1734592-6		UL94 V-0	Contacts Bottom	Gold	Liquid Crystal Polymer (LCP)	Surface Mount Right Angle	Solder	0.081 in	2.05 mm	Natural	85 °C	-40 °C	FPC	0.5 A	Tapered	0.3 mm	Thermoplastic	Slide Lock	0.5 mm	0.02 in	Solder Retention Zero Insertion Force (ZIF)	Ivory	250 VDC	Phosphor Bronze	Flash	16

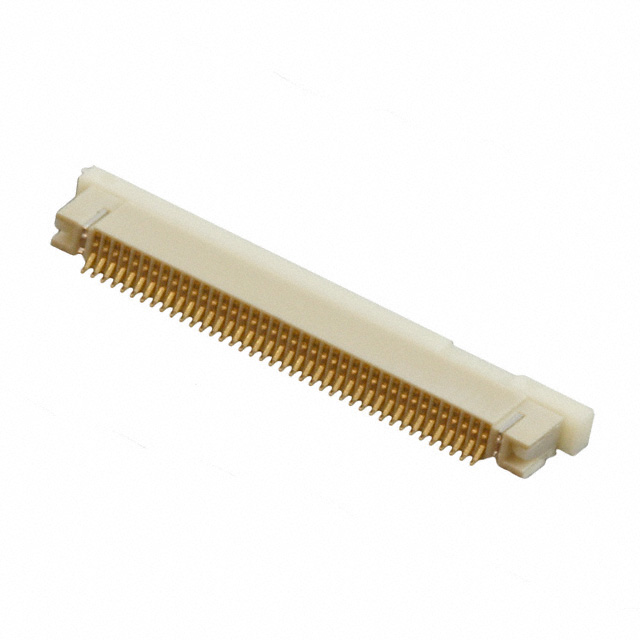

TE Connectivity Raychem Cable Protection 4-1734592-0	40	UL94 V-0	Contacts Bottom	Gold	Liquid Crystal Polymer (LCP)	Surface Mount Right Angle	Solder	0.081 in	2.05 mm	Natural	85 °C	-40 °C	FPC	0.5 A	Tapered	0.3 mm	Thermoplastic	Slide Lock	0.5 mm	0.02 in	Solder Retention Zero Insertion Force (ZIF)	Ivory	250 VDC	Phosphor Bronze	Flash

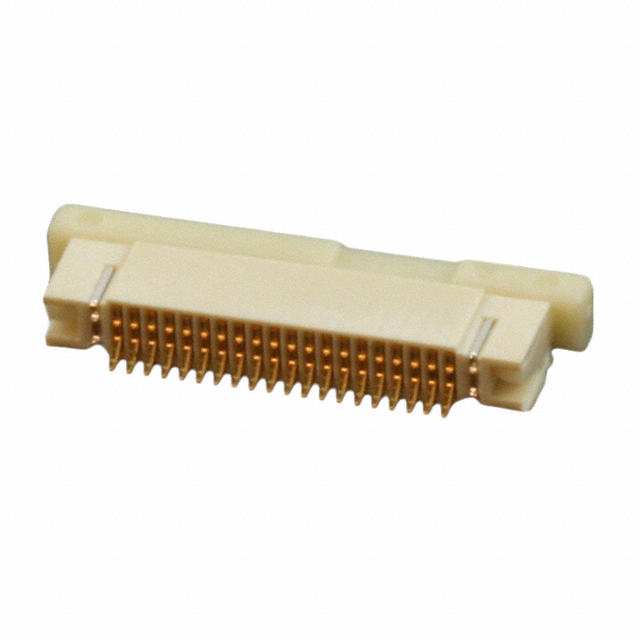

TE Connectivity Raychem Cable Protection 2-1734592-0	20	UL94 V-0	Contacts Bottom	Gold	Liquid Crystal Polymer (LCP)	Surface Mount Right Angle	Solder	0.081 in	2.05 mm	Natural	85 °C	-40 °C	FPC	0.5 A	Tapered	0.3 mm	Thermoplastic	Slide Lock	0.5 mm	0.02 in	Solder Retention Zero Insertion Force (ZIF)	Ivory	250 VDC	Phosphor Bronze	Flash

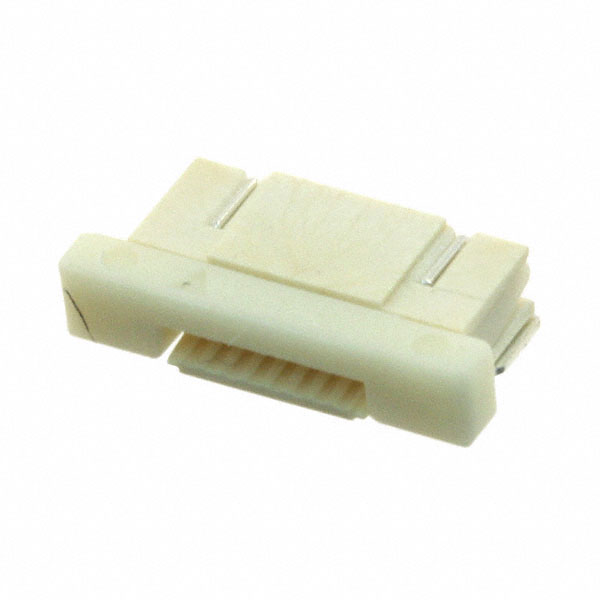

TE Connectivity Raychem Cable Protection 1734592-8	8	UL94 V-0	Contacts Bottom	Gold	Liquid Crystal Polymer (LCP)	Surface Mount Right Angle	Solder	0.081 in	2.05 mm	Natural	85 °C	-40 °C	FPC	0.5 A	Tapered	0.3 mm	Thermoplastic	Slide Lock	0.5 mm	0.02 in	Solder Retention Zero Insertion Force (ZIF)	Ivory	250 VDC	Phosphor Bronze	Flash
TE Connectivity Raychem Cable Protection 2-1734592-5		UL94 V-0	Contacts Bottom	Gold	Liquid Crystal Polymer (LCP)	Surface Mount Right Angle	Solder	0.081 in	2.05 mm	Natural	85 °C	-40 °C	FPC	0.5 A	Tapered	0.3 mm	Thermoplastic	Slide Lock	0.5 mm	0.02 in	Solder Retention Zero Insertion Force (ZIF)	Ivory	250 VDC	Phosphor Bronze	Flash
TE Connectivity Raychem Cable Protection 2-1734592-9	29	UL94 V-0	Contacts Bottom	Gold	Liquid Crystal Polymer (LCP)	Surface Mount Right Angle	Solder	0.081 in	2.05 mm	Natural	85 °C	-40 °C	FPC	0.5 A	Tapered	0.3 mm	Thermoplastic	Slide Lock	0.5 mm	0.02 in	Solder Retention Zero Insertion Force (ZIF)	Ivory	250 VDC	Phosphor Bronze	Flash

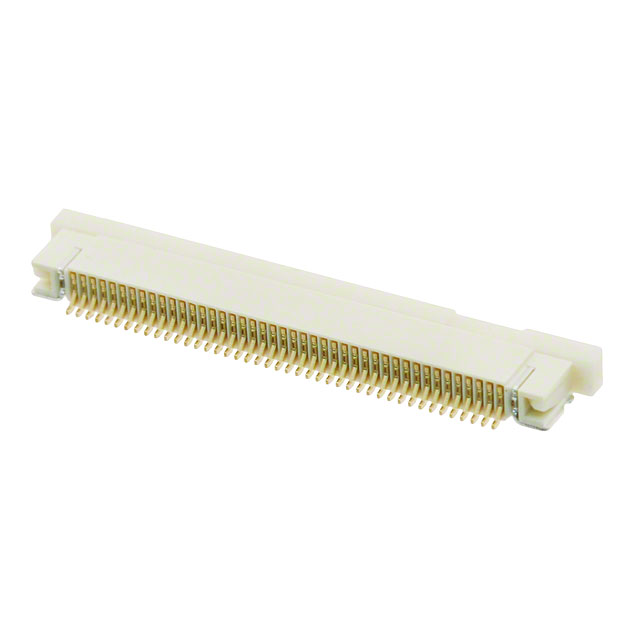

TE Connectivity Raychem Cable Protection 4-1734592-3	43	UL94 V-0	Contacts Bottom	Gold	Liquid Crystal Polymer (LCP)	Surface Mount Right Angle	Solder	0.081 in	2.05 mm	Natural	85 °C	-40 °C	FPC	0.5 A	Tapered	0.3 mm	Thermoplastic	Slide Lock	0.5 mm	0.02 in	Solder Retention Zero Insertion Force (ZIF)	Ivory	250 VDC	Phosphor Bronze	Flash
