PPPC291 Series

Catalog

CONN HDR 29POS 0.1 GOLD PCB

Part	Contact Shape	Insulation Material	Contact Material	Contact Finish Thickness - Post	Contact Length - Post [x]	Contact Length - Post [x]	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Material Flammability Rating	Fastening Type	Insulation Color	Number of Positions	Insulation Height	Insulation Height	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish - Mating	Voltage Rating	Current Rating (Amps)	Number of Rows	Termination	Mounting Type	Contact Type	Contact Length - Post	Contact Length - Post

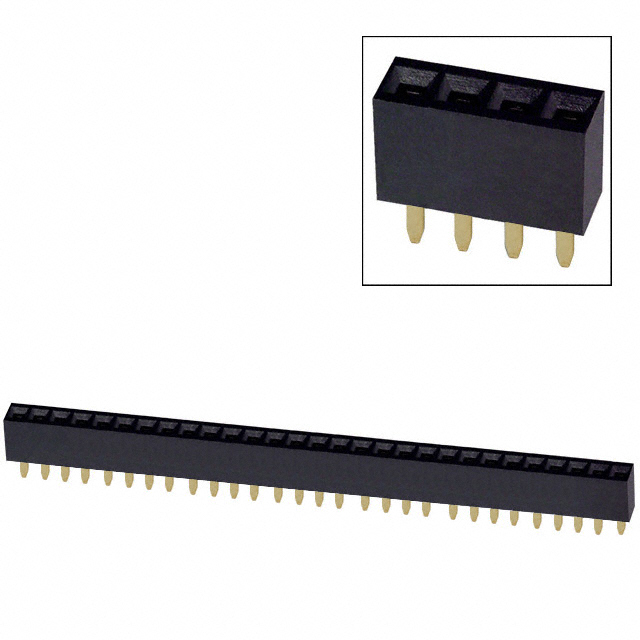

Sullins Connector Solutions PPPC291LFBN-RC	Square	Polyester	Phosphor Bronze	Flash	0.126 "	3.2 mm	Header	-40 C	105 ░C	0.1 "	2.54 mm	Gold	UL94 V-0	Push-Pull	Black	29	0.335 "	8.51 mm	All	Flash	Gold	250 V	3 A	1	Solder	Through Hole	Female Socket

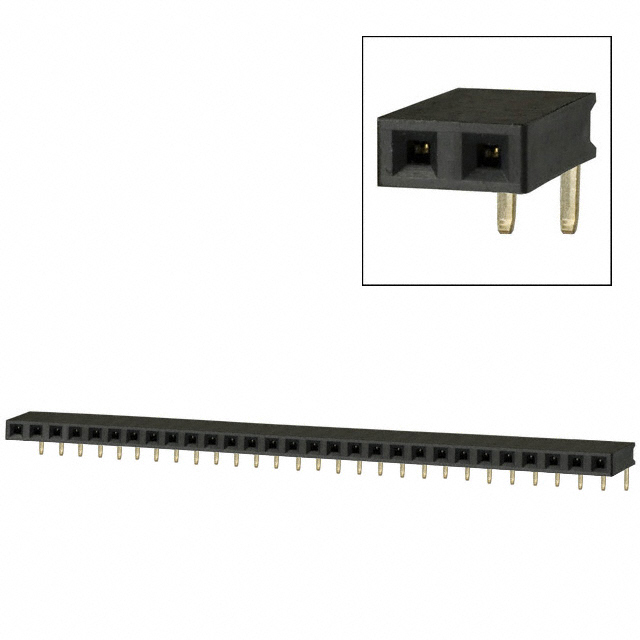

Sullins Connector Solutions PPPC291LGBN	Square	Polyester	Phosphor Bronze	Flash			Header	-40 C	105 ░C	0.1 "	2.54 mm	Gold	UL94 V-0	Push-Pull	Black	29	0.1 in	2.54 mm	All	Flash	Gold	250 V	3 A	1	Solder	Right Angle Through Hole	Female Socket	0.124 in	3.15 mm

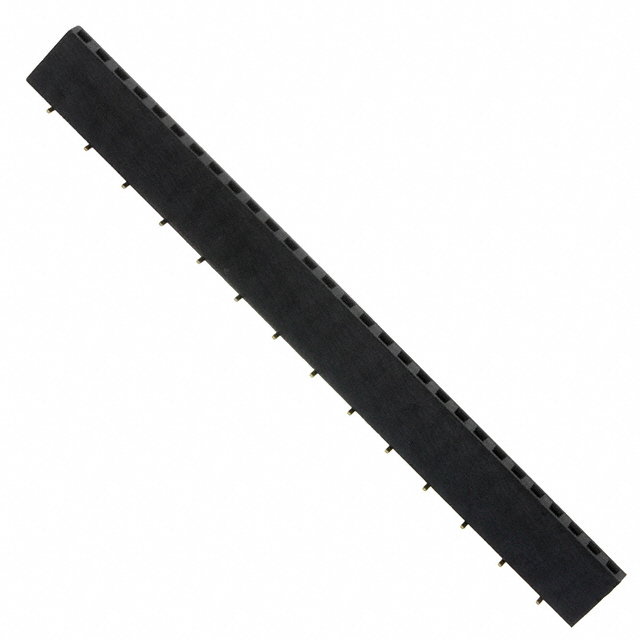

Sullins Connector Solutions PPPC291KFXC	Square	Polyester	Phosphor Bronze	Flash			Header Top or Bottom Entry	-40 C	105 ░C	0.1 "	2.54 mm	Gold	UL94 V-0	Push-Pull	Black	29	0.28 in	7.1 mm	All	Flash	Gold	250 V	3 A	1	Solder	Surface Mount	Female Socket
