7808R Series
Manufacturer: Belden Inc.
Beta
⌘K

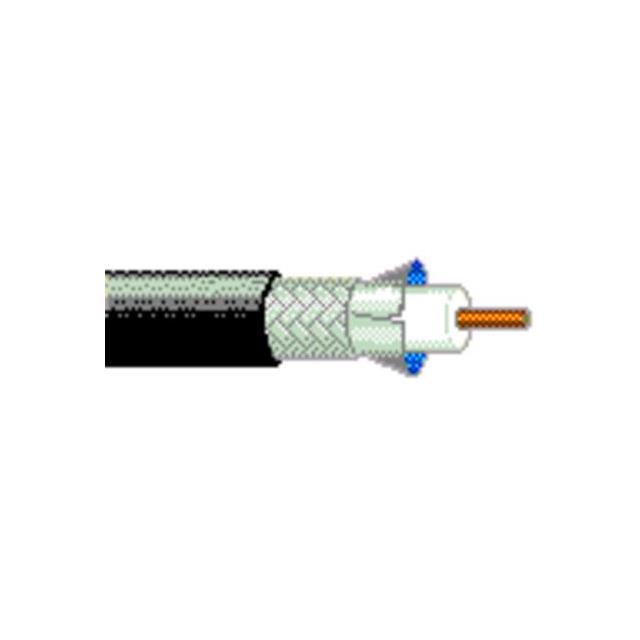

RF240 WIRELESS 50OHM COAXFRPVC
| Part | Shield Material | VoP, Velocity of Propagation | Conductor Material | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | Shield Coverage | Impedance | Cable Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket Color | Conductor Strand | Usage | Wire Gauge | Length [x] | Length [x] | Jacket (Insulation) Material | Cable Group | Shield Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum Polyester Copper Tinned | 86 | Copper Bare | 3.81 mm | 0.15 in | 95 % 100 % | 50 Ohms | Coaxial | 0.24 " | 6.1 mm | Black | Solid | RF Signal | 15 AWG | 304.8 m | 1000 ft | Poly-Vinyl Chloride (PVC) | RG-58 | Braid Foil |
