TRG1518 Series

Manufacturer: Cincon Electronics Co. LTD

Catalog

AC/DC WALL MOUNT ADAPTER 18V 15W

Part	Standard Number	Efficiency	Input Connector	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Applications	No Load Power Consumption	Approval Agency	Voltage - Output	Voltage - Input [Max]	Voltage - Input [Min]	Form	Power (Watts)	Region Utilized	Input Type	Cord Length	Cord Length	Current - Output (Max) [Max]	Polarization	Operating Temperature [Min]	Operating Temperature [Max]	Weight	Weight	Output Connector [custom]	Output Connector [custom]	Output Connector	Output Connector [x]

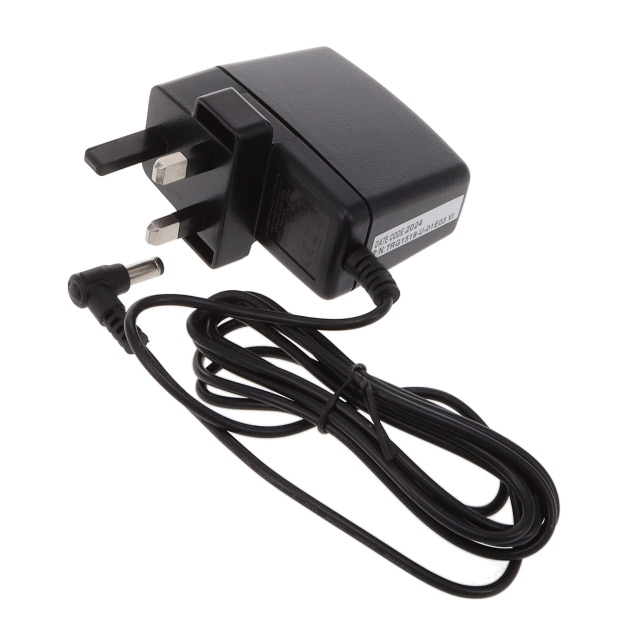

Cincon Electronics Co. LTD TRG1518-U-01E03 VI	60950-1	CoC Tier 2 Level VI	BS 1363	52 mm	35 mm	2.84 "	1.38 in	72 mm	2.05 in	ITE (Commercial)	75 mW	CE cULus FCC GS PSE TUV	18 V	264 VAC	90 VAC	Wall Mount (Class I)	15 W	United Kingdom	Fixed Blade	70.9 "	1.8 m	830 mA	Positive Center	-20 ░C	60 °C

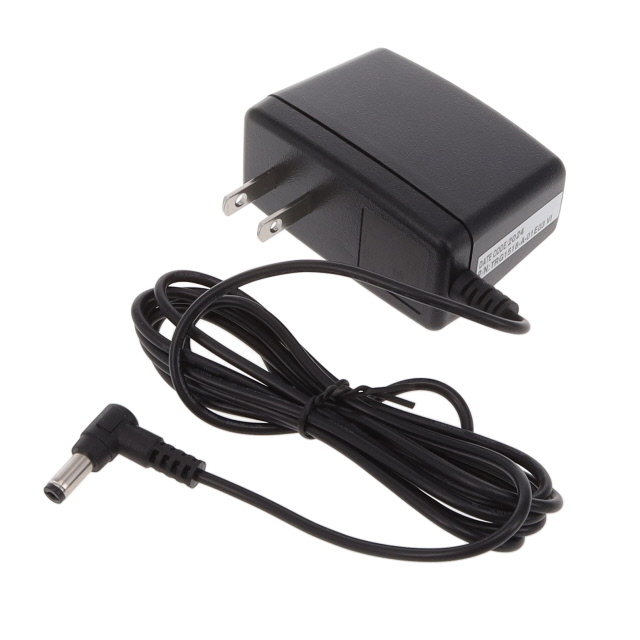

Cincon Electronics Co. LTD TRG1518-A-01E03 VI	60950-1	CoC Tier 2 Level VI	NEMA 1-15P	52 mm	35 mm	2.84 "	1.38 in	72 mm	2.05 in	ITE (Commercial)	75 mW	CE cULus FCC GS PSE TUV	18 V	264 VAC	90 VAC	Wall Mount	15 W	North America	Fixed Blade	70.9 "	1.8 m	830 mA	Positive Center	-20 ░C	60 °C

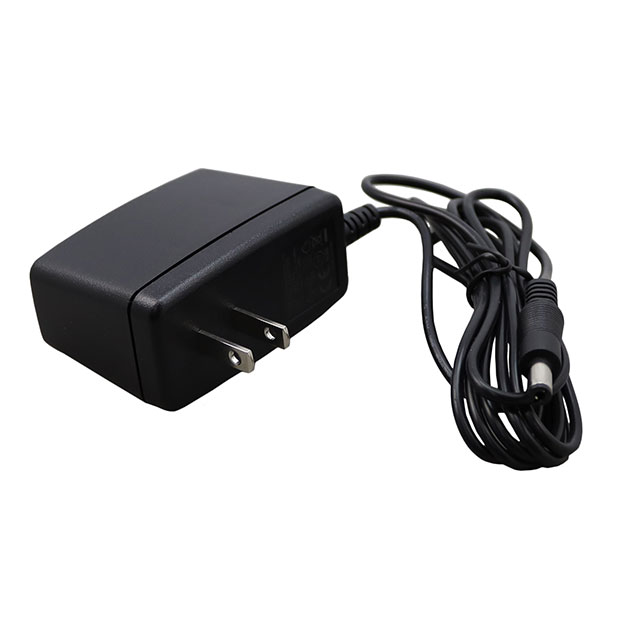

Cincon Electronics Co. LTD TRG1518-A-11E03 VI		CoC Tier 2 Level VI	NEMA 1-15P	52 mm	35 mm	2.84 "	1.38 in	72 mm	2.05 in	ITE (Commercial)	75 mW	CE cULus FCC GS PSE TUV	18 V	264 VAC	90 VAC	Wall Mount	15 W	North America	Fixed Blade	70.9 "	1.8 m	830 mA	Positive Center	-20 ░C	60 °C	0.309 lb	140 g	2.1 mm	5.5 mm	Barrel Plug	12 mm

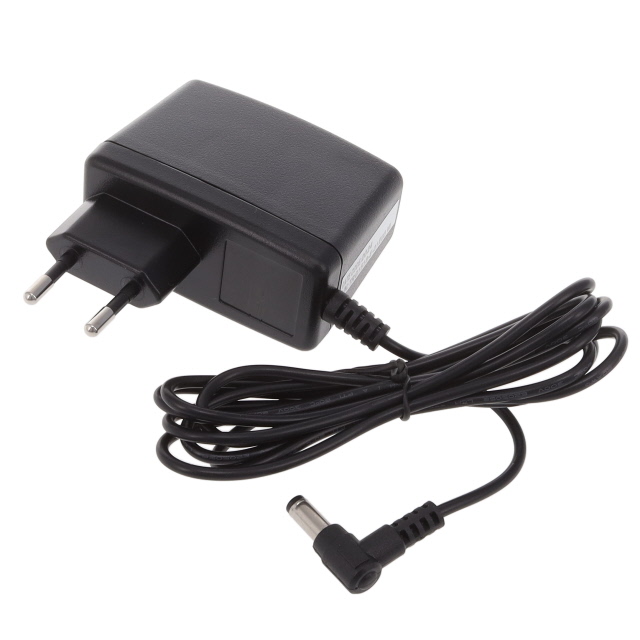

Cincon Electronics Co. LTD TRG1518-E-01E03 VI	60950-1	CoC Tier 2 Level VI	KSC 8305	52 mm	35 mm	2.84 "	1.38 in	72 mm	2.05 in	ITE (Commercial)	75 mW	CE cULus FCC GS PSE TUV	18 V	264 VAC	90 VAC	Wall Mount	15 W	Europe	Fixed Blade	70.9 "	1.8 m	830 mA	Positive Center	-20 ░C	60 °C

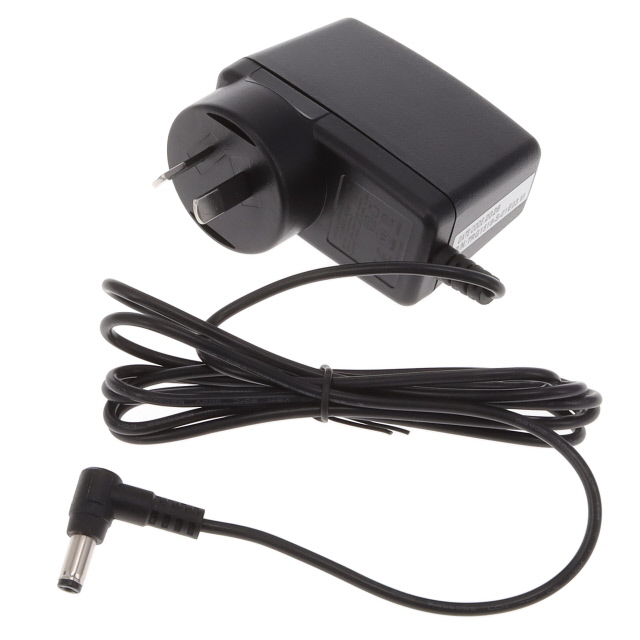

Cincon Electronics Co. LTD TRG1518-S-01E03 VI	60950-1	CoC Tier 2 Level VI	AS 3112	52 mm	35 mm	2.84 "	1.38 in	72 mm	2.05 in	ITE (Commercial)	75 mW	CE cULus FCC GS PSE TUV	18 V	264 VAC	90 VAC	Wall Mount	15 W	Australia	Fixed Blade	70.9 "	1.8 m	830 mA	Positive Center	-20 ░C	60 °C
