T38120 Series

Catalog

CONN BARRIER STRP 23CIRC 0.375"

Part	Terminal Block Type	Wire Gauge [Min]	Wire Gauge [Max]	Bottom Termination	Terminal Screw Finish	Voltage Rating	Current Rating (Amps)	Material - Insulation	Mounting Type	Number of Wire Entries [custom]	Barrier Type	Number of Rows	Pitch [x]	Pitch [x]	Top Termination	Number of Circuits	Material Flammability Rating	Terminal Screw Material	Operating Temperature	Number of Wire Entries	Number of Circuits [custom]
Curtis Industries T38120-23-0	Barrier Block	12 AWG	22 AWG	Solder Turret	Nickel	300 VDC	20 A	Polypropylene (PP)	Chassis Panel	23	2 Wall (Dual)	1	9.53 mm	0.375 in	Screws	23	UL94 V-0	Steel	105 C

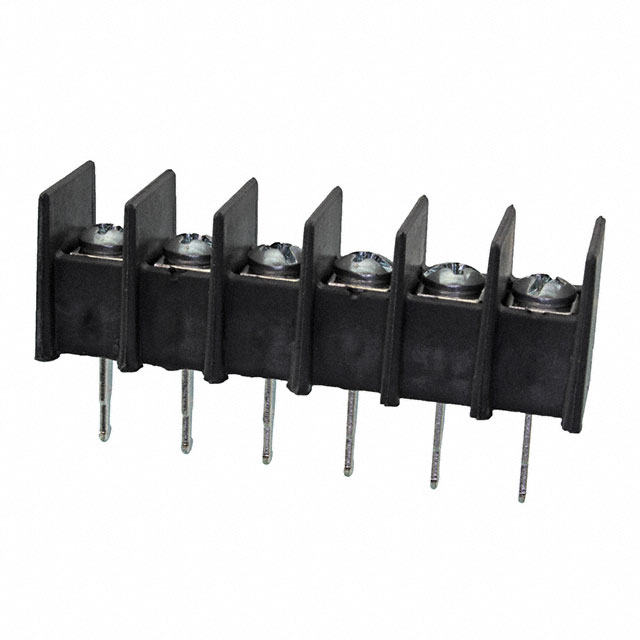

Curtis Industries T38120-06-0	Barrier Block	12 AWG	22 AWG	Solder Turret	Nickel	300 VDC	20 A	Polypropylene (PP)	Chassis Panel		2 Wall (Dual)	1	9.53 mm	0.375 in	Screws	6	UL94 V-0	Steel	105 C	6
Curtis Industries T38120-07-0	Barrier Block	12 AWG	22 AWG	Solder Turret	Nickel	300 VDC	20 A	Polypropylene (PP)	Chassis Panel		2 Wall (Dual)	1	9.53 mm	0.375 in	Screws	7	UL94 V-0	Steel	105 C	7

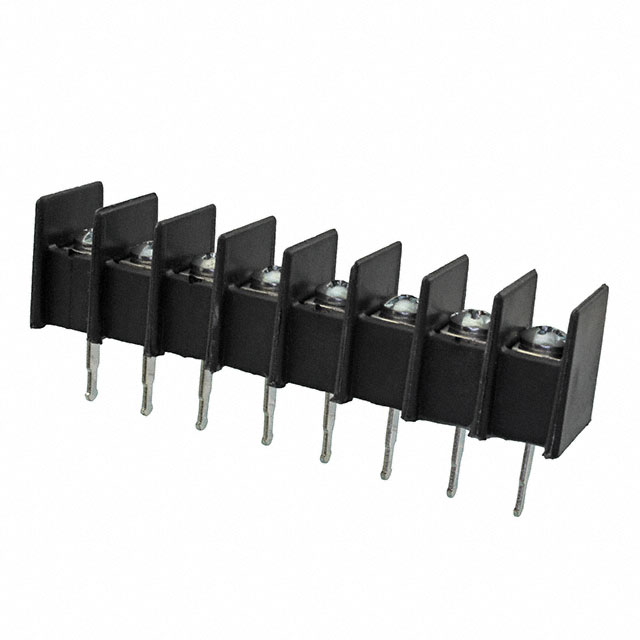

Curtis Industries T38120-08-0	Barrier Block	12 AWG	22 AWG	Solder Turret	Nickel	300 VDC	20 A	Polypropylene (PP)	Chassis Panel		2 Wall (Dual)	1	9.53 mm	0.375 in	Screws		UL94 V-0	Steel	105 C	8	8
Curtis Industries T38120-25-0	Barrier Block	12 AWG	22 AWG	Solder Turret	Nickel	300 VDC	20 A	Polypropylene (PP)	Chassis Panel		2 Wall (Dual)	1	9.53 mm	0.375 in	Screws	25	UL94 V-0	Steel	105 C	25
Curtis Industries T38120-21-0	Barrier Block	12 AWG	22 AWG	Solder Turret	Nickel	300 VDC	20 A	Polypropylene (PP)	Chassis Panel		2 Wall (Dual)	1	9.53 mm	0.375 in	Screws	21	UL94 V-0	Steel	105 C	21

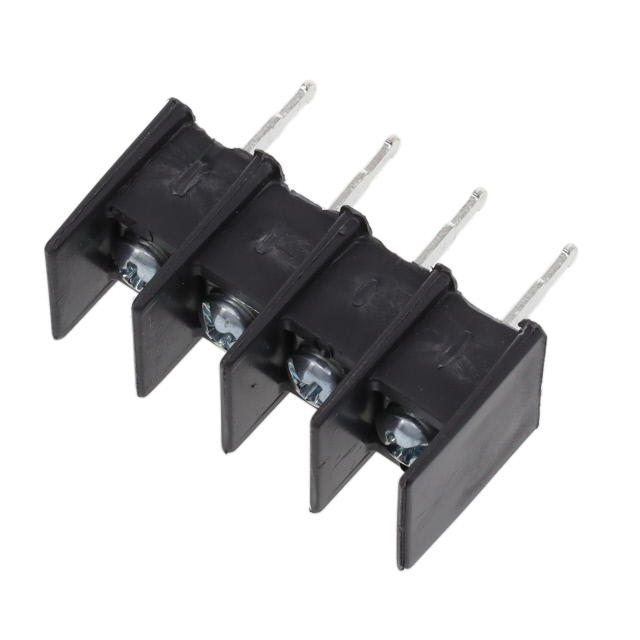

Curtis Industries T38120-04-0	Barrier Block	12 AWG	22 AWG	Solder Turret	Nickel	300 VDC	20 A	Polypropylene (PP)	Chassis Panel		2 Wall (Dual)	1	9.53 mm	0.375 in	Screws	4	UL94 V-0	Steel	105 C	4
