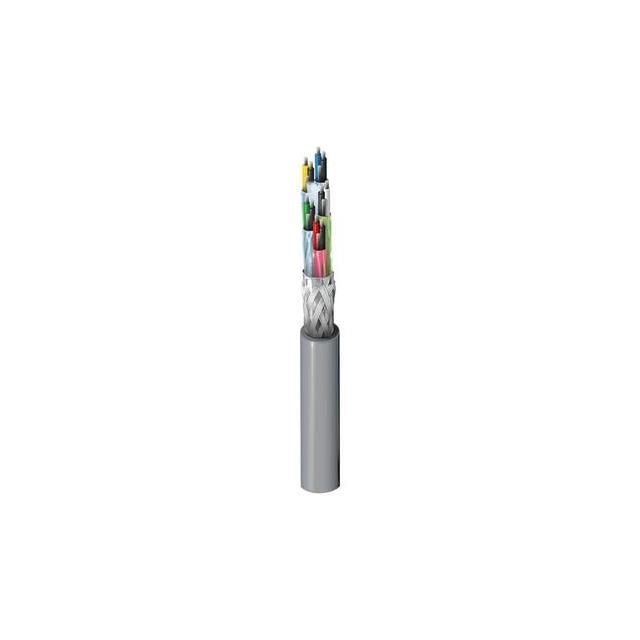

8165 Series
Manufacturer: Belden Inc.
Beta
⌘K
MULTI-PAIR 10COND 24AWG
| Part | Shield Coverage | Shield Material | Number of Conductors | Usage | Wire Gauge | Jacket (Insulation) Diameter | Jacket (Insulation) Diameter | Cable Type | Length | Length | Conductor Material | Conductor Insulation | Shield Type | Features | Conductor Strand [custom] | Conductor Strand [custom] | Operating Temperature [Max] | Operating Temperature [Min] | Jacket Color | Jacket (Insulation) Material | Ratings | Voltage | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 65 % 100 % | Aluminum Copper Tinned | 10 | Computer | 24 AWG | 0.413 " | 10.49 mm | Multi-Pair | 152.4 m | 500 ft | Copper Tinned | Foam Polyethylene (FPE) | Braid Foil | Drain Wire | 7 | 32 AWG | 60 °C | -40 C | Chrome | Poly-Vinyl Chloride (PVC) | UL Style 2493 | 300 VDC | 1.219 mm | 0.048 in | ||
 Belden Inc. | 65 % 100 % | Aluminum Copper Tinned | 10 | Computer | 24 AWG | 0.413 " | 10.49 mm | Multi-Pair | Copper Tinned | Foam Polyethylene (FPE) | Braid Foil | Drain Wire | 7 | 32 AWG | 60 °C | -40 C | Chrome | Poly-Vinyl Chloride (PVC) | UL Style 2493 | 1.219 mm | 0.048 in | 100 ft | 30.5 m |
