CMCP783 Series

Catalog

ECONOMICAL ACCEL, 100 MV/G SIDE

Part	Acceleration Range	Package / Case	Axis	Sensitivity (mV/g)	Voltage - Supply [Max]	Voltage - Supply [Min]	Type	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Bandwidth [Max]	Bandwidth [Min]
STI Vibration Monitoring CMCP783A	60 g	Module	X	100 mV/g	30 VDC	18 V	Analog	130 °C	-55 C	Chassis Mount	10 kHz	1.5 Hz

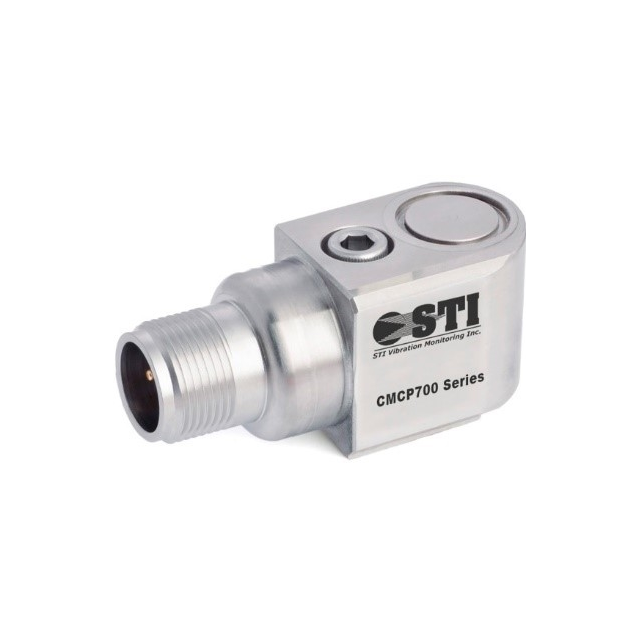

STI Vibration Monitoring CMCP783A-M8	60 g	Module	X	100 mV/g	30 VDC	18 V	Analog	130 °C	-55 C	Chassis Mount	10 kHz	1.5 Hz
