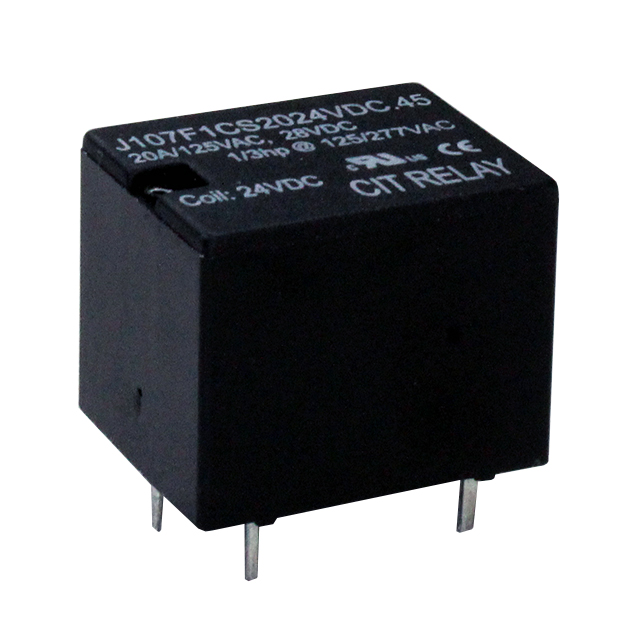

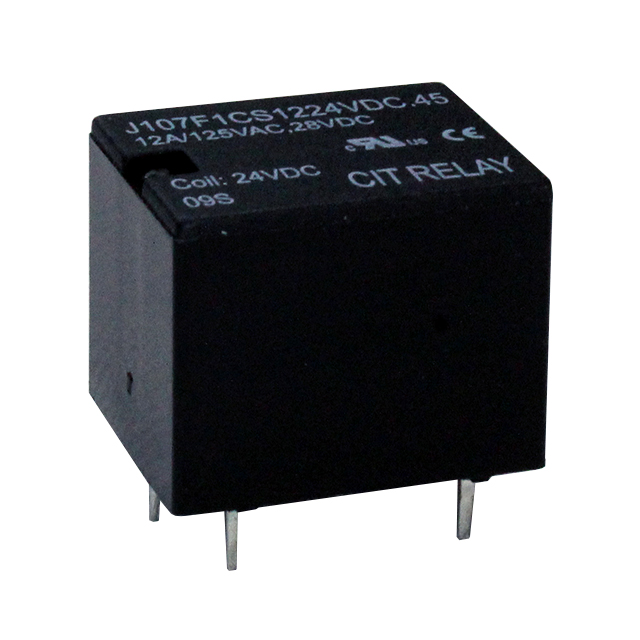

J107F1CS Series
Manufacturer: CIT Relay and Switch
Beta
⌘K
RELAY GEN PURPOSE SPDT 20A 3V
| Part | Coil Resistance | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Must Operate Voltage | Contact Rating (Current) | Contact Form | Operate Time | Relay Type | Switching Voltage [Max] | Coil Type | Termination Style | Load - Max Switching | Seal Rating | Release Time | Coil Insulation | Must Release Voltage | Approval Agency | Coil Current | Coil Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CIT Relay and Switch | 20 Ohms | Through Hole | -55 C | 125 °C | Silver Tin Oxide (AgSnO) | 2.25 VDC | 20 A | SPDT (1 Form C) | 10 ms | General Purpose | 110 VDC 380 VAC | Non Latching | PC Pin | 2200 W 7600 VA | Sealed - Fully | 5 ms | Class F | 0.3 VDC | cURus TUV | 0.15 A | |
CIT Relay and Switch | 2.88 kOhms | Through Hole | -55 C | 125 °C | Silver Tin Oxide (AgSnO) | 36 VDC | 15 A | SPDT (1 Form C) | 10 ms | General Purpose | 110 VDC 380 VAC | Non Latching | PC Pin | 1650 W 5700 VA | Sealed - Fully | 5 ms | Class F | 4.8 VDC | cURus TUV | 16.7 mA | 48 VDC |
CIT Relay and Switch | 2.88 kOhms | Through Hole | -55 C | 125 °C | Silver Tin Oxide (AgSnO) | 36 VDC | 12 A | SPDT (1 Form C) | 10 ms | General Purpose | 110 VDC 380 VAC | Non Latching | PC Pin | 1320 W 4560 VA | Sealed - Fully | 5 ms | Class F | 4.8 VDC | cURus TUV | 16.7 mA | 48 VDC |
 CIT Relay and Switch | 1280 Ohms | Through Hole | -55 C | 125 °C | Silver Tin Oxide (AgSnO) | 18 VDC | 12 A | SPDT (1 Form C) | 10 ms | General Purpose | 110 VDC 380 VAC | Non Latching | PC Pin | 1320 W 4560 VA | Sealed - Fully | 5 ms | Class F | 2.4 VDC | cURus TUV | 18.8 mA | 24 VDC |
CIT Relay and Switch | 25 Ohms | Through Hole | -55 C | 125 °C | Silver Tin Oxide (AgSnO) | 2.25 VDC | 15 A | SPDT (1 Form C) | 10 ms | General Purpose | 110 VDC 380 VAC | Non Latching | PC Pin | 1650 W 5700 VA | Sealed - Fully | 5 ms | Class F | 0.3 VDC | cURus TUV | 0.12 A | |
CIT Relay and Switch | 225 Ohms | Through Hole | -55 C | 125 °C | Silver Tin Oxide (AgSnO) | 6.75 VDC | 15 A | SPDT (1 Form C) | 10 ms | General Purpose | 110 VDC 380 VAC | Non Latching | PC Pin | 1650 W 5700 VA | Sealed - Fully | 5 ms | Class F | 0.9 VDC | cURus TUV | 40 mA | 9 VDC |
CIT Relay and Switch | 31 Ohms | Through Hole | -55 C | 125 °C | Silver Tin Oxide (AgSnO) | 3.75 VDC | 20 A | SPDT (1 Form C) | 10 ms | General Purpose | 110 VDC 380 VAC | Non Latching | PC Pin | 2200 W 7600 VA | Sealed - Fully | 5 ms | Class F | 0.5 VDC | cURus TUV | 161.3 mA | 5 VDC |
CIT Relay and Switch | 70 Ohms | Through Hole | -55 C | 125 °C | Silver Tin Oxide (AgSnO) | 3.75 VDC | 15 A | SPDT (1 Form C) | 10 ms | General Purpose | 110 VDC 380 VAC | Non Latching | PC Pin | 1650 W 5700 VA | Sealed - Fully | 5 ms | Class F | 0.5 VDC | cURus TUV | 71.4 mA | 5 VDC |
CIT Relay and Switch | 20 Ohms | Through Hole | -55 C | 125 °C | Silver Tin Oxide (AgSnO) | 2.25 VDC | 15 A | SPDT (1 Form C) | 10 ms | General Purpose | 110 VDC 380 VAC | Non Latching | PC Pin | 1650 W 5700 VA | Sealed - Fully | 5 ms | Class F | 0.3 VDC | cURus TUV | 0.15 A | |
CIT Relay and Switch | 6.4 kOhms | Through Hole | -55 C | 125 °C | Silver Tin Oxide (AgSnO) | 36 VDC | 12 A | SPDT (1 Form C) | 10 ms | General Purpose | 110 VDC 380 VAC | Non Latching | PC Pin | 1320 W 4560 VA | Sealed - Fully | 5 ms | Class F | 4.8 VDC | cURus TUV | 7.5 mA | 48 VDC |
