003901 Series

Manufacturer: Molex

Catalog

Catalog

CONN PLUG HSG 3POS 4.20MM

...

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination	Insulation Material	Fastening Type	Connector Type	Mounting Type	Number of Rows	Pitch [x]	Pitch [x]	Color	Contact Type	Note	Number of Positions	Row Spacing	Row Spacing

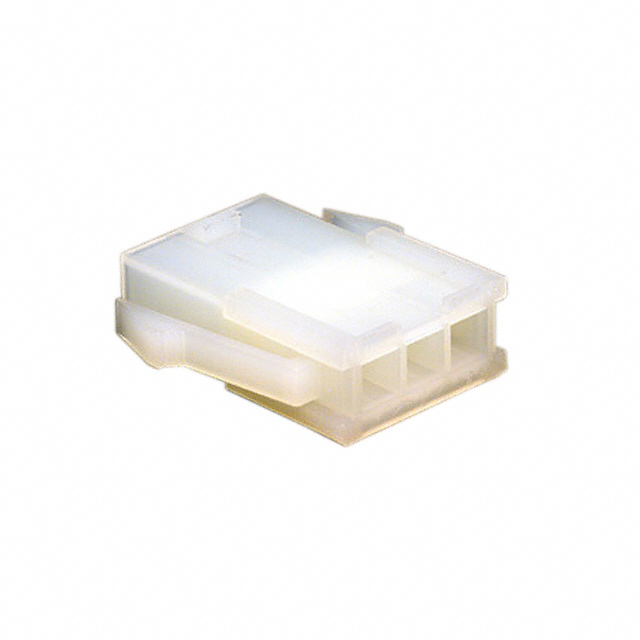

Molex 0039014032	-40 °C	105 ░C	Crimp	Polyamide (PA66) Nylon 6/6	Locking Ramp	Plug	Panel Mount Snap-In	1	4.2 mm	0.165 in	Natural	Male Pin	Contacts Not Included

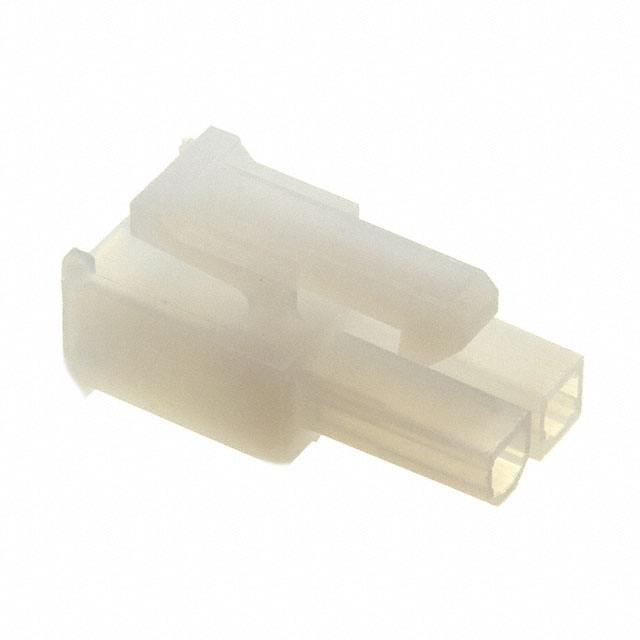

Molex 0039014020	-40 °C	105 ░C	Crimp	Polyamide (PA66) Nylon 6/6	Latch Lock	Receptacle	Free Hanging (In-Line)	1	4.2 mm	0.165 in	Natural	Female Socket	Contacts Not Included	2
Molex 0039011055			Crimp		Detent Lock	Receptacle	Free Hanging (In-Line)	1	3.96 mm	0.156 in		Female Socket	Contacts Not Included
Molex 0039014050	-40 °C	105 ░C	Crimp	Polyamide (PA66) Nylon 6/6	Latch Lock	Receptacle	Free Hanging (In-Line)	1	4.2 mm	0.165 in	Natural	Female Socket	Contacts Not Included

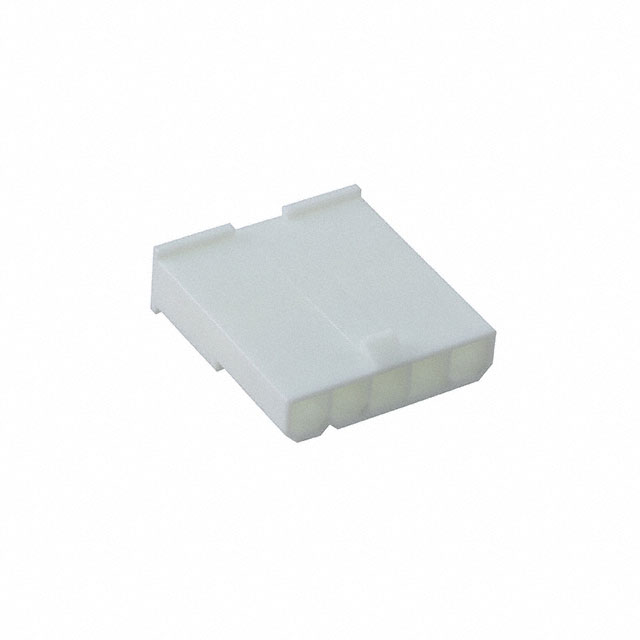

Molex 0039014057	-40 °C	105 ░C	Crimp	Polyamide (PA66) Nylon 6/6	Locking Ramp	Plug	Free Hanging (In-Line)	1	4.2 mm	0.165 in	Natural	Male Pin	Contacts Not Included

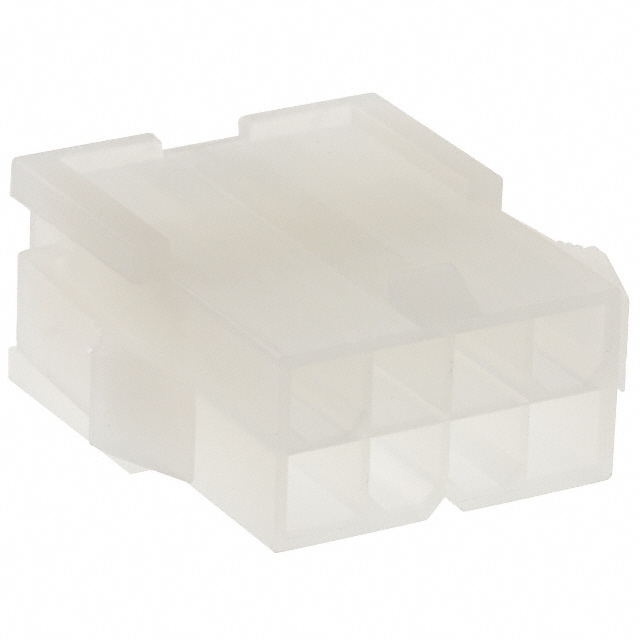

Molex 0039012081	-40 °C	105 ░C	Crimp	Polyamide (PA66) Nylon 6/6	Locking Ramp	Plug	Panel Mount Snap-In	2	4.2 mm	0.165 in	Natural	Male Pin	Contacts Not Included	8	4.2 mm	0.165 in

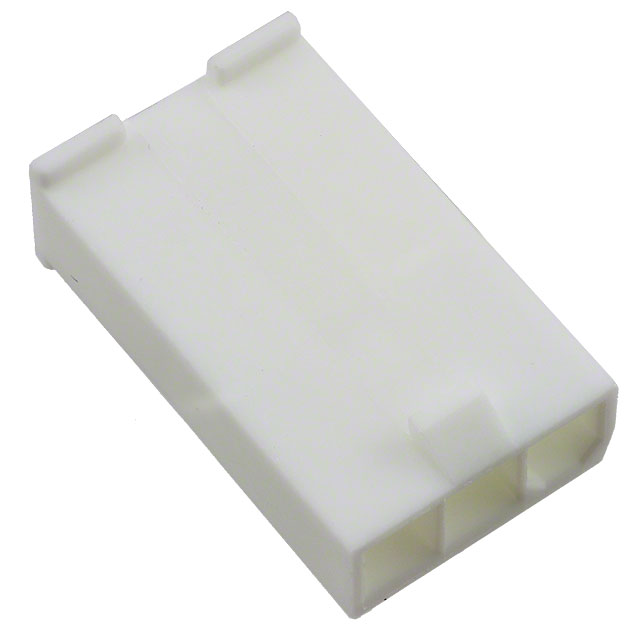

Molex 0039014037	-40 °C	105 ░C	Crimp	Polyamide (PA66) Nylon 6/6	Locking Ramp	Plug	Free Hanging (In-Line)	1	4.2 mm	0.165 in	Natural	Male Pin	Contacts Not Included

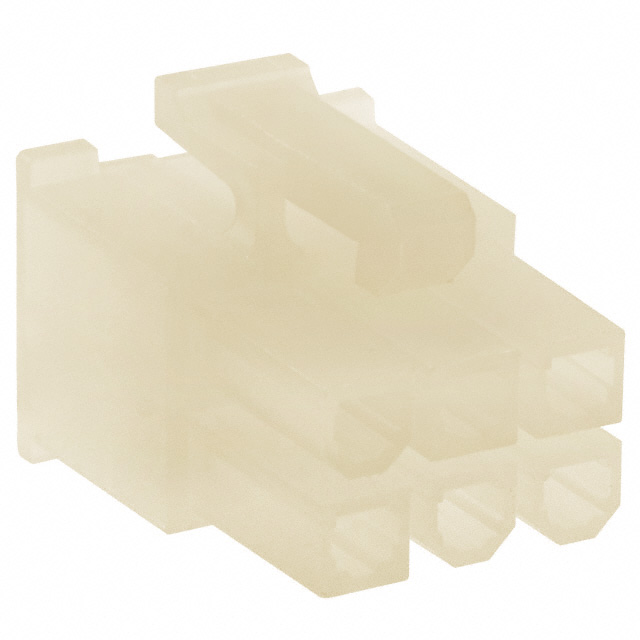

Molex 0039012060	-40 °C	105 ░C	Crimp	Polyamide (PA66) Nylon 6/6	Latch Lock	Receptacle	Free Hanging (In-Line)	2	4.2 mm	0.165 in	Natural	Female Socket	Contacts Not Included	6	4.2 mm	0.165 in

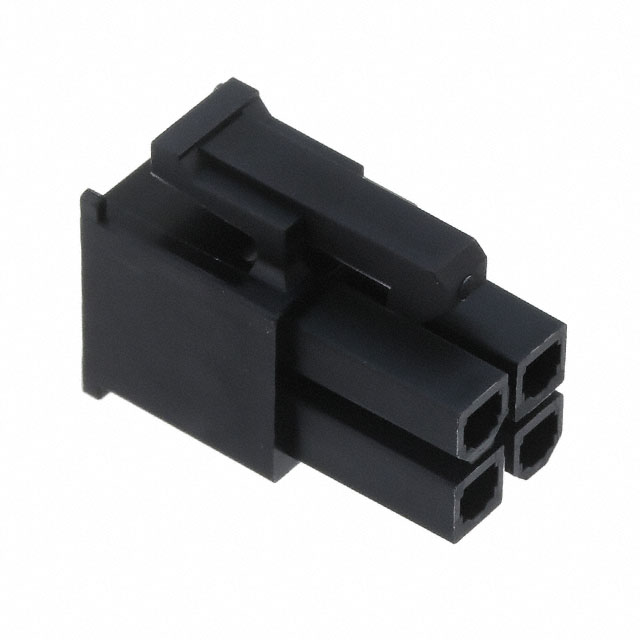

Molex 0039013045			Crimp	Polyamide (PA66) Nylon 6/6 Glass Filled	Latch Lock	Receptacle	Free Hanging (In-Line)	2	4.2 mm	0.165 in	Black	Female Socket	Contacts Not Included	4	4.2 mm	0.165 in

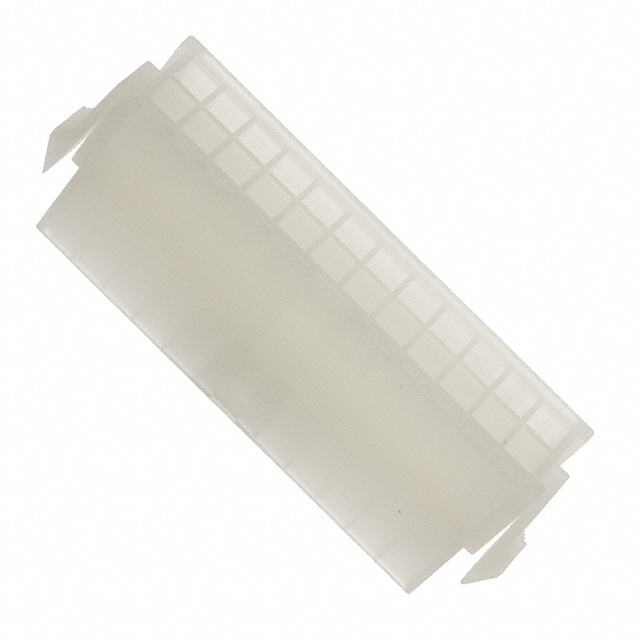

Molex 0039012241			Crimp	Polyamide (PA66) Nylon 6/6	Locking Ramp	Plug	Panel Mount Snap-In	2	4.2 mm	0.165 in	Natural	Male Pin	Contacts Not Included	24	4.2 mm	0.165 in
