8609396811 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

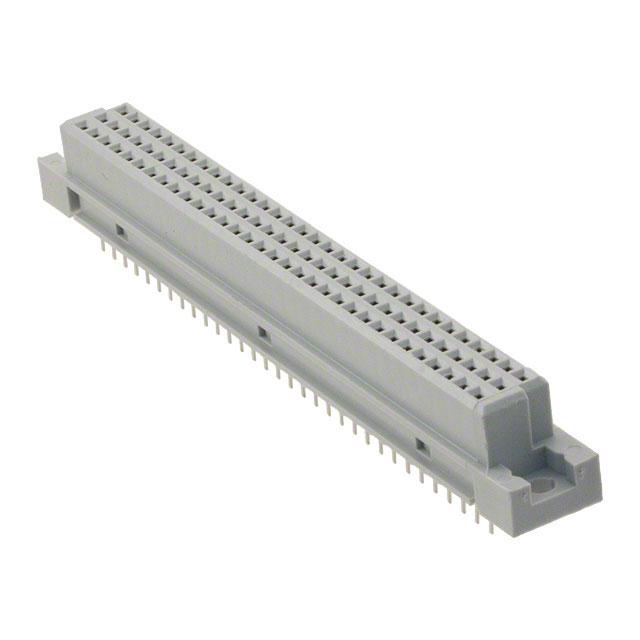

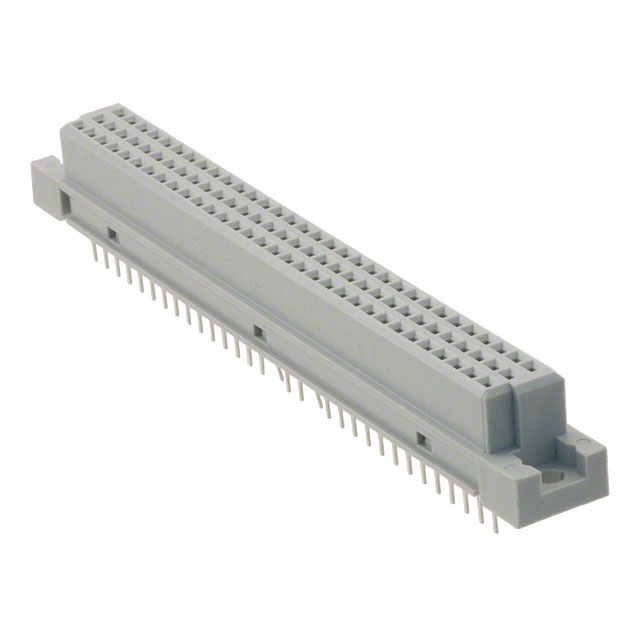

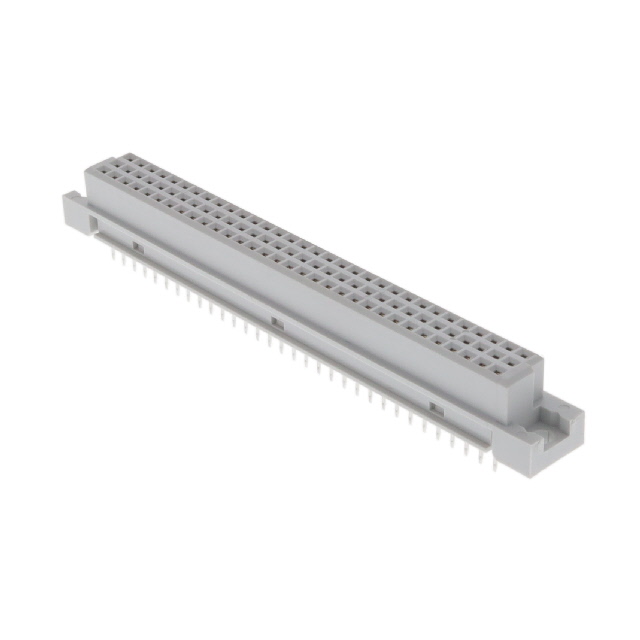

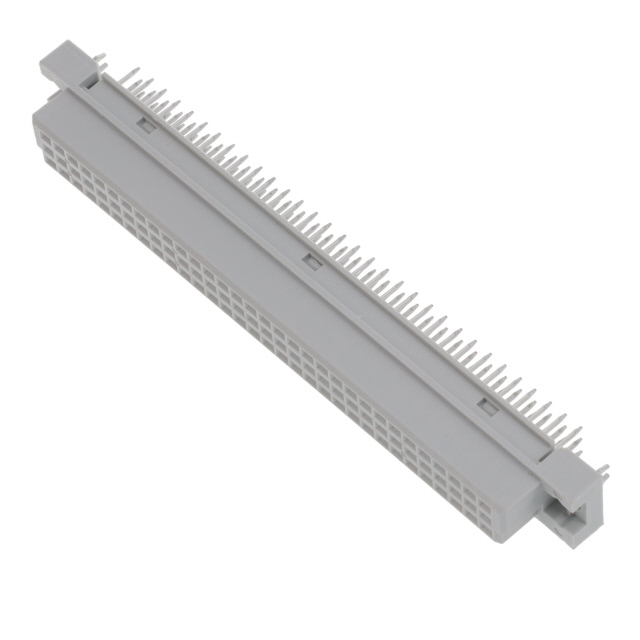

CONN DIN RCPT 96POS PCB GOLD
| Part | Mounting Type | Style | Connector Type | Pitch [x] | Pitch [x] | Number of Rows | Material Flammability Rating | Termination | Number of Positions | Number of Positions Loaded | Operating Temperature [Min] | Operating Temperature [Max] | Level, Class | Material - Insulation | Current Rating (Amps) | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (FCI) | Through Hole | C | Receptacle Female Sockets | 2.54 mm | 0.1 in | 3 | UL94 V-0 | Solder | 96 | All | -55 °C | 125 °C | 1 | Polyester Thermoplastic Glass Filled | 1.5 A | Gold GXT™ |
 Amphenol ICC (FCI) | Through Hole | C | Receptacle Female Sockets | 2.54 mm | 0.1 in | 3 | UL94 V-0 | Solder | 96 | All | -55 °C | 125 °C | Polyester Thermoplastic Glass Filled | 1.5 A | Gold | |
Amphenol ICC (FCI) | Through Hole | C | Receptacle Female Sockets | 2.54 mm | 0.1 in | 3 | UL94 V-0 | Wire Wrap | 96 | All | -55 °C | 125 °C | Polyester Thermoplastic | 1.5 A | Gold | |
Amphenol ICC (FCI) | Free Hanging (In-Line) | C | Receptacle Female Sockets | 2.54 mm | 0.1 in | 3 | UL94 V-0 | Solder Eyelet(s) | 96 | All | -55 °C | 125 °C | 3 | Polyester Thermoplastic | 1.5 A | Gold |
Amphenol ICC (FCI) | Through Hole | C | Receptacle Female Sockets | 2.54 mm | 0.1 in | 3 | UL94 V-0 | Solder | 96 | All | -55 °C | 125 °C | Polyester Thermoplastic | 1.5 A | Gold | |
Amphenol ICC (FCI) | Through Hole | C | Receptacle Female Sockets | 2.54 mm | 0.1 in | 3 | UL94 V-0 | Wire Wrap | 96 | All | -55 °C | 125 °C | 3 | Polyester Thermoplastic Glass Filled | 1.5 A | Gold |
 Amphenol ICC (FCI) | Through Hole | C | Receptacle Female Sockets | 2.54 mm | 0.1 in | 3 | UL94 V-0 | Solder | 96 | All | -55 °C | 125 °C | 3 | Polyester Thermoplastic Glass Filled | 1.5 A | Gold GXT™ |
Amphenol ICC (FCI) | Through Hole | C | Receptacle Female Sockets | 2.54 mm | 0.1 in | 3 | UL94 V-0 | Wire Wrap | 96 | All | -55 °C | 125 °C | Polyester Thermoplastic Glass Filled | 1.5 A | Gold | |
 Amphenol ICC (FCI) | Through Hole | C | Receptacle Female Sockets | 2.54 mm | 0.1 in | 3 | UL94 V-0 | Solder | 96 | All | -55 °C | 125 °C | Polyester Thermoplastic | 1.5 A | Gold | |
Amphenol ICC (FCI) | Through Hole | C | Receptacle Female Sockets | 2.54 mm | 0.1 in | 3 | UL94 V-0 | Solder | 96 | All | -55 °C | 125 °C | Polyester Thermoplastic | 1.5 A | Gold |
