2057744 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

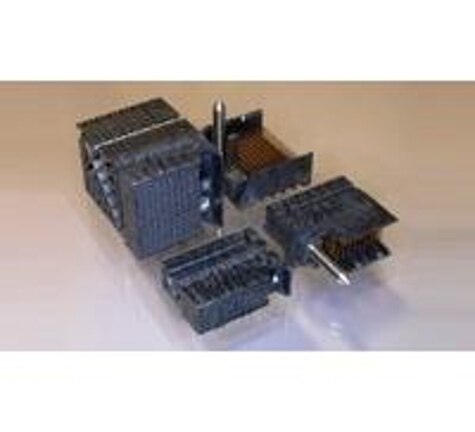

HIGH SPEED / MODULAR CONNECTORS IMP100S,H,V2P16C,UG OEW46,5.5
| Part | Material Flammability Rating | Voltage Rating | Pitch [x] | Pitch [x] | Connector Style | Number of Positions | Mounting Type | Current Rating (Amps) | Connector Type | Termination | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish | Number of Rows | Contact Layout, Typical [custom] | Contact Layout, Typical [custom] | Number of Columns | Color | Number of Positions Loaded | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | UL94 V-0 | 30 VDC | 0.075 in | 1.91 mm | Impact | 96 | Through Hole | 75 mA | Header Male Pins | Press-Fit | 85 °C | -55 °C | Gold | 6 | 64 | 32 | 16 | Black | All | 0.76 Ám | 30 Áin |
