3312N Series

Catalog

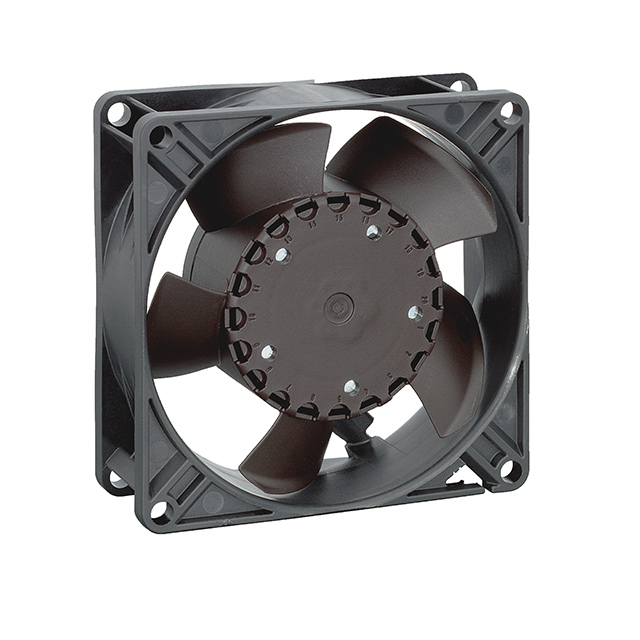

FAN AXIAL 92X32MM 12VDC WIRE

Part	Voltage Range [Min]	Voltage Range [Max]	Material - Blade	Lifetime @ Temp.	Material - Frame	Air Flow	Air Flow	Fan Type	Approval Agency	Noise	RPM	Power (Watts)	Width [y]	Bearing Type	Voltage - Rated	Weight	Weight	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [y]	Size / Dimension [x]	Termination
ebm-papst Inc. 3312NH3	6 VDC	14 V	Polyamide (PA) Nylon Fiberglass Reinforced	40 °C 50000 Hrs	Fiberglass Reinforced Polybutylene Terephthalate (PBT)	78 CFM	2.18 mł/min	Tubeaxial	UL	50 dB(A)	4350 RPM	6.7 W	32 mm	Ball	12 VDC	190.06 g	0.419 lb	-4 °F	167 °F	92 mm	92 mm	2 Wire Leads
ebm-papst Inc. 3312NL	6 VDC	15 V	Polyamide (PA) Nylon Fiberglass Reinforced	80000 Hrs	Fiberglass Reinforced Polybutylene Terephthalate (PBT)	33 CFM	0.924 mł/min	Tubeaxial	CE CSA UL VDE	24 dB	1850 RPM	0.8 W	32 mm	Ball	12 VDC	190.06 g	0.419 lb	-4 °F	167 °F	92 mm	92 mm	2 Wire Leads
ebm-papst Inc. 3312NN	6 VDC	15 V	Polyamide (PA) Nylon	70000 Hrs	Fiberglass Reinforced Polybutylene Terephthalate (PBT)	47 CFM	1.32 m³/min	Tubeaxial	CE CSA UL VDE	35 dB	2650 RPM	1.8 W	32 mm	Ball	12 VDC	190.06 g	0.419 lb	-4 °F	167 °F	92 mm	92 mm	2 Wire Leads
ebm-papst Inc. 3312NM	6 VDC	15 V	Polyamide (PA) Nylon Fiberglass Reinforced	70000 Hrs	Fiberglass Reinforced Polybutylene Terephthalate (PBT)	40 CFM	1.12 m³/min	Tubeaxial	UL	29 dB(A)	2250 RPM	1.3 W	32 mm	Ball	12 VDC	190.06 g	0.419 lb	-4 °F	167 °F	92 mm	92 mm	2 Wire Leads
