DCP010505DB Series

Miniature, 1W Isolated Unregulated DC/DC Converters

Catalog

Miniature, 1W Isolated Unregulated DC/DC Converters

Part	Type	Control Features	Supplier Device Package	Voltage - Output 1	Applications	Mounting Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Voltage - Input (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Features	Number of Outputs	Efficiency	Package / Case	Package / Case	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Voltage - Isolation	Current - Output (Max)	Current - Output (Max)	Voltage - Output 2	Package / Case [x]	Package / Case [x]	Package / Case [custom]
Texas Instruments DCP010505BP-UE4	Isolated Module	Active High Enable	7-SOP	5 V	ITE (Commercial)	Surface Mount	0.26 "	19.2 mm	0.76 "	0.21 in	6.6 mm	5.3 mm	4.5 V	100 °C	-40 °C	Remote On/Off	1	80 %	14-SMD Module Gull Wing	7 Leads	5.5 V	200 mA	1000 V
Texas Instruments DCP010505BP-U/7E4	Isolated Module	Active High Enable	7-SOP	5 V	ITE (Commercial)	Surface Mount	0.26 "	19.2 mm	0.76 "	0.21 in	6.6 mm	5.3 mm	4.5 V	100 °C	-40 °C	Remote On/Off	1	80 %	14-SMD Module Gull Wing	7 Leads	5.5 V	200 mA	1000 V
Texas Instruments DCP010505DBP-U/7G4	Isolated Module	Active High Enable		5 V	ITE (Commercial)	Surface Mount	0.33 in	19.7 mm	0.78 "	0.21 in	8.3 mm	5.3 mm	4.5 V	100 °C	-40 °C	OTP SCP	2	81 %	14-SMD Module 7 Leads		5.5 V		1000 V	100 mA	100 mA	-5 V
Texas Instruments DCP010505DBP-U/700	Isolated Module	Active High Enable		5 V	ITE (Commercial)	Surface Mount	0.33 in	19.7 mm	0.78 "	0.21 in	8.3 mm	5.3 mm	4.5 V	100 °C	-40 °C	OTP SCP	2	81 %	14-SMD Module 7 Leads		5.5 V		1000 V	100 mA	100 mA	-5 V
Texas Instruments DCP010505BP-U	Isolated Module	Active High Enable		5 V	ITE (Commercial)	Surface Mount	0.33 in	19.7 mm	0.78 "	0.21 in	8.3 mm	5.3 mm	4.5 V	100 °C	-40 °C	OTP SCP	1	80 %	14-SMD Module 7 Leads		5.5 V	200 mA	1000 V
Texas Instruments DCP010505BP-U/7G4	Isolated Module	Active High Enable		5 V	ITE (Commercial)	Surface Mount	0.33 in	19.7 mm	0.78 "	0.21 in	8.3 mm	5.3 mm	4.5 V	100 °C	-40 °C	OTP SCP	1	80 %	14-SMD Module 7 Leads		5.5 V	200 mA	1000 V
Texas Instruments DCP010505BP-U/700	Isolated Module	Active High Enable		5 V	ITE (Commercial)	Surface Mount	0.33 in	19.7 mm	0.78 "	0.21 in	8.3 mm	5.3 mm	4.5 V	100 °C	-40 °C	OTP SCP	1	80 %	14-SMD Module 7 Leads		5.5 V	200 mA	1000 V
Texas Instruments DCP010505DBP-U	Isolated Module	Active High Enable		5 V	ITE (Commercial)	Surface Mount	0.33 in	19.7 mm	0.78 "	0.21 in	8.3 mm	5.3 mm	4.5 V	100 °C	-40 °C	OTP SCP	2	81 %	14-SMD Module 7 Leads		5.5 V		1000 V	100 mA	100 mA	-5 V

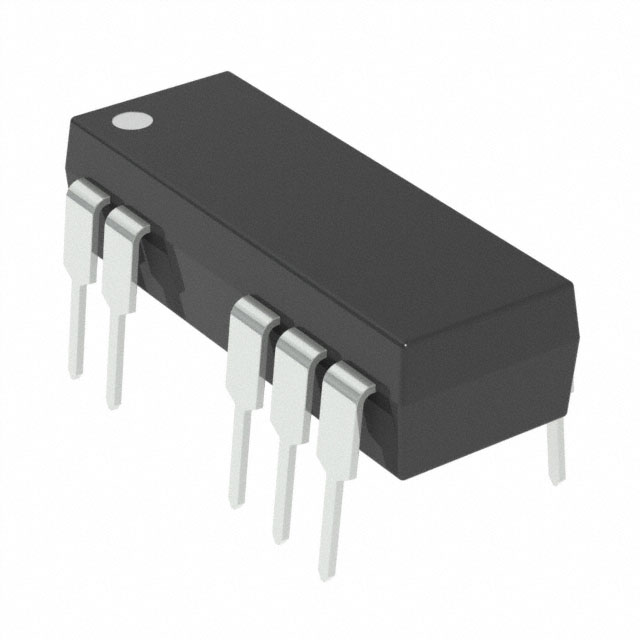

Texas Instruments DCP010505DBP	Isolated Module	Active High Enable	7-PDIP	5 V	ITE (Commercial)	Through Hole	0.33 in	19.7 mm	0.78 "	0.21 in	8.3 mm	5.3 mm	4.5 V	100 °C	-40 °C	OTP SCP	2	81 %	14-DIP		5.5 V		1000 V	100 mA	100 mA	-5 V	0.3 "	7.62 mm	7

Catalog

Miniature, 1W Isolated Unregulated DC/DC Converters

Key Features

• 1-kV Isolation (operational): 1-second testContinuous voltage applied across isolation barrier: 60 VDC / 42.5 VACUL1950 recognized componentEN55022 class B EMC performance7-Pin PDIP and 7-pin SOP packagesInput voltage: 5 V, 15 V, or 24 VOutput voltage: ±5 V, ±6.5 V, ±12 V, or ±15 VDevice-to-device synchronizationThermal protectionShort-circuit protectionHigh efficiency1-kV Isolation (operational): 1-second testContinuous voltage applied across isolation barrier: 60 VDC / 42.5 VACUL1950 recognized componentEN55022 class B EMC performance7-Pin PDIP and 7-pin SOP packagesInput voltage: 5 V, 15 V, or 24 VOutput voltage: ±5 V, ±6.5 V, ±12 V, or ±15 VDevice-to-device synchronizationThermal protectionShort-circuit protectionHigh efficiency

Description

The DCP01B series is a family of 1-W, isolated, unregulated DC/DC converter modules. Requiring a minimum of external components and including on-chip device protection, the DCP01B series of devices provide extra features such as output disable and synchronization of switching frequencies. This combination of features and small size makes the DCP01B series of devices suitable for a wide range of applications, and is an easy-to-use solution in applications requiring signal path isolation. The DCP01B series is a family of 1-W, isolated, unregulated DC/DC converter modules. Requiring a minimum of external components and including on-chip device protection, the DCP01B series of devices provide extra features such as output disable and synchronization of switching frequencies. This combination of features and small size makes the DCP01B series of devices suitable for a wide range of applications, and is an easy-to-use solution in applications requiring signal path isolation.
