LP8860-Q1 Series

Automotive low-EMI high-performance 4-channel LED driver

Catalog

Automotive low-EMI high-performance 4-channel LED driver

Part	Qualification	Operating Temperature [Min]	Operating Temperature [Max]	Dimming	Topology	Grade	Applications	Number of Outputs	Voltage - Output	Voltage - Supply (Min) [Min]	Frequency [Min]	Frequency [Max]	Type	Current - Output / Channel	Package / Case	Mounting Type	Voltage - Supply (Max) [Max]	Supplier Device Package	Supplied Contents	Features	Outputs and Type	Outputs and Type	Utilized IC / Part	Voltage - Input [Min]	Voltage - Input [Max]
Texas Instruments LP8860RQVFPRQ1	AEC-Q100	-40 °C	125 °C	PWM	Step-Up (Boost)	Automotive	Backlight Lighting	4	48 V	3 V	100 kHz	2.2 MHz	DC DC Controller	150 mA	32-PowerLQFP	Surface Mount	48 V	32-HLQFP (7x7)
Texas Instruments LP8860NQVFPRQ1	AEC-Q100	-40 °C	125 °C	PWM	Step-Up (Boost)	Automotive	Backlight Lighting	4	48 V	3 V	100 kHz	2.2 MHz	DC DC Controller	150 mA	32-PowerLQFP	Surface Mount	48 V	32-HLQFP (7x7)
Texas Instruments LP8860LQVFPRQ1	AEC-Q100	-40 °C	125 °C	PWM	Step-Up (Boost)	Automotive	Backlight Lighting	4	48 V	3 V	100 kHz	2.2 MHz	DC DC Controller	150 mA	32-PowerLQFP	Surface Mount	48 V	32-HLQFP (7x7)
Texas Instruments LP8860CQVFPRQ1	AEC-Q100	-40 °C	125 °C	PWM	Step-Up (Boost)	Automotive	Backlight Lighting	4	48 V	3 V	100 kHz	2.2 MHz	DC DC Controller	150 mA	32-PowerLQFP	Surface Mount	48 V	32-HLQFP (7x7)
Texas Instruments LP8860EQVFPRQ1	AEC-Q100	-40 °C	125 °C	PWM	Step-Up (Boost)	Automotive	Backlight Lighting	4	48 V	3 V	100 kHz	2.2 MHz	DC DC Controller	150 mA	32-PowerLQFP	Surface Mount	48 V	32-HLQFP (7x7)

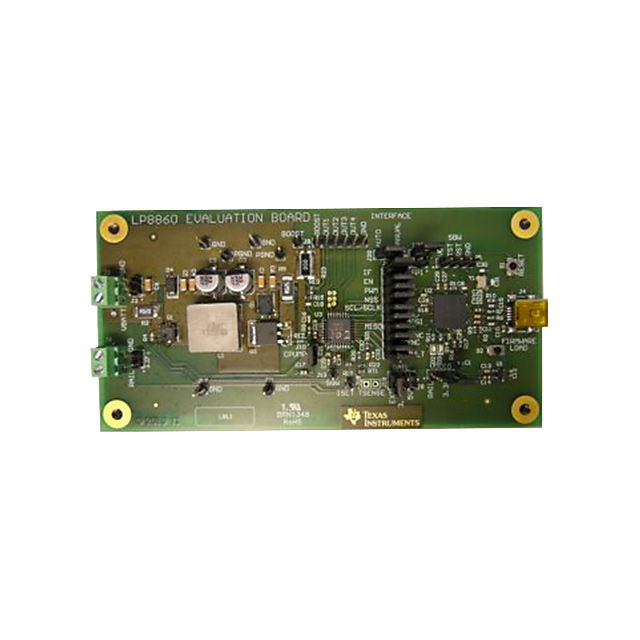

Texas Instruments LP8860-Q1EVM														150 mA					Board(s)	Dimmable	4	Non-Isolated Outputs	LP8860-Q1	3 V	48 V
Texas Instruments LP8860AQVFPRQ1	AEC-Q100	-40 °C	125 °C	PWM	Step-Up (Boost)	Automotive	Backlight Lighting	4	48 V	3 V	100 kHz	2.2 MHz	DC DC Controller	150 mA	32-PowerLQFP	Surface Mount	48 V	32-HLQFP (7x7)
Texas Instruments LP8860BQVFPRQ1	AEC-Q100	-40 °C	125 °C	PWM	Step-Up (Boost)	Automotive	Backlight Lighting	4	48 V	3 V	100 kHz	2.2 MHz	DC DC Controller	150 mA	32-PowerLQFP	Surface Mount	48 V	32-HLQFP (7x7)
Texas Instruments LP8860DQVFPRQ1	AEC-Q100	-40 °C	125 °C	PWM	Step-Up (Boost)	Automotive	Backlight Lighting	4	48 V	3 V	100 kHz	2.2 MHz	DC DC Controller	150 mA	32-PowerLQFP	Surface Mount	48 V	32-HLQFP (7x7)
Texas Instruments LP8860HQVFPRQ1	AEC-Q100	-40 °C	125 °C	PWM	Step-Up (Boost)	Automotive	Backlight Lighting	4	48 V	3 V	100 kHz	2.2 MHz	DC DC Controller	150 mA	32-PowerLQFP	Surface Mount	48 V	32-HLQFP (7x7)

Catalog

Automotive low-EMI high-performance 4-channel LED driver

Key Features

• Qualified for Automotive ApplicationsAEC-Q100 Qualified With the Following Results:Device Temperature Grade 1: –40°C to +125°C Ambient Operating TemperatureInput Voltage Operating Range 3 V to 48 VFour High-Precision Current SinksCurrent Matching 0.5% (typical)LED String Current up to 150 mA per ChannelDimming Ratio > 13 000:1 With External PWM Brightness Control16-bit Dimming Control with SPI or I2CSupports Display Mode (Global Dimming) and Cluster Mode (Independent Dimming)Hybrid PWM and Current Dimming for Higher LED Drive Optical EfficiencySynchronization for LED PWM FrequencyBoost Controller With Programmable Switching Frequency 100 kHz to 2.2 MHz and Spread-Spectrum Option for Lower EMIBoost Synchronization InputPower-Line FET Control for Inrush Current Protection and Standby Energy SavingAutomatic LED Current Reduction With External Temperature SensorExtensive Fault DiagnosticsQualified for Automotive ApplicationsAEC-Q100 Qualified With the Following Results:Device Temperature Grade 1: –40°C to +125°C Ambient Operating TemperatureInput Voltage Operating Range 3 V to 48 VFour High-Precision Current SinksCurrent Matching 0.5% (typical)LED String Current up to 150 mA per ChannelDimming Ratio > 13 000:1 With External PWM Brightness Control16-bit Dimming Control with SPI or I2CSupports Display Mode (Global Dimming) and Cluster Mode (Independent Dimming)Hybrid PWM and Current Dimming for Higher LED Drive Optical EfficiencySynchronization for LED PWM FrequencyBoost Controller With Programmable Switching Frequency 100 kHz to 2.2 MHz and Spread-Spectrum Option for Lower EMIBoost Synchronization InputPower-Line FET Control for Inrush Current Protection and Standby Energy SavingAutomatic LED Current Reduction With External Temperature SensorExtensive Fault Diagnostics

Description

The LP8860-Q1 is an automotive high-efficiency LED driver with boost controller. It has 4 high-precision current sinks that can be controlled by a PWM input signal, an SPI or I2C master, or both. The boost converter has adaptive output voltage control based on the headroom voltages of the LED current sinks. This feature minimizes the power consumption by adjusting the voltage to the lowest sufficient level in all conditions. A wide-range adjustable frequency allows the LP8860-Q1 to avoid disturbance for AM radio band. The LP8860-Q1 supports built-in hybrid PWM and current dimming, which reduces EMI, extends the LED lifetime, and increases the total optical efficiency. Phase-shift PWM reduces audible noise and output ripple. The LP8860-Q1 is an automotive high-efficiency LED driver with boost controller. It has 4 high-precision current sinks that can be controlled by a PWM input signal, an SPI or I2C master, or both. The boost converter has adaptive output voltage control based on the headroom voltages of the LED current sinks. This feature minimizes the power consumption by adjusting the voltage to the lowest sufficient level in all conditions. A wide-range adjustable frequency allows the LP8860-Q1 to avoid disturbance for AM radio band. The LP8860-Q1 supports built-in hybrid PWM and current dimming, which reduces EMI, extends the LED lifetime, and increases the total optical efficiency. Phase-shift PWM reduces audible noise and output ripple.
