1.15.116 Series
Manufacturer: RAFI USA
Beta
⌘K

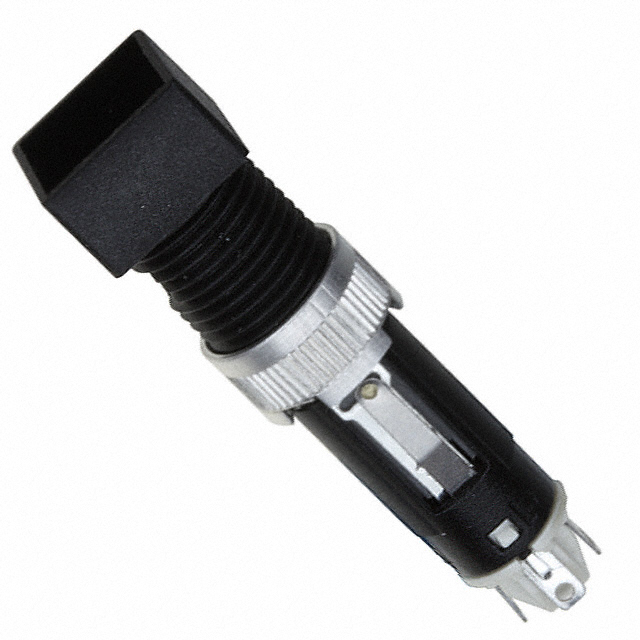

SWITCH PUSH SPST-NO 0.25A 42V
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Termination Style | Ingress Protection | Panel Cutout Dimensions [diameter] | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Type | Current Rating (Amps) | Actuator Type | Mounting Type | Actuator Marking | Circuit | Electrical Life |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 RAFI USA | -25 °C | 70 °C | Solder Lug | IP40 | 8.1 mm | 42 V | 42 V | Off-Mom | Illuminated Standard | 250 mA | Button Round | Panel Mount Front | No Marking | SPST-NO | |
 RAFI USA | -25 °C | 70 °C | Solder Lug | IP40 | 8.1 mm | 42 V | 42 V | Off-On | Illuminated Standard | 250 mA | Button Square | Panel Mount Front | No Marking | SPST | 100000 Cycles |
RAFI USA | -25 °C | 70 °C | Solder Lug | IP40 | 8.1 mm | 42 V | 42 V | Off-Mom | Illuminated Standard | 250 mA | Button Round | Panel Mount Front | No Marking | SPST-NO | 1000000 Cycles |
RAFI USA | -25 °C | 70 °C | Solder Lug | IP40 | 8.1 mm | 42 V | 42 V | Off-On | Illuminated Standard | 250 mA | Button Square | Panel Mount Front | No Marking | SPST |
