R12305 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

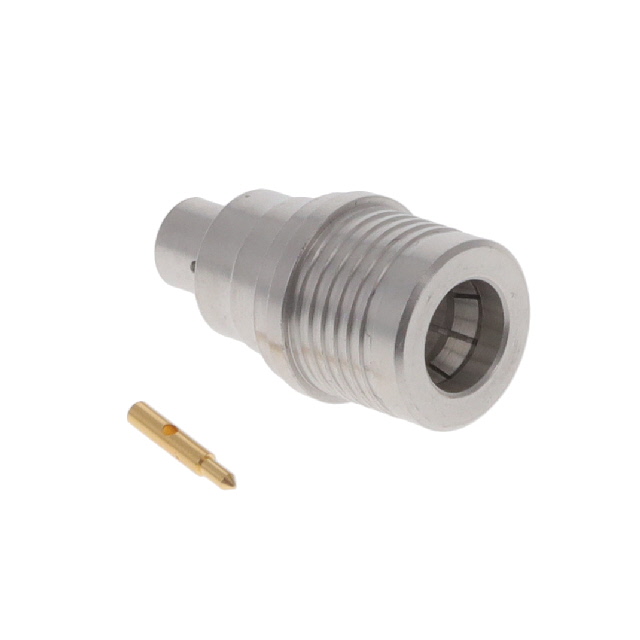

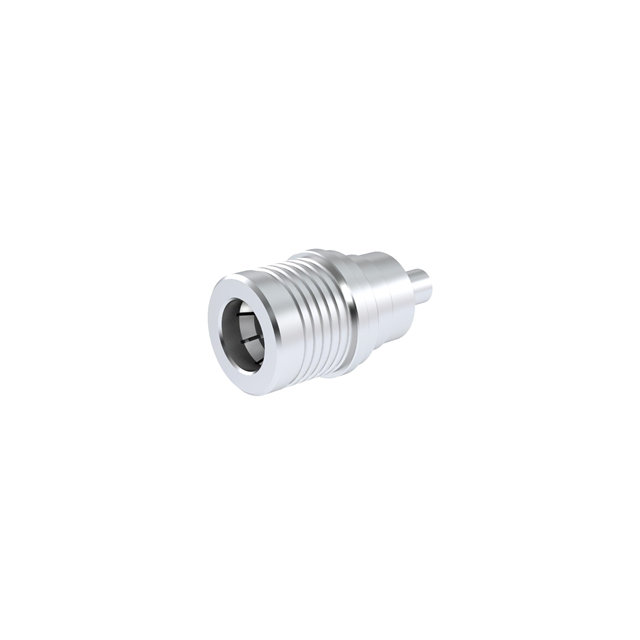

QMA / STRAIGHT PLUG SOLDER TYPE
| Part | Voltage Rating | Insertion Loss | Dielectric Material | Center Contact Plating | Body Material | Body Finish | Operating Temperature [Min] | Operating Temperature [Max] | Housing Color | Number of Ports | Cable Group | Impedance | Frequency - Max [Max] | Shield Termination | Fastening Type | Center Contact Material | Connector Type | Contact Termination | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | 335 V | 0.25 dB | Polytetrafluoroethylene (PTFE) | Gold | Brass | White Bronze | -40 C | 105 ░C | Silver | 1 | RG-405 (.085" Semi Rigid) | 50 Ohms | 6000 MHz | Solder | Snap-On | Brass | Plug Male Pin | Solder | Free Hanging (In-Line) |
 Radiall USA, Inc. | 250 V | 0.25 dB | Polytetrafluoroethylene (PTFE) | Gold | Brass | White Bronze | -40 C | 105 ░C | Silver | 1 | 50 Ohms | 6000 MHz | Solder | Snap-On | Brass | Plug Male Pin | Solder | Free Hanging (In-Line) | |
Radiall USA, Inc. | 500 V | 0.25 dB | Polytetrafluoroethylene (PTFE) | Gold | Brass | White Bronze | -40 C | 105 ░C | Silver | 1 | 50 Ohms | 6000 MHz | Solder | Snap-On | Brass | Plug Male Pin | Solder | Free Hanging (In-Line) | |
 Radiall USA, Inc. | 500 V | 0.25 dB | Polytetrafluoroethylene (PTFE) | Gold | Brass | White Bronze | -40 C | 105 ░C | Silver | 1 | RG-405 (.085" Semi Rigid) | 50 Ohms | 6000 MHz | Solder | Snap-On | Brass | Plug Male Pin | Solder | Free Hanging (In-Line) |
