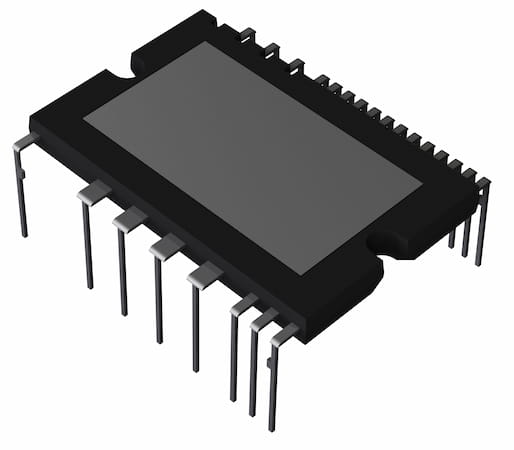

BM63963 Series

600V IGBT Intelligent Power Module (IPM) for high speed switching drive

Catalog

600V IGBT Intelligent Power Module (IPM) for high speed switching drive

Part	Voltage - Isolation	Mounting Type	Voltage	Configuration	Type	Current	Package / Case
Rohm Semiconductor BM63963S-VC	1500 VAC	Through Hole	600 V	3 Phase Inverter	IGBT	10 A
Rohm Semiconductor BM63963S-VA	1500 VAC	Through Hole	600 V	3 Phase Inverter	IGBT	10 A	25-PowerDIP Module (1.134" 28.80mm)

Catalog

600V IGBT Intelligent Power Module (IPM) for high speed switching drive

Description

BM63963S-VC is an Intelligent Power Module composed of gate drivers, bootstrap diodes, IGBTs, fly wheel diodes. Small switching loss IGBTs optimized for high speed switching drive such as a washing machine or a fan motor is adopted.
