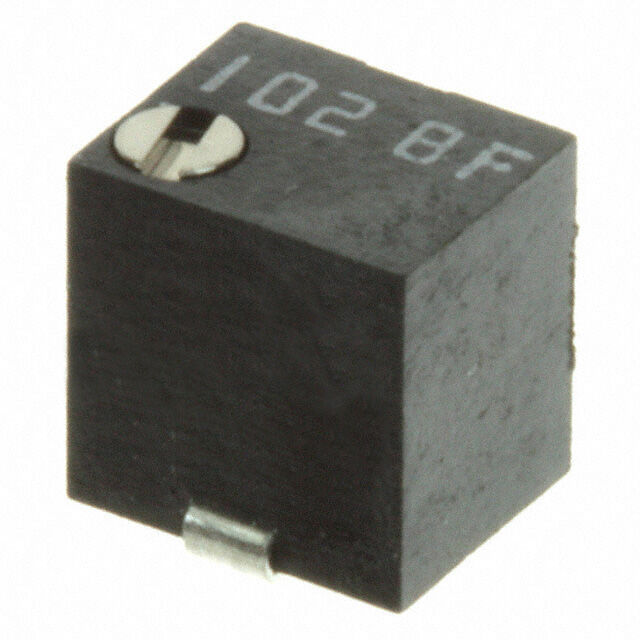

SM-3 Series
Manufacturer: Nidec Components Corporation
Beta
⌘K
TRIMMER RESISTORS - SMD 200 W 3MM SMD MULTI TURN J-LEAD, TOP ADJ., 5 TURN
| Part | Tolerance | Temperature Coefficient | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension | Size / Dimension [y] | Size / Dimension [x] | Resistive Material | Adjustment Type | Power (Watts) | Power (Watts) | Resistance | Number of Turns | Termination Style | Mounting Type | Size / Dimension [x] | Size / Dimension [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Nidec Components Corporation | 20 % | 100 ppm/°C | 0.154 " | 3.2 mm | Rectangular - Face | 0.126 in | 3.9 mm | Cermet | Top Adjustment | 0.125 W | 0.125 W | 200 Ohms | 5 | J Lead | Surface Mount | ||
 Nidec Components Corporation | 20 % | 100 ppm/°C | 0.154 in | 0.154 in | Cermet | Side Adjustment | 0.125 W | 0.125 W | 1 MOhms | 11 | Gull Wing | Surface Mount | 3.9 mm | 3.9 mm | |||
Nidec Components Corporation | 20 % | 100 ppm/°C | 0.154 in | 0.173 in | Cermet | Side Adjustment | 0.125 W | 0.125 W | 50000 Ohms | 5 | Gull Wing | Surface Mount | 4.4 mm | 3.9 mm | |||
Nidec Components Corporation | 20 % | 100 ppm/°C | 0.154 in | 0.154 in | Cermet | Side Adjustment | 0.125 W | 0.125 W | 100 Ohms | 11 | J Lead | Surface Mount | 3.9 mm | 3.9 mm | |||
 Nidec Components Corporation | 20 % | 100 ppm/°C | 0.154 in | 0.173 in | Cermet | Side Adjustment | 0.125 W | 0.125 W | 1 MOhms | 5 | J Lead | Surface Mount | 4.4 mm | 3.9 mm | |||
 Nidec Components Corporation | 20 % | 100 ppm/°C | 0.154 " | 3.2 mm | Rectangular - Face | 0.126 in | 3.9 mm | Cermet | Top Adjustment | 0.125 W | 0.125 W | 0.5 kOhms | 5 | J Lead | Surface Mount | ||
 Nidec Components Corporation | 20 % | 100 ppm/°C | 0.154 " | 3.2 mm | Rectangular - Face | 0.126 in | 3.9 mm | Cermet | Top Adjustment | 0.125 W | 0.125 W | 200000 Ohms | 5 | J Lead | Surface Mount | ||
Nidec Components Corporation | 20 % | 100 ppm/°C | 0.154 in | 0.154 in | Cermet | Side Adjustment | 0.125 W | 0.125 W | 50 Ohms | 11 | Gull Wing | Surface Mount | 3.9 mm | 3.9 mm | |||
Nidec Components Corporation | 20 % | 100 ppm/°C | 0.154 in | 0.154 in | Cermet | Side Adjustment | 0.125 W | 0.125 W | 200000 Ohms | 11 | Gull Wing | Surface Mount | 3.9 mm | 3.9 mm | |||
Nidec Components Corporation | 20 % | 100 ppm/°C | 0.154 in | 0.173 in | Cermet | Side Adjustment | 0.125 W | 0.125 W | 100 Ohms | 5 | J Lead | Surface Mount | 4.4 mm | 3.9 mm |
