VO4158 Series

Catalog

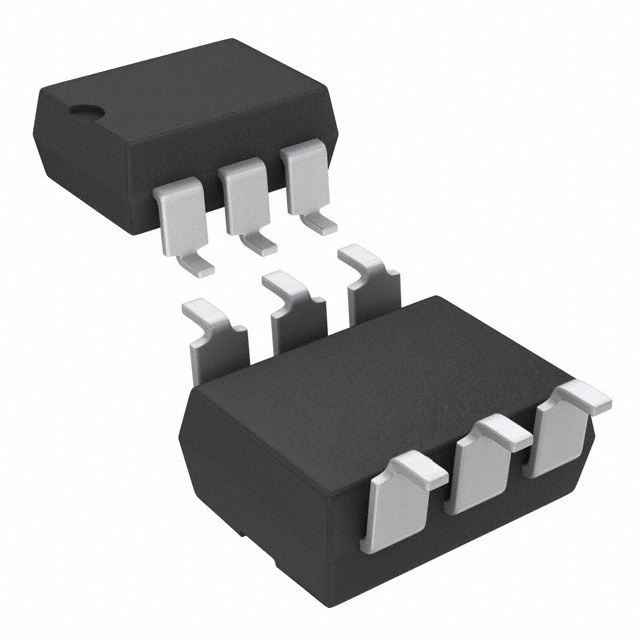

OPTOISOLATOR 5.3KV TRIAC 6SMD

Part	Approval Agency	Current - On State (It (RMS)) (Max) [Max]	Voltage - Isolation [custom]	Current - DC Forward (If) (Max) [Max]	Supplier Device Package	Package / Case	Current - Hold (Ih)	Static dV/dt (Min) [Min]	Number of Channels [custom]	Current - LED Trigger (Ift) (Max) [Max]	Output Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Off State	Mounting Type
Vishay Semiconductor Opto Division VO4158D-X007T	cUR FIMKO UR	300 mA	5300 Vrms	60 mA	6-SMD	6-SMD Gull Wing	500 µA	5 kV/µs	1	1.6 mA	Triac	100 °C	-55 C	800 V	Surface Mount
Vishay Semiconductor Opto Division VO4158M-X007T	cUR FIMKO UR	300 mA	5300 Vrms	60 mA	6-SMD	6-SMD Gull Wing	500 µA	5 kV/µs	1	3 mA	Triac	100 °C	-55 C	800 V	Surface Mount
Vishay Semiconductor Opto Division VO4158H-X017T	cUR FIMKO UR VDE	300 mA	5300 Vrms	60 mA	6-SMD	6-SMD Gull Wing	500 µA	5 kV/µs	1	2 mA	Triac	100 °C	-55 C	800 V	Surface Mount
Vishay Semiconductor Opto Division VO4158H	cUR FIMKO UR	300 mA	5300 Vrms	60 mA	6-DIP	6-DIP (0.300" 7.62mm)	500 µA	5 kV/µs	1	2 mA	Triac	100 °C	-55 C	800 V	Through Hole
Vishay Semiconductor Opto Division VO4158D-X009T	cUR UR	300 mA	5300 Vrms	60 mA	6-SMD	6-SMD Gull Wing	500 µA	5 kV/µs	1	1.6 mA	Triac	100 °C	-55 C	800 V	Surface Mount
Vishay Semiconductor Opto Division VO4158D	cUR FIMKO UR	300 mA	5300 Vrms	60 mA	6-DIP	6-DIP (0.300" 7.62mm)	500 µA	5 kV/µs	1	1.6 mA	Triac	100 °C	-55 C	800 V	Through Hole
